Downlight/spot/floodlight RS155B LED 94101499
Source photo:
Signify PLS
(fig. might be different or similar)

Downlight/spot/floodlight RS155B LED 94101499

EAN/GTIN: 8719514941014
WEEE: DE 57797264
Manufacturer: Signify PLS
Manufacturer no.: RS155B LED #94101499
Manufact.-SKU: 94101499
Customs tariff no.: 94051190
Similar top items: Show now & compare
51,05 EUR Price incl. tax. 19,00%
plus shipping
Delivery time:
11 days [EN] Items to be procured that can be ordered (no central warehouse item) - live request to the central warehouse directly in the cart or click the link below the price >Quantity available?<
pce

We always deliver the latest available article version.

Note:
The installation of electrical devices may only be carried out by an approved electrician and, in the case of high-voltage systems (> = 400V and country-specific nominal power), only with the consent of the respective electricity network operator.

Details

Accessory
bought
Useful
Interesting

Suitable for wall mounting no, Suitable for recessed mounting yes, Suitable for surface mounting no, Suitable for pendulum suspension no, Suitable for ceiling mounting yes, Suitable for truss mounting no, Suitable for pedestal / floor mounting no, Suitable for track mounting no, Suitable for clamp mounting no, Suitable for rope system no, Adjustability not adjustable, With motion detector no, With light sensor no, Lamp LED interchangeable, With bulbs yes, Suitable for number of lamps 1, Version other, Material of the housing Aluminum, Surface protection powder-coated, Housing Color Aluminum, Material of the cover Textured plastic, Surface brushed no, Voltage AC, Nominal voltage 220..240 V, LED rated current at constant current 232,75..257,25 mA, Control gear LED operating device current-controlled, With operating device yes, Replaceable operating device yes, Dimming dependent on control gear no, Dimming 0-10 V no, Dimming 1-10 V no, Dimming DALI-2 no, Dimming DALI no, Dimming DMX no, Dimming DSI no, Dimming potentiometer (integrated in device) no, GPRS dimming no, Dimming LineSwitch no, Dimming manufacturer-specific no, Dimming Mains voltage modulation no, Dimming Phase section yes, Dimming Phase control yes, Programmable dimming no, Dimming RF no, Dimming Sine Wave Reduction no, Dimming Touch and Dim no, Dimming Zigbee no, Dimming with push-button no, Without dimming function no, Reflector without, light distributor focus lens, Light distribution symmetrical, Beam angle medium-emitting 21-40°, Light output directly, Distortion factor (THD) 35, Rated service life L70/B50 at 25 °C 50000 h, Constant luminous flux control no, IP protection) IP20, Impact resistance IK03, Protection class II, Suitable for lamp power 8.3 W, Max. System performance 10.2 W, Light color white, Color temperature 3000K, Color rendering index CRI 80-89, Luminous flux 720 lm, Rated luminous flux according to IEC 62722-2-1 1000 lm, Power factor 0.9, Flicker value Pst LM 1, Colour temperature adjustable no, Light current adjustable no, Beam angle adjustable no, Stroboscopic effect value SVM 2,9..4 A, Height / depth 62 mm, Outer diameter 85 mm, Installation height / depth 67 mm, Installation diameter 68..72 mm, Type of wiring graduation, Number of poles 2, Cross section 0.75 mm², Connectable conductor cross-section 0.75..2.5 mm², Connection Plug-in terminal, Integrated emergency power supply no, luminous efficacy 98 lm/W, Photobiological safety according to EN 62471 RG1, IFTTT support available no, Colour consistency (McAdam ellipse) SDCM5, Glare reduction (UGR) 30, Compatible with Apple HomeKit no, Compatible with Google Assistant no, Compatible with Amazon Alexa no

More product images:

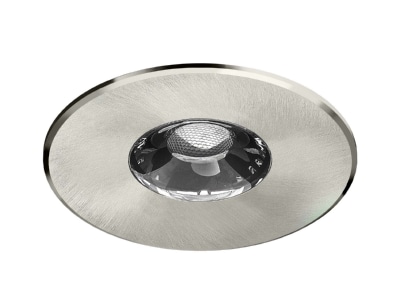

Product image Signify PLS RS155B LED  94101499 Downlight spot floodlight RS155B LED 94101499
Product image

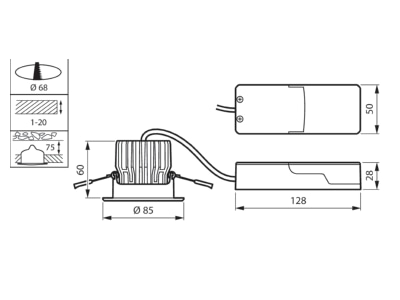

Dimensional drawing Signify PLS RS155B LED  94101499 Downlight spot floodlight RS155B LED 94101499
Dimensional drawing
