Ceiling-/wall luminaire RC534B LED 97200100
Source photo:
Signify PLS
(fig. might be different or similar)

Ceiling-/wall luminaire RC534B LED 97200100

EAN/GTIN: 8719514972001
WEEE: DE 57797264
Manufacturer: Signify PLS
Manufacturer no.: RC534B LED #97200100
Manufact.-SKU: 97200100
Customs tariff no.: 94051190
Similar top items: Show now & compare
309,88 EUR Price incl. tax. 19,00%
plus shipping
Delivery time:
11 days [EN] Items to be procured that can be ordered (no central warehouse item) - live request to the central warehouse directly in the cart or click the link below the price >Quantity available?<
Delivery takes place day-exactly. Article is very heavy and/or bulky! Article is >31kg and/or bulky | Package > 1.2m x 0.6m x 0.6m
pce

We always deliver the latest available article version.

Note:
The installation of electrical devices may only be carried out by an approved electrician and, in the case of high-voltage systems (> = 400V and country-specific nominal power), only with the consent of the respective electricity network operator.

Details

bought
Useful
Interesting

LED luminaire 940, DALI RC534B LED #97200100 Energy efficiency class of the light source according to EU Regulation 2019/2015 not relevant, Suitable for ceiling mounting, Suitable for recessed mounting, Suitable for computer workstations according to EN 12464-1, Suitable for number of lamps 5, Socket other, Housing material steel , Surface protection housing powder-coated, housing color white, material of the cover plastic transparent, design of the grid other, voltage type AC, nominal voltage 220 ... 240V, nominal current 137 ... 137mA, control gear LED control gear current-controlled, with control gear, replaceable control gear, dimming DALI -2, dimming DALI, light distributor diffuser lens/optics/panel, light distribution asymmetrical, beam angle extremely wide beam >80°, color consistency (McAdam ellipse) SDCM3, light emission direct, luminous flux decrease at average. Service life 50,000 h at 25 °C ambient temperature. 90%, failure rate at average Service life of 50,000 h at 25 °C ambient temperature. (tq) 10%, Max. number of luminaires circuit breaker B16 21, Max. number of luminaires circuit breaker C16 35, protection class (IP) IP20, impact resistance IK02, protection class I, rated ambient temperature according to IEC62722-2-1 10 ... 40°C , The luminaire can be covered with thermal insulation material, glow wire test according to IEC 60695-2-11 650 °C - 30 s, max. system power 32.5W, luminaire luminous efficacy 132lm/W, rated luminous flux according to IEC 62722-2-1 4300lm, light color white, color temperature 4000 ... 4000K, flicker value Pst LM 1, color rendering index CRI 90-100, power factor 0.9, strobe effect value SVM 0.4, width 75mm, height/depth 136mm, length 1432mm, installation length 1410mm, installation width 55mm, installation height/depth 136mm, Type of wiring termination, number of poles 5, conductor cross section 0.5mm², connection type other, distortion factor (THD) 20, photobiological safety according to EN 62471 RG1, glare limitation (UGR) 0, color temperature adjustable no, luminous flux adjustable continuously, beam angle adjustable no, LED bulb not interchangeable, with bulbs, architects need a lighting solution to match the interior design of the building they are working on. You want a lighting product line with an elegant design and high luminous intensity. Planners need luminaires that can save energy, but at the same time achieve the right light intensity in line with office lighting standards. TrueLine recessed lights can meet both requirements. TrueLine is also available as a suspended version.

More product images:

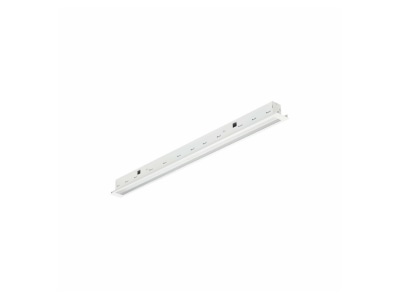

Product image Signify PLS RC534B LED  97200100 Ceiling  wall luminaire RC534B LED 97200100
Product image

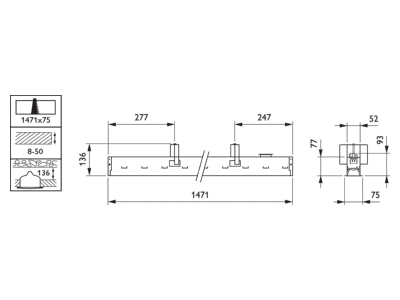

Dimensional drawing Signify PLS RC534B LED  97200100 Ceiling  wall luminaire RC534B LED 97200100
Dimensional drawing
