Safety switch 6-p 9,5kW 3LD2165-4VD51

EAN/GTIN: 4011209493186
WEEE: DE 23691322
Manufacturer: SIEMENS
Manufacturer no.: 3LD2165-4VD51
Manufact.-SKU: 3LD21654VD51
Customs tariff no.: 85365080
Similar top items: Show now & compare
85,74 EUR Price incl. tax. 19,00%
plus shipping
Delivery time:
1 days [EN] 24 hour delivery, click here for more infoCentral warehouse item (regularly available) - live request to the central warehouse directly in the cart or click the link below the price >Quantity available?<
pce

We always deliver the latest available article version.

Note:
The installation of electrical devices may only be carried out by an approved electrician and, in the case of high-voltage systems (> = 400V and country-specific nominal power), only with the consent of the respective electricity network operator.

Details

Accessory
bought
Useful
Interesting

Version as main switch=yes, Version as maintenance-/service switch=yes, Version as safety switch=yes, Version as emergency stop installation=no, Version as reversing switch=no, Number of switches=1, Max. rated operation voltage Ue AC=690 V, Rated permanent current Iu=25 A, Rated permanent current at AC-23, 400 V=20 A, Rated permanent current at AC-21, 400 V=25 A, Rated operation power at AC-3, 400 V=7,5 kW, Rated short-time withstand current lcw=0,64 kA, Rated operation power at AC-23, 400 V=9,5 kW, Number of poles=6, Number of auxiliary contacts as normally closed contact=1, Number of auxiliary contacts as normally open contact=1, Motor drive optional=no, Motor drive integrated=no, Voltage release optional=no, Device construction=Built-in device fixed built-in technique, Suitable for floor mounting=no, Suitable for front mounting 4-hole=no, Suitable for front mounting centre=yes, Suitable for distribution board installation=no, Suitable for intermediate mounting=no, Colour control element=Black, Type of control element=Short thumb-grip, Interlockable=yes, Type of electrical connection of main circuit=Frame clamp, Degree of protection (IP), front side=IP65, Degree of protection (NEMA)=Other

More product images:

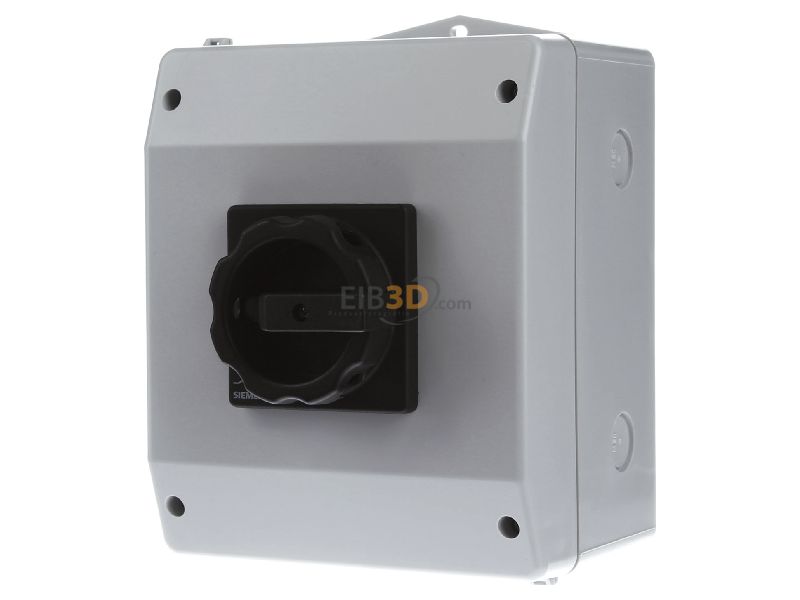

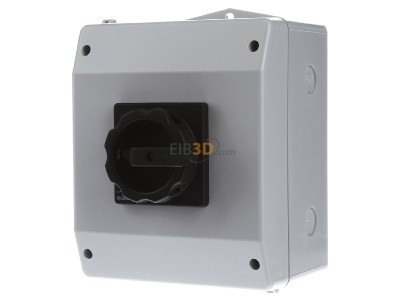

Front view Siemens 3LD2165-4VD51 Safety switch 6-p 9,5kW
Front view

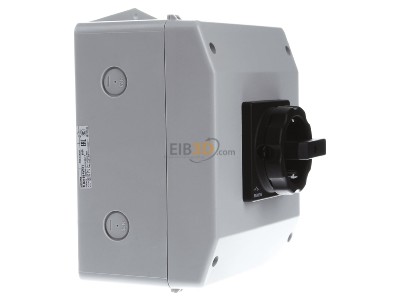

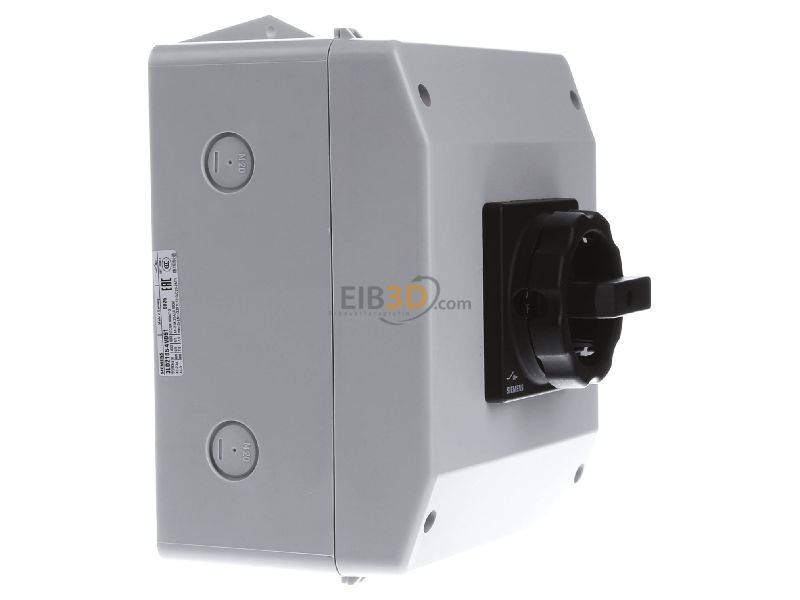

View on the left Siemens 3LD2165-4VD51 Safety switch 6-p 9,5kW
View on the left

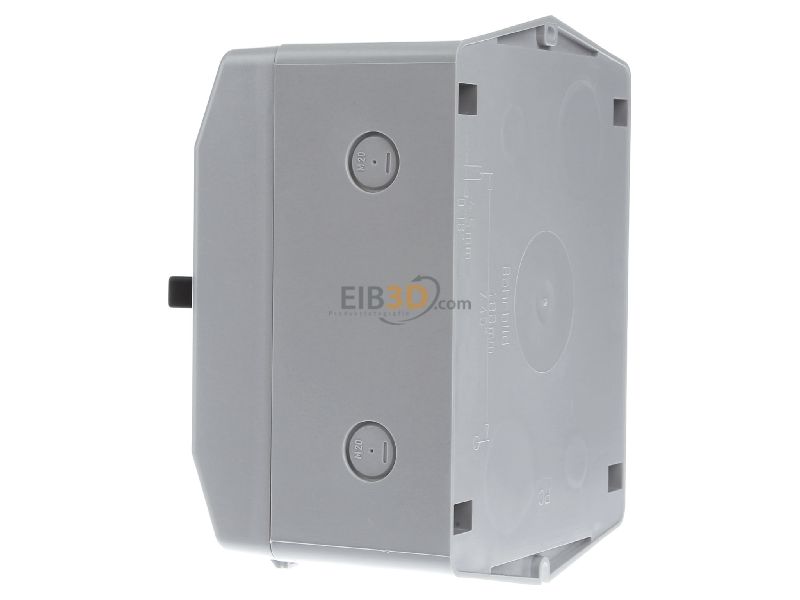

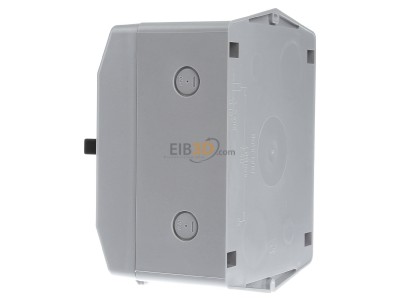

View on the right Siemens 3LD2165-4VD51 Safety switch 6-p 9,5kW
View on the right

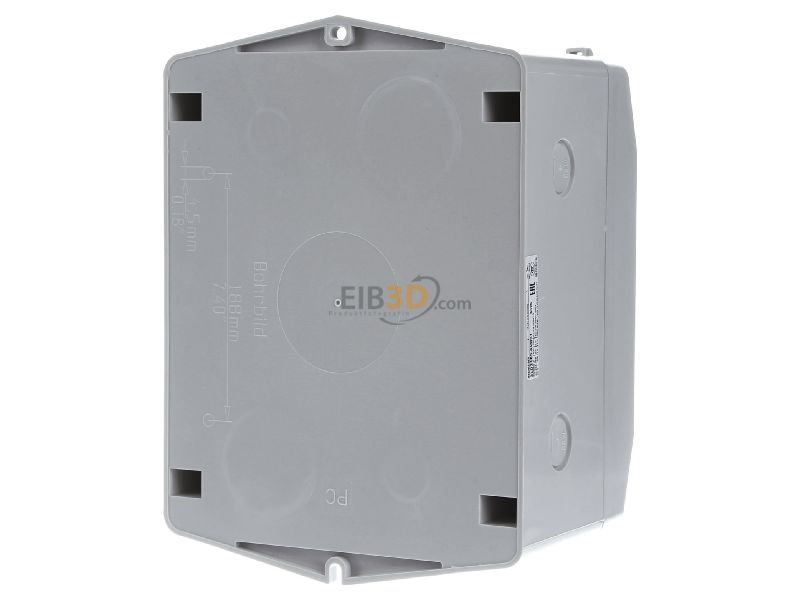

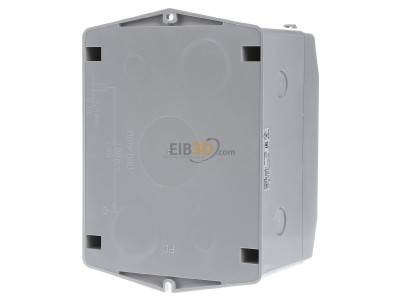

Back view Siemens 3LD2165-4VD51 Safety switch 6-p 9,5kW
Back view

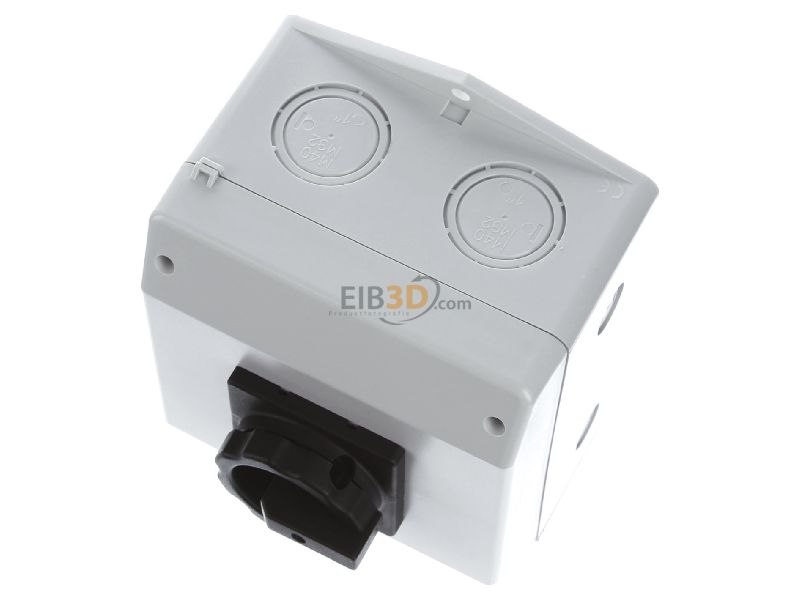

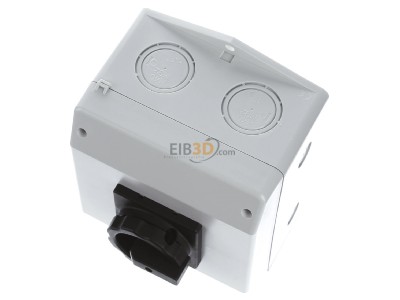

View up front Siemens 3LD2165-4VD51 Safety switch 6-p 9,5kW
View up front

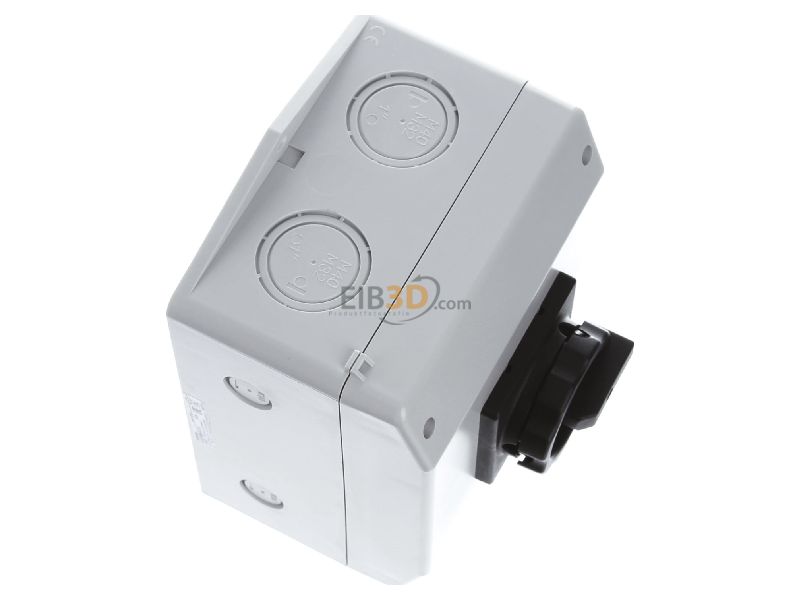

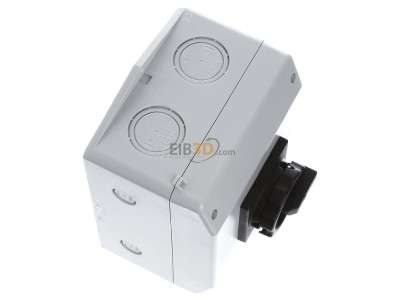

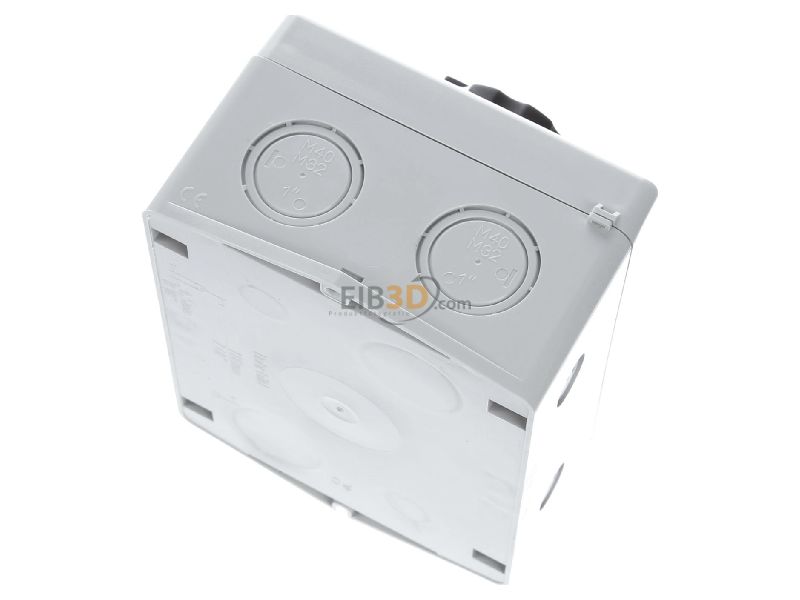

View top left Siemens 3LD2165-4VD51 Safety switch 6-p 9,5kW
View top left

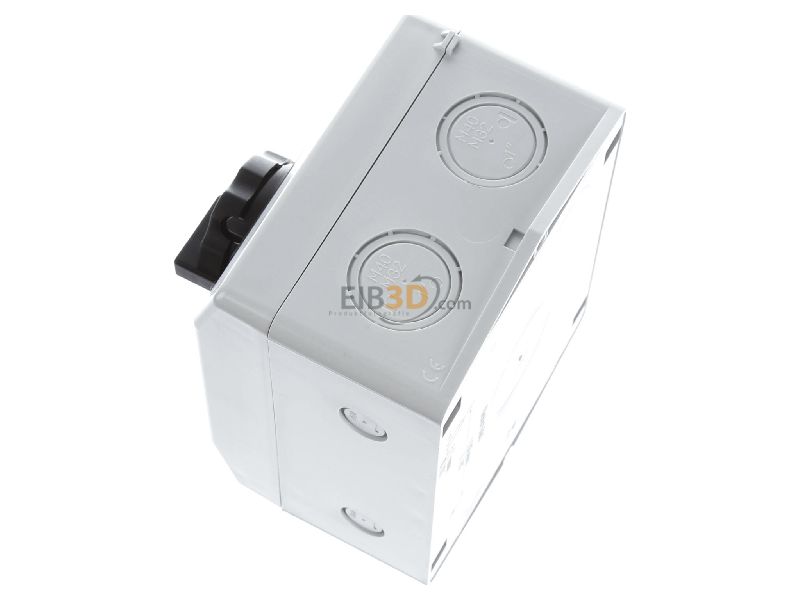

View top right Siemens 3LD2165-4VD51 Safety switch 6-p 9,5kW
View top right
Top rear view Siemens 3LD2165-4VD51 Safety switch 6-p 9,5kW
Top rear view
