Phase monitoring relay 90...400V 3UG4816-1AA40
Source photo:
SIEMENS
(fig. might be different or similar)

Phase monitoring relay 90...400V 3UG4816-1AA40

EAN/GTIN: 4011209895782
WEEE: DE 23691322
Manufacturer: SIEMENS
Manufacturer no.: 3UG4816-1AA40
Customs tariff no.: 85364900
Similar top items: Show now & compare
235,50 EUR Price incl. tax. 19,00%
plus shipping
Delivery time:
11 days [EN] Items to be procured that can be ordered (no central warehouse item) - live request to the central warehouse directly in the cart or click the link below the price >Quantity available?<
pce

We always deliver the latest available article version.

Note:
The installation of electrical devices may only be carried out by an approved electrician and, in the case of high-voltage systems (> = 400V and country-specific nominal power), only with the consent of the respective electricity network operator.

Details

Accessory
bought
Useful
Interesting

Phase monitoring relay 90...400V Type of electric connection Screw connection, With detachable clamps, Rated control supply voltage Us at AC 50HZ 0V, Rated control supply voltage Us at AC 60HZ 0V, Rated control supply voltage Us at DC 24 ... 24V, Voltage type for actuating DC, Phase sequence monitoring, Phase failure detection, Function under voltage detection, Function over voltage detection, Phase imbalance monitoring, Voltage measurement range 90 ... 400V, Min. adjustable delay-on energization time 0s, Max. permitted delay-on energization time 999,9s, Min. adjustable off-delay time 0s, Max. permitted off-delay time 999,9s, Number of contacts as normally closed contact 0, Number of contacts as normally open contact 0, Number of contacts as change-over contact 1, Width 22,5mm, Height 102mm, Depth 91mm

More product images:

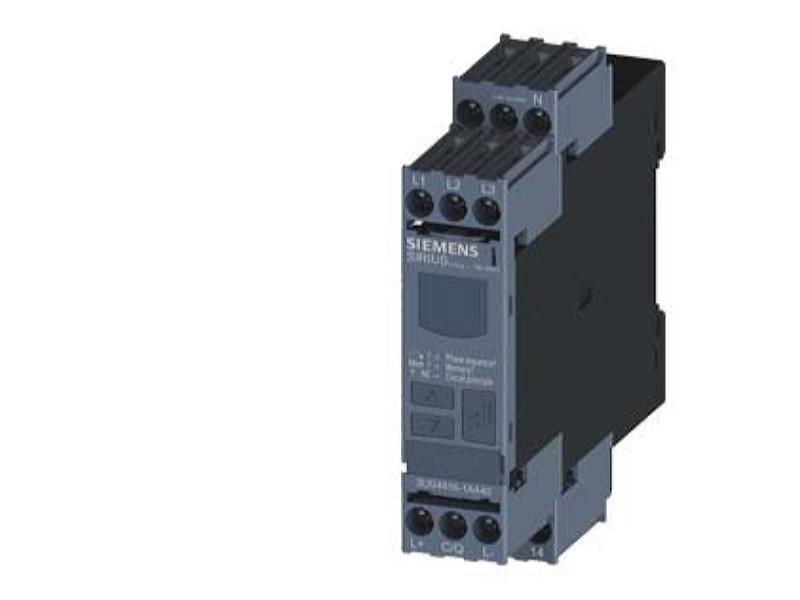

Product image 1 Siemens 3UG4816 1AA40 Phase monitoring relay 90   400V
Product image 1

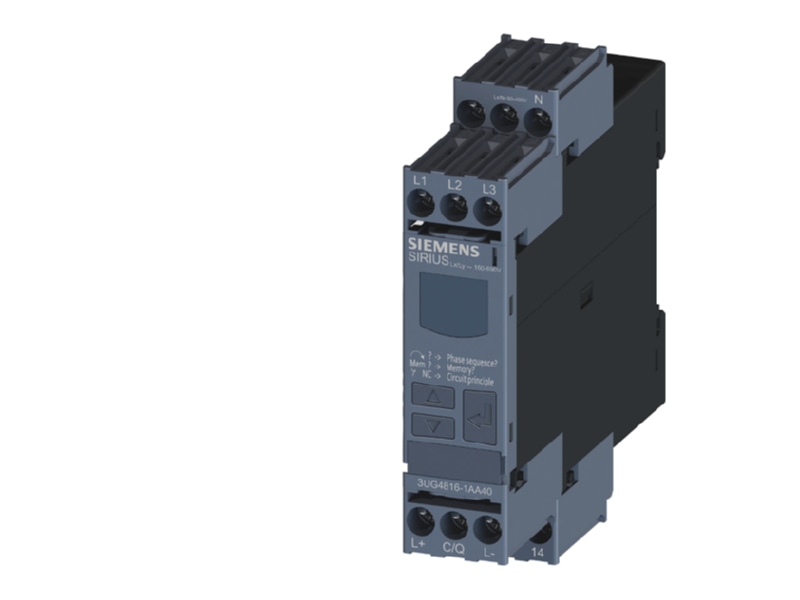

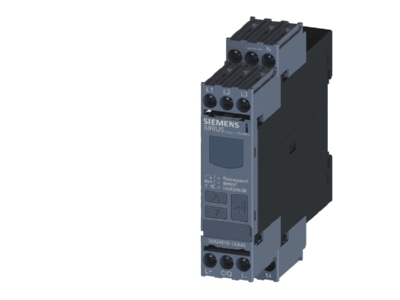

Product image 2 Siemens 3UG4816 1AA40 Phase monitoring relay 90   400V
Product image 2
