One-phase transformer 725V/230V 160VA 4AM3842-5MT10-0FA0
Source photo:
SIEMENS
(fig. might be different or similar)

One-phase transformer 725V/230V 160VA 4AM3842-5MT10-0FA0

EAN/GTIN: 4001869905624
WEEE: DE 23691322
Manufacturer: SIEMENS
Manufacturer no.: 4AM3842-5MT10-0FA0
Manufact.-SKU: 4AM38425MT100FA0
Customs tariff no.: 85043180
Similar top items: Show now & compare
148,54 EUR Price incl. tax. 19,00%
plus shipping
Delivery time:
11 days [EN] Items to be procured that can be ordered (no central warehouse item) - live request to the central warehouse directly in the cart or click the link below the price >Quantity available?<
pce

We always deliver the latest available article version.

Note:
The installation of electrical devices may only be carried out by an approved electrician and, in the case of high-voltage systems (> = 400V and country-specific nominal power), only with the consent of the respective electricity network operator.

Details

Accessory
bought
Useful
Interesting

Built as safety transformer=no, Built as isolating transformer=no, Built as energy saving transformer=no, Primary voltage 1=725 V, Primary voltage 2=690 V, Primary voltage 3=655 V, Primary voltage 5=0 V, Primary voltage 6=0 V, Primary voltage 7=0 V, Primary voltage 8=0 V, Primary voltage 9=0 V, Primary voltage 10=0 V, Secondary voltage 1=230 V, Secondary voltage 4=0 V, Secondary voltage 5=0 V, Secondary voltage 6=0 V, Secondary voltage 7=0 V, Secondary voltage 8=0 V, Secondary voltage 9=0 V, Secondary voltage 10=0 V, Rated apparent power=160 VA, Type of insulation material according to IEC 85=B, Short-circuit-proof=no, Relative short circuit voltage=8 %, Width=98 mm, Height=106 mm, Depth=104 mm, Degree of protection (IP)=IP00, Ring core=no, Suitable for mounting on PCB=no, Modular version=no, Conductor material=Other

More product images:

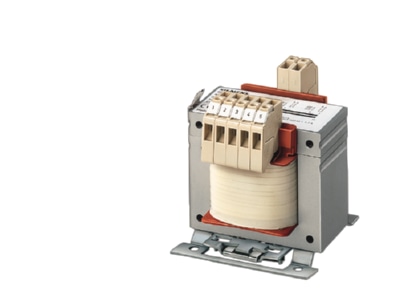

Product image 1 Siemens 4AM3842 5MT10 0FA0 One phase transformer 725V 230V 160VA
Product image 1

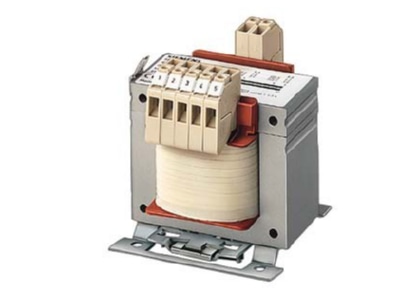

Product image 2 Siemens 4AM3842 5MT10 0FA0 One phase transformer 725V 230V 160VA
Product image 2
