Miniature circuit breaker 1-p C63A 5SY4163-7

EAN/GTIN: 4001869181455
WEEE: DE 23691322
Manufacturer: SIEMENS
Manufacturer no.: 5SY4163-7
Manufact.-SKU: 5SY41637
Customs tariff no.: 85362010
Similar top items: Show now & compare
44,79 EUR Price incl. tax. 19,00%
plus shipping
Delivery time:
11 days [EN] Items to be procured that can be ordered (no central warehouse item) - live request to the central warehouse directly in the cart or click the link below the price >Quantity available?<
pce

We always deliver the latest available article version.

Note:
The installation of electrical devices may only be carried out by an approved electrician and, in the case of high-voltage systems (> = 400V and country-specific nominal power), only with the consent of the respective electricity network operator.

Details

Accessory
bought
Useful
Interesting

Built-in depth=70 mm, Release characteristic=C, Number of poles (total)=1, Number of protected poles=1, Rated current=63 A, Rated voltage=400 V, Rated insulation voltage Ui=440 V, Rated impulse withstand voltage Uimp=4 kV, Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V=10 kA, Voltage type=AC, Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V=10 kA, Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V=15 kA, Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V=15 kA, Frequency=50 Hz, Current limiting class=3, Flush-mounted installation=no, Concurrently switching neutral conductor=no, Over voltage category=3, Pollution degree=3, Additional equipment possible=yes, Width in number of modular spacings=1, Degree of protection (IP)=IP20, Ambient temperature during operating=-40..70 °C, Connectable conductor cross section multi-wired=0,75..35 mm², Connectable conductor cross section solid-core=0,75..35 mm²

More product images:

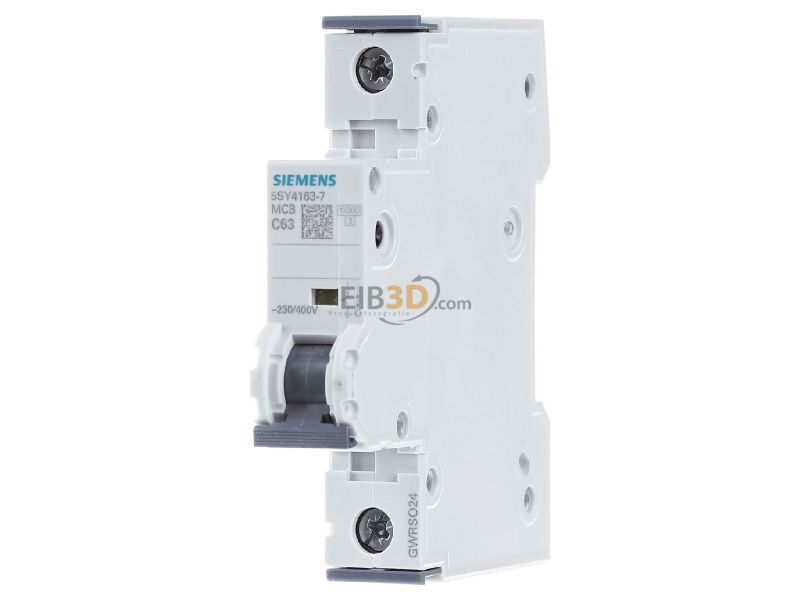

Front view Siemens 5SY4163-7 Miniature circuit breaker 1-p C63A
Front view

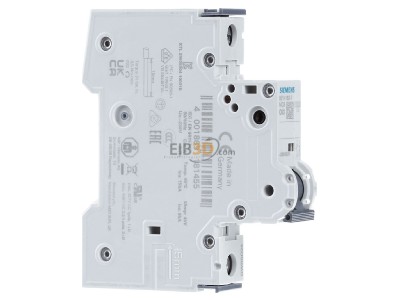

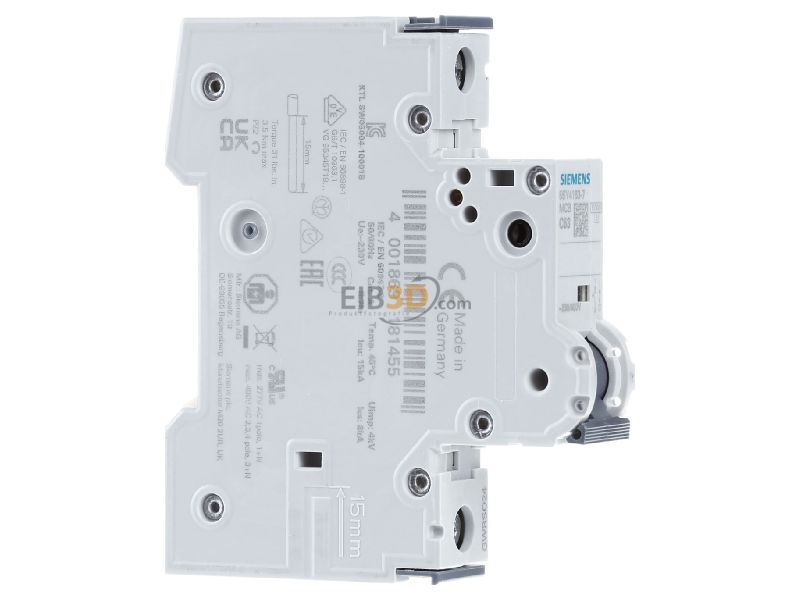

View on the left Siemens 5SY4163-7 Miniature circuit breaker 1-p C63A
View on the left

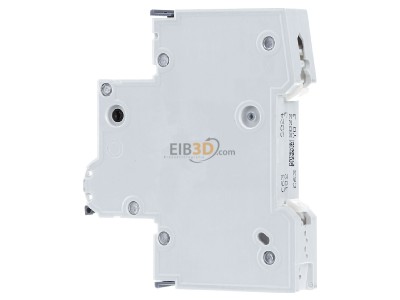

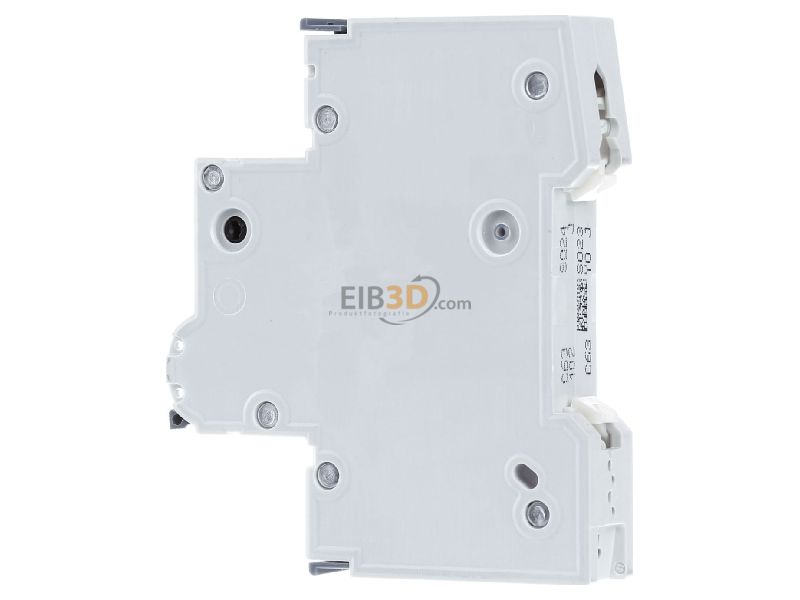

View on the right Siemens 5SY4163-7 Miniature circuit breaker 1-p C63A
View on the right

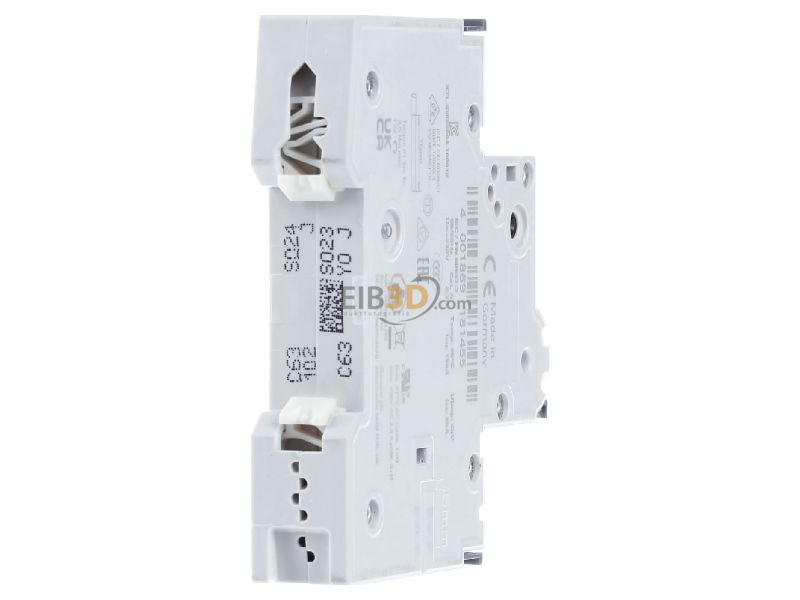

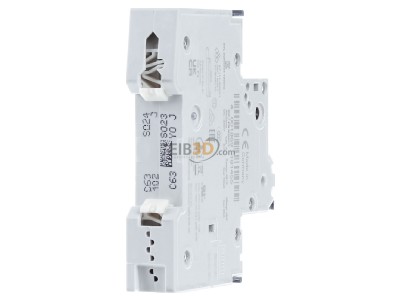

Back view Siemens 5SY4163-7 Miniature circuit breaker 1-p C63A
Back view

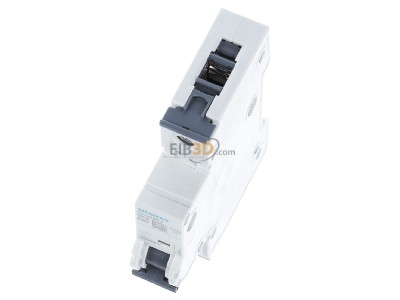

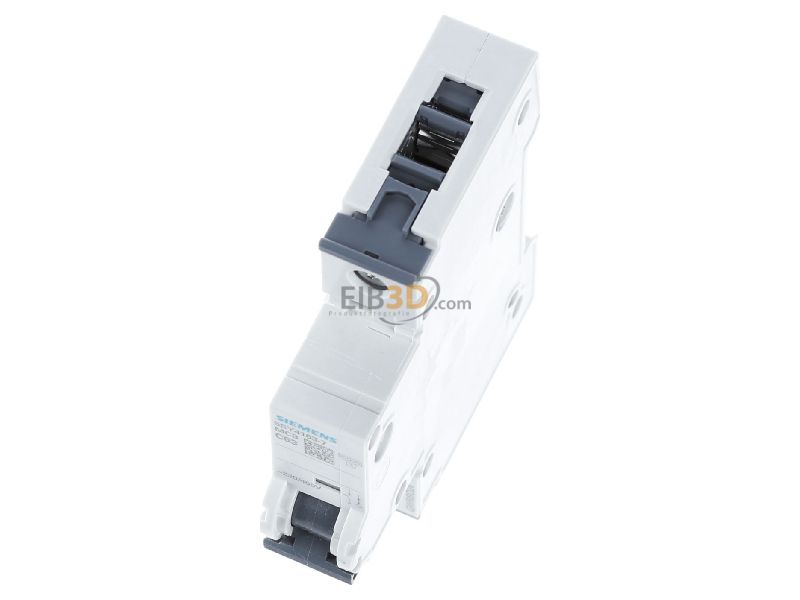

View up front Siemens 5SY4163-7 Miniature circuit breaker 1-p C63A
View up front

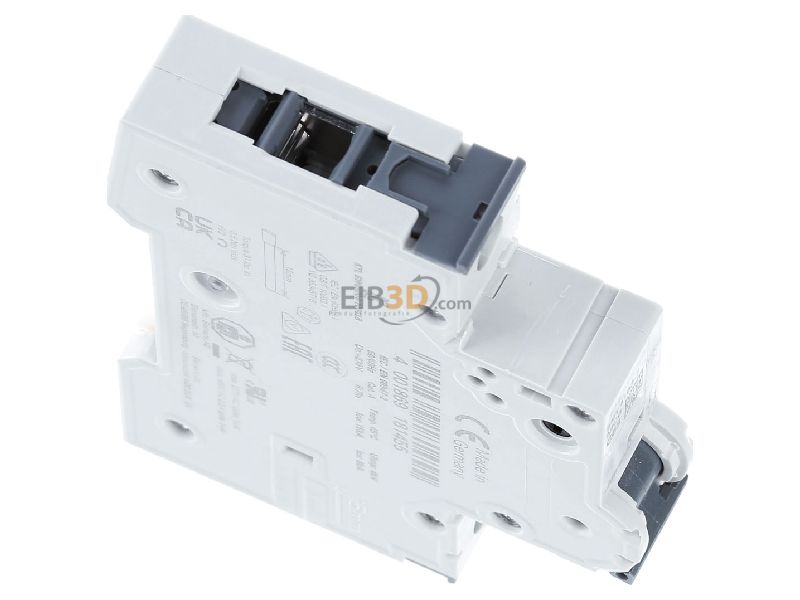

View top left Siemens 5SY4163-7 Miniature circuit breaker 1-p C63A
View top left

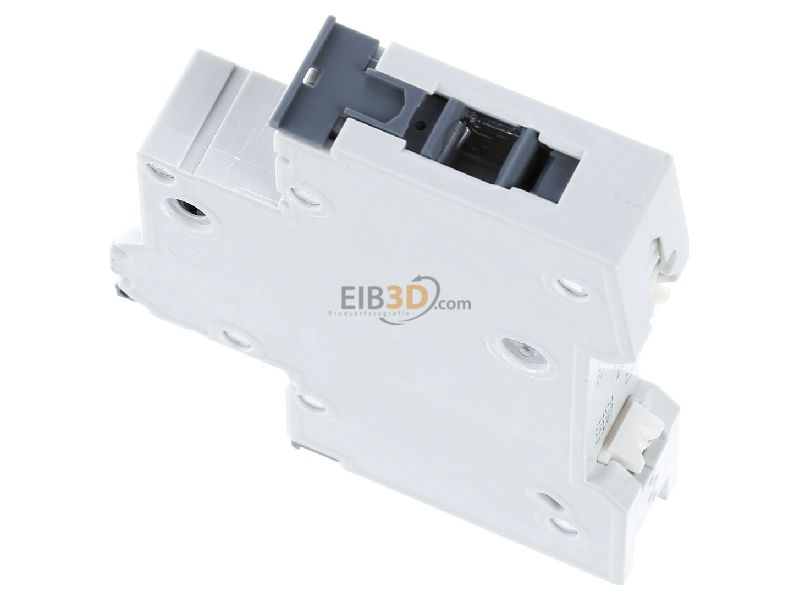

View top right Siemens 5SY4163-7 Miniature circuit breaker 1-p C63A
View top right

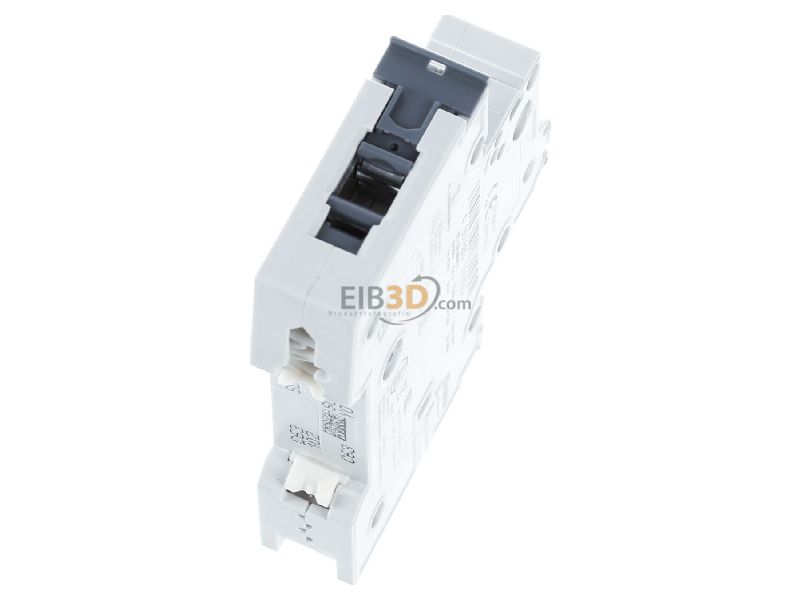

Top rear view Siemens 5SY4163-7 Miniature circuit breaker 1-p C63A
Top rear view
