Fieldbus digital module 4 In / 4 Out 3RG9002-0DA00
Source photo:
SIEMENS
(fig. might be different or similar)

Fieldbus digital module 4 In / 4 Out 3RG9002-0DA00

EAN/GTIN: 4011209217256
WEEE: DE 23691322
Manufacturer: SIEMENS
Manufacturer no.: 3RG9002-0DA00
Manufact.-SKU: 3RG90020DA00
Customs tariff no.: 85371098
Similar top items: Show now & compare
249,19 EUR Price incl. tax. 19,00%
plus shipping
Delivery time:
11 days [EN] Items to be procured that can be ordered (no central warehouse item) - live request to the central warehouse directly in the cart or click the link below the price >Quantity available?<
pce

We always deliver the latest available article version.

Note:
The installation of electrical devices may only be carried out by an approved electrician and, in the case of high-voltage systems (> = 400V and country-specific nominal power), only with the consent of the respective electricity network operator.

Details

Accessory
bought
Useful
Interesting

Supply voltage AC 50 Hz=0 V, Supply voltage AC 60 Hz=0 V, Supply voltage DC=26,5..31,6 V, Voltage type of supply voltage=DC, Number of digital inputs=4, Number of digital outputs=4, Digital inputs configurable=no, Digital outputs configurable=no, Input current at signal 1=5 mA, Type of voltage (input voltage)=DC, Type of digital output=Other, Output current=2 A, Permitted voltage at output=24 V, Type of output voltage=DC, Short-circuit protection, outputs available=yes, With optical interface=no, Supporting protocol for TCP/IP=no, Supporting protocol for PROFIBUS=no, Supporting protocol for CAN=no, Supporting protocol for INTERBUS=no, Supporting protocol for ASI=yes, Supporting protocol for KNX=no, Supporting protocol for MODBUS=no, Supporting protocol for Data-Highway=no, Supporting protocol for DeviceNet=no, Supporting protocol for SUCONET=no, Supporting protocol for LON=no, Supporting protocol for PROFINET IO=no, Supporting protocol for PROFINET CBA=no, Supporting protocol for SERCOS=no, Supporting protocol for Foundation Fieldbus=no, Supporting protocol for EtherNet/IP=no, Supporting protocol for AS-Interface Safety at Work=no, Supporting protocol for DeviceNet Safety=no, Supporting protocol for INTERBUS-Safety=no, Supporting protocol for PROFIsafe=no, Supporting protocol for SafetyBUS p=no, Supporting protocol for other bus systems=no, Radio standard Bluetooth=no, Radio standard Wi-Fi 802.11=no, Radio standard GPRS=no, Radio standard GSM=no, Radio standard UMTS=no, IO link master=no, System accessory=yes, Degree of protection (IP)=IP20, Type of electric connection=Screw connection, Fieldbus connection over separate bus coupler possible=no, Rail mounting possible=no, Wall mounting/direct mounting=no, Front built-in possible=no, Rack-assembly possible=no, Suitable for safety functions=no, Appendant operation agent (Ex ia)=no, Appendant operation agent (Ex ib)=no, Explosion safety category for gas=None, Explosion safety category for dust=None, Width=90 mm, Height=75 mm, Depth=37 mm

More product images:

Product image 1 Siemens 3RG9002 0DA00 Fieldbus digital module 4 In   4 Out
Product image 1

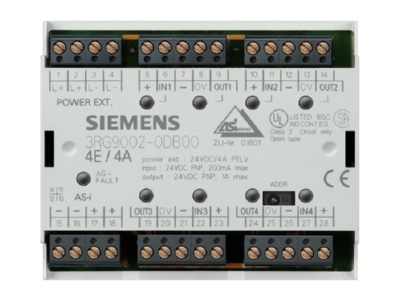

Product image 2 Siemens 3RG9002 0DA00 Fieldbus digital module 4 In   4 Out
Product image 2
