Fieldbus basic device DC19,2...28,8V 6ES7510-1DK03-0AB0
Source photo:
SIEMENS
(fig. might be different or similar)

Fieldbus basic device DC19,2...28,8V 6ES7510-1DK03-0AB0

EAN/GTIN: 4047623412717
WEEE: DE 23691322
Manufacturer: SIEMENS
Manufacturer no.: 6ES7510-1DK03-0AB0
Customs tariff no.: 85371091
Similar top items: Show now & compare
854,25 EUR Price incl. tax. 19,00%
plus shipping
Delivery time:
11 days [EN] Items to be procured that can be ordered (no central warehouse item) - live request to the central warehouse directly in the cart or click the link below the price >Quantity available?<
pce

We always deliver the latest available article version.

Note:
The installation of electrical devices may only be carried out by an approved electrician and, in the case of high-voltage systems (> = 400V and country-specific nominal power), only with the consent of the respective electricity network operator.

Details

Accessory
bought
Useful
Interesting

SIMATIC central module 200KB working memory + 1MB 6ES7510-1DK03-0AB0 input voltage at DC 19.2 ... 28.8V, type of input voltage DC, max. input current at DC 0.7A, number of HW interfaces Industrial Ethernet 1, number of Interfaces PROFINET 1, number of HW interfaces serial RS-232 0, number of HW interfaces serial RS-422 0, number of HW interfaces serial RS-485 1, number of HW interfaces serial TTY 0, number of HW Interfaces USB 0, Number of HW interfaces in parallel 0, Number of HW interfaces Wireless 0, Number of HW interfaces other 0, Supports protocol for TCP/IP, Supports protocol for PROFIBUS, Supports protocol for ASI, Supports protocol for MODBUS, Supports protocol for PROFINET IO, system component, degree of protection (IP) IP20, number of slots 80, with pluggable modules, digital I/O, with pluggable modules, analog I/O, with pluggable modules, communication modules, with pluggable modules, functional and .Technology modules, With pluggable modules, Central modules, With pluggable modules, others, Design of the electrical connection screw/spring-loaded connection, Fieldbus connection possible via separate bus coupler, With bus coupler for modular station structure, DIN rail mounting possible, Wall/direct mounting possible, Explosion protection category for gas ATEX gas explosion protection, cat. 3G, explosion protection category for dust without, width 100mm, height 117mm, depth 75mm, SIMATIC DP, CPU 1510SP-1 PN for ET 200SP, central assembly with 200 KB RAM for program and 1 MB for data, 1st interface: PROFINET IRT with 3 port switch, 25 ns bit performance, SIMATIC memory card required, bus adapter required for port 1 and 2 * *** Approvals and certificates according to article 109817615 on support.industry.siemens. com note! **** With SIMATIC ET 200SP, Siemens offers you a multifunctional and decentralized peripheral system that can be easily put into operation due to its space-saving design. It is approved for protection class IP20 and designed for installation in a compact control box. The system guarantees you maximum flexibility, as you can swap the modules quickly and easily at any time thanks to multi hot swapping. In addition, the SIMATIC ET 200SP offers you a wide range of different and fast communication paths. Due to the integration of the multifieldbus interface module IM155-6MF, you are flexible at all times and can use the optimal protocol for your application, as this function supports several Ethernet protocols. Assembly and service are simplified by a uniform identification system based on reference identification plates and color-coded terminal assignments. By integrating innovative and long-lasting automation products, Siemens guarantees you future security because, as industry experts, they are already relying on the technologies of tomorrow and are thus redefining market standards. Consistent data availability, flexible use cases and versatile integration options ensure the optimal performance of the ET 200 products. For SIMATIC ET 200SP, interface modules with integrated CPU and PROFINET connection are also available in a fail-safe version. The functionality corresponds to a CPU from the SIMATIC S7-1500 family. A SIMATIC memory card is required to operate this module.

More product images:

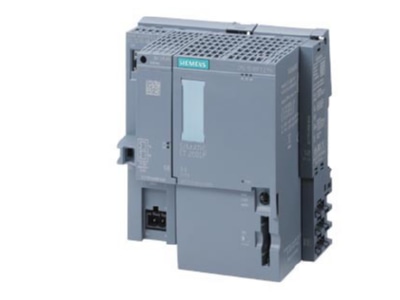

Product image 1 Siemens Dig Industr  6ES7510 1DK03 0AB0 Fieldbus basic device DC19 2   28 8V
Product image 1
Product image 2 Siemens Dig Industr  6ES7510 1DK03 0AB0 Fieldbus basic device DC19 2   28 8V
Product image 2

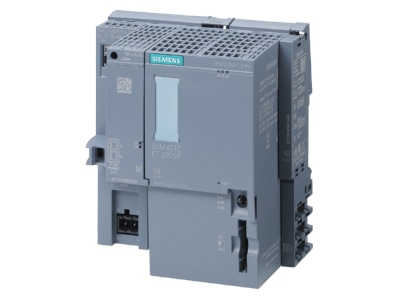

Product image 3 Siemens Dig Industr  6ES7510 1DK03 0AB0 Fieldbus basic device DC19 2   28 8V
Product image 3
