Empty cabinet 997x597mm 8GK1031-4KK20
Source photo:
SIEMENS
(fig. might be different or similar)

Empty cabinet 997x597mm 8GK1031-4KK20

EAN/GTIN: 4047624145478
WEEE: DE 23691322
Manufacturer: SIEMENS
Manufacturer no.: 8GK1031-4KK20
Customs tariff no.: 94032080
Similar top items: Show now & compare
409,87 EUR Price incl. tax. 19,00%
plus shipping
Delivery time:
11 days [EN] Items to be procured that can be ordered (no central warehouse item) - live request to the central warehouse directly in the cart or click the link below the price >Quantity available?<
Delivery takes place day-exactly. Article is very heavy and/or bulky! Article is >31kg and/or bulky | Package > 1.2m x 0.6m x 0.6m
pce

We always deliver the latest available article version.

Note:
The installation of electrical devices may only be carried out by an approved electrician and, in the case of high-voltage systems (> = 400V and country-specific nominal power), only with the consent of the respective electricity network operator.

Details

Accessory
bought
Useful
Interesting

UP wall distributor 8GK1031-4KK20 Type of cover optional, version cover without, rated current (In) 160A, height 997mm, width 597mm, depth 120mm, installation depth 120mm, RAL number 9016, width in division units 0, number of openings for flange plates 4, Mounting option, material of the housing steel, surface protection powder-coated, protection class (IP) IP31, protection class (NEMA) other, impact resistance IK08, functional integrity without, ALPHA 160 DIN UP wall distributor flush-mounted empty cabinet IP31 protection class II H = 950mm W = 550mm D = 120mm The installation distributors ALPHA - a complete system of wall and floor-standing distributors for installing devices up to 1250 A. The ALPHA distribution systems are tested according to IEC 61439 and are based on a common platform structure with extensive versions up to 1250 A. Due to the platform structure and the modular design, the device-specific installation kits can be installed in different distribution variants can be integrated. This makes planning and assembly easier. The equipment is individual and project-specific. The SIMARIS configuration configuration software supports everything from planning to documentation of the energy distributors and installation distributors. ALPHA - the system idea counts.

More product images:

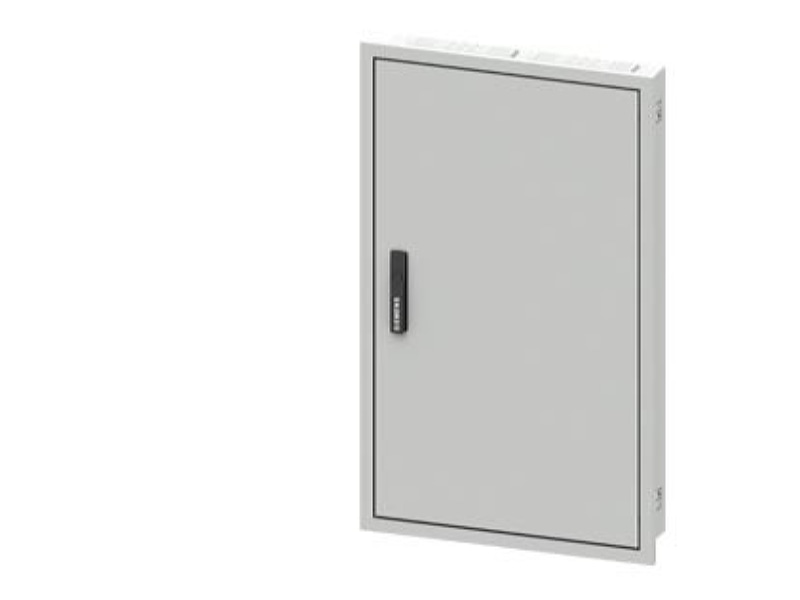

Product image 1 Siemens Dig Industr  8GK1031 4KK20 Empty cabinet 997x597mm
Product image 1

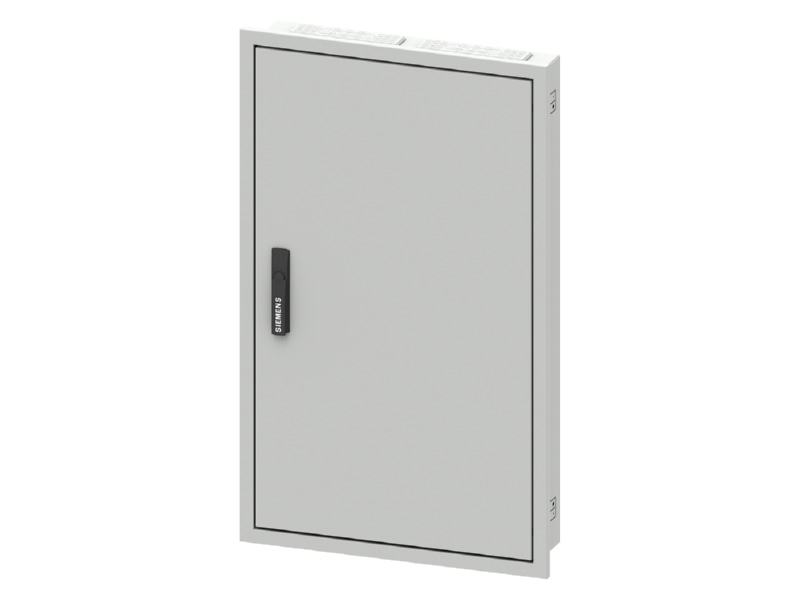

Product image 2 Siemens Dig Industr  8GK1031 4KK20 Empty cabinet 997x597mm
