Data and communication cable 8x0,51mm 6XV1878-2F
Source photo:
SIEMENS
(fig. might be different or similar)

Data and communication cable 8x0,51mm 6XV1878-2F

EAN/GTIN: 4019169858182
WEEE: DE 23691322
Manufacturer: SIEMENS
Manufacturer no.: 6XV1878-2F
Customs tariff no.: 85444920
Order level:
(minimum)
20 meter
Similar top items: Show now & compare
115,00 EUR Price incl. tax. 19,00%
(for 20 meter)
plus shipping
Delivery time:
11 days [EN] Items to be procured that can be ordered (no central warehouse item) - live request to the central warehouse directly in the cart or click the link below the price >Quantity available?<
This article is per 20 meter orderable.
Delivery takes place day-exactly. Article is very heavy and/or bulky! Article is >31kg and/or bulky | Package > 1.2m x 0.6m x 0.6m
meter

We always deliver the latest available article version.

Note:
The installation of electrical devices may only be carried out by an approved electrician and, in the case of high-voltage systems (> = 400V and country-specific nominal power), only with the consent of the respective electricity network operator.

Details

Accessory
bought
Useful
Interesting

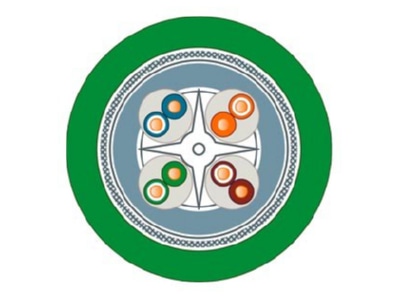

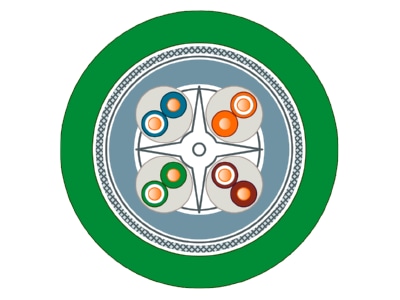

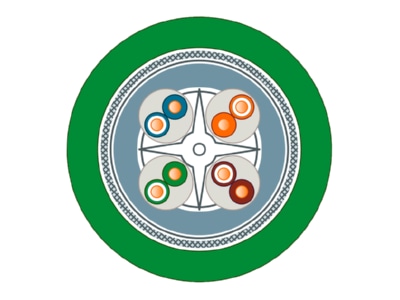

IE FC TP FRNC Cable GP 4x2, CAT6A 6XV1878-2F conductor surface bare, conductor diameter 0.51mm, number of cores 8, number of stranding elements 4, stranding element pairs, material of the core insulation other, core marking color, shield over stranding element without, Stranding bundle, shield over stranding foil + braid, sheath material other, specification sheath material other, sheath color green, fire behavior class according to EN 13501-6 Cca, flame retardant no, low smoke according to EN 61034-2, low smoke according to IEC 61034-2, outer diameter approx. 8mm, Min. permissible bending radius, flexible use with forced guidance 80mm, Min. permissible bending radius, flexible use/free movement 80mm, Min. permissible bending radius, stationary use/fixed installation 80mm, Perm. External cable temperature during assembly/handling -40 ... 70°C, perm. Cable outside temperature after assembly without vibration -50 ... 70°C, category 6, NVP value 67%, IE FC TP FRNC Cable GP 4x2, halogen-free TP cable for fixed installation, for connection to FC RJ45 Plug 4x2, 8-wire, shielded, CAT 6A, sold by the meter, delivery unit max. 4000m, minimum order quantity 20m. SIMATIC NETIE FC TP FRNC Cable GP 4x2 (AWG 24, Type C) cable for Gigabit-capable cabling system, with rigid cores for fixed installation. Used in the automotive industry, mechanical engineering, energy automation, oil and gas production, wind turbines. Time savings through simple and quick on-site assembly. High immunity to interference thanks to double shielding. RoHS compliant, free of paint-wetting substances. Category 6 (Cat6) of the international cabling standard ISO/IEC 11801 and EN 50173. UL approved. Easy length determination thanks to printed meter markings.
