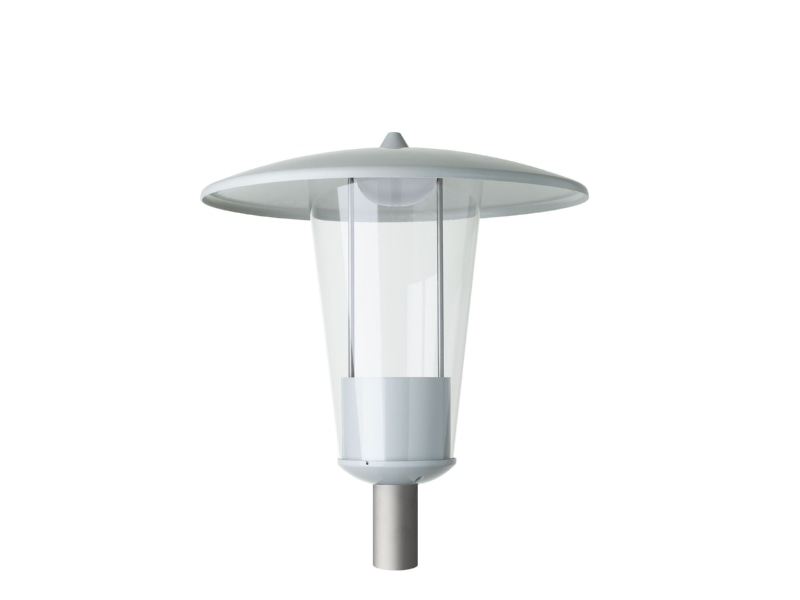

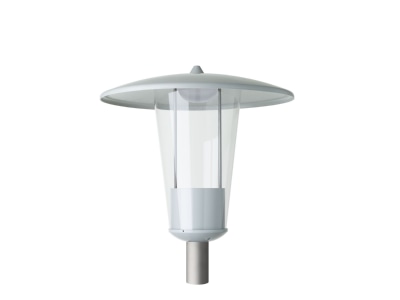

Luminaire for streets and places 543 1602R G2 C 730
Source photo:
Schuch
(fig. might be different or similar)

Luminaire for streets and places 543 1602R G2 C 730

EAN/GTIN: 4041254404851
WEEE: DE 24868251
Manufacturer: Schuch
Manufacturer no.: 543 1602R G2 C 730
Manufact.-SKU: 543000034
Customs tariff no.: 94054239
Similar top items: Show now & compare
546,77 EUR Price incl. tax. 19,00%
plus shipping
Delivery time:
1 days [EN] 24 hour delivery, click here for more infoCentral warehouse item (regularly available) - live request to the central warehouse directly in the cart or click the link below the price >Quantity available?<
pce

We always deliver the latest available article version.

Note:
The installation of electrical devices may only be carried out by an approved electrician and, in the case of high-voltage systems (> = 400V and country-specific nominal power), only with the consent of the respective electricity network operator.

Details

Accessory

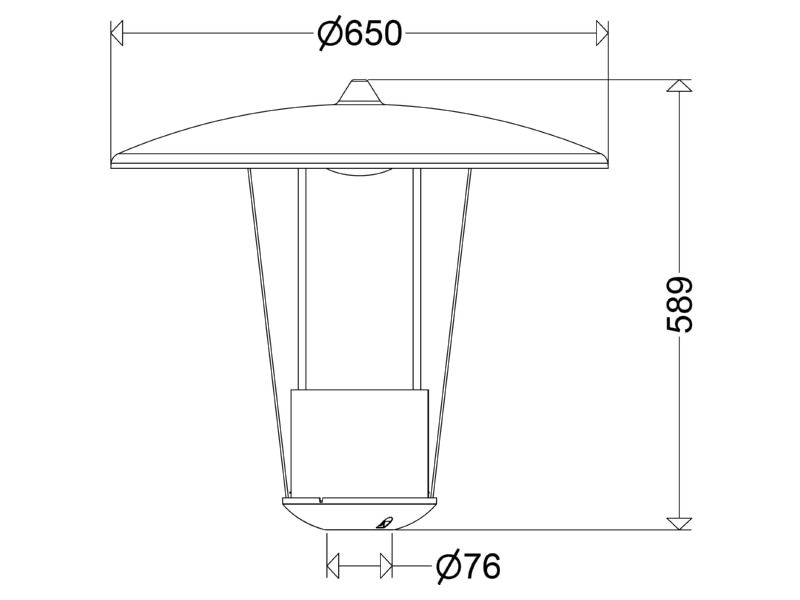

Energy efficiency class of the light source according to EU regulation 2019/2015=C, Mounting method=Post top, Lamp type=LED exchangeable, With light source=yes, Housing material=Aluminium, Surface protection=lacquered, Housing colour=Grey, Nominal voltage=220..240 V, Light distributor=Diffuser lens/optic/panel, Max. number of luminaires per miniature circuit breaker B16 (MCB)=23, Max. number of luminaires per miniature circuit breaker C16 (MCB)=39, Degree of protection (IP)=IP54, Impact strength=IK06, Protection class=II, Rated ambient temperature according to IEC 62722-2-1=-40..35 °C, Max. system power=25 W, Rated luminous flux according to IEC 62722-2-1=3380 lm, Luminaire efficacy=135 lm/W, Colour of light=White, Colour temperature=3000 K, Width=650 mm, Height/depth=589 mm, Diameter=650 mm, Number of poles=3
