LED high bay spotlight 4000K, 3302 L420B
Source photo:
Schuch
(fig. might be different or similar)

LED high bay spotlight 4000K, 3302 L420B

EAN/GTIN: 4041254314037
WEEE: DE 24868251
Manufacturer: Schuch
Manufacturer no.: 3302 L420B
Manufact.-SKU: 330200002
Customs tariff no.: 94051190
Illuminants: included
Similar top items: Show now & compare
829,72 EUR Price incl. tax. 19,00%
plus shipping
Delivery time:
11 days [EN] Items to be procured that can be ordered (no central warehouse item) - live request to the central warehouse directly in the cart or click the link below the price >Quantity available?<
pce

We always deliver the latest available article version.

Note:
The installation of electrical devices may only be carried out by an approved electrician and, in the case of high-voltage systems (> = 400V and country-specific nominal power), only with the consent of the respective electricity network operator.

Details

bought
Useful
Interesting

Mounting method = Pendant, Lamp type = LED exchangeable, With light source = yes, Suitable for auxiliary lamp = no, Housing material = Aluminium, Housing colour = Grey, Voltage type = AC, Nominal voltage = 220..240 V, Type of control gear = LED operating device current-controlled, Exchangeable control gear = yes, With control gear = yes, Dimming 0-10 V = no, Dimming 1-10 V = no, Dimming DALI = no, Dimming DMX = no, Dimming DSI = no, Dimming phase cut-off = no, Dimming phase cut-on = no, Dimming potentiometer (integrated) = no, Dimming LineSwitch = no, Dimming manufacturer´s proprietary system = no, Dimming mains voltage modulation = no, Dimming programmable = no, Dimming RF = no, Dimming Sine Wave Reduction = no, Dimming Touch and Dim = no, Dimming Zigbee = no, Dimming with push-button = no, No dim function = yes, Light distributor = Focal lens, Light sharing = Symmetric, Reflector = None, Material reflector = Other, Energy efficiency class of the light source according to EU regulation 2019/2015 = Not required, Beam angle = Extreme wide beam >80°, Rated life time L70/B50 at 25 °C = 0 h, Lumen maintenance at median useful life of 50,000 h at 25 °C ambient (tq) = 0 %, Lumen maintenance at median useful life of 100,000 h at 25 °C ambient (tq) = 0 %, Failure rate at median useful life of 50,000 h at 25 °C ambient (tq) = 0 %, Failure rate at median useful life of 100,000 h at 25 °C ambient (tq) = 0 %, Degree of protection (IP) = IP65, Impact strength = IK10, Ball-proof = no, Protection class = I, Luminaire with limited surface temperature, sign ´´D¿ according to EN 60598-2-24 = no, Rated ambient temperature according to IEC 62722-2-1 = -25..50 °C, Emergency power supply integrated = no, Suitable for emergency lighting = no, Max. system power = 270 W, Rated luminous flux according to IEC 62722-2-1 = 40400 lm, Luminaire efficacy = 150 lm/W, Colour of light = White, Colour temperature = 4000 K, Colour rendering index CRI = 80-89, Constant light output (CLO) = no, Colour of light adjustable = No, Beam angle adjustable = No, Luminous flux adjustable = No, Width = 420 mm, Height/depth = 100 mm, Length = 877 mm, Outer diameter = 0 mm, Conductor cross section = 0 mm², With protective cover = yes, Max. number of luminaires per miniature circuit breaker B16 (MCB) = 5, Operation by Bluetooth = no

More product images:

Product image Schuch 3302 L420B LED high bay spotlight 4000K
Product image

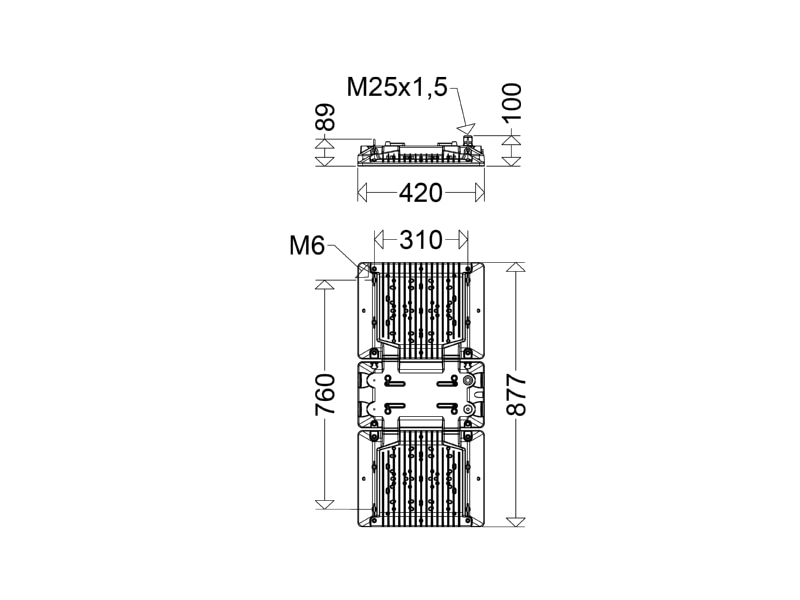

Dimensional drawing Schuch 3302 L420B LED high bay spotlight 4000K
Dimensional drawing
