Explosion proof luminaire fixed mounting e8820/3 L150T
Source photo:
Schuch
(fig. might be different or similar)

Explosion proof luminaire fixed mounting e8820/3 L150T

EAN/GTIN: 4041254352602
WEEE: DE 24868251
Manufacturer: Schuch
Manufacturer no.: e8820/3 L150T
Manufact.-SKU: 882000006
Customs tariff no.: 94054210
Illuminants: included
Similar top items: Show now & compare
1.656,49 EUR Price incl. tax. 19,00%
plus shipping
Delivery time:
11 days [EN] Items to be procured that can be ordered (no central warehouse item) - live request to the central warehouse directly in the cart or click the link below the price >Quantity available?<
pce

We always deliver the latest available article version.

Note:
The installation of electrical devices may only be carried out by an approved electrician and, in the case of high-voltage systems (> = 400V and country-specific nominal power), only with the consent of the respective electricity network operator.

Details

bought
Useful
Interesting

Energy efficiency class of the light source according to EU regulation 2019/2015=Not required, Mounting method=Wall-/ceiling mounting, Adjustable=yes, Lamp type=LED not exchangeable, With light source=yes, Housing material=Aluminium, Material cover=Glass transparent, Voltage type=AC/DC, Nominal voltage=220..240 V, Type of control gear=LED operating device current-controlled, With control gear=yes, Exchangeable control gear=yes, Light distributor=Focal lens, Beam angle=Medium beam 21-40°, Rated life time L70/B50 at 25 °C=100000 h, Lumen maintenance at median useful life of 50,000 h at 25 °C ambient (tq)=0 %, Failure rate at median useful life of 50,000 h at 25 °C ambient (tq)=0 %, Degree of protection (IP)=IP66, Impact strength=IK08, Protection class=I, For Ex-zone gas=1, 2, For Ex-Zone dust=21, 22, Rated ambient temperature according to IEC 62722-2-1=-30..40 °C, Max. system power=125 W, Rated luminous flux according to IEC 62722-2-1=13500 lm, Luminaire efficacy=108 lm/W, Colour of light=White, Colour temperature=5500 K, Constant light output (CLO)=no, Width=503 mm, Height/depth=121 mm, Length=547 mm, Outer diameter=0 mm, Type of wiring=Ending, Number of poles=5, Conductor cross section=2,5 mm², Connection type=Push-in clamp, Max. number of luminaires per miniature circuit breaker B16 (MCB)=12

More product images:

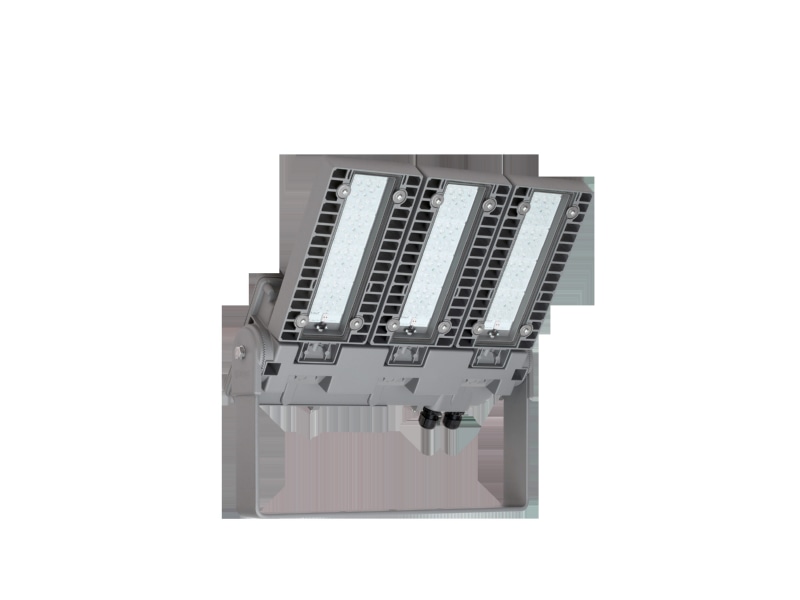

Product image Schuch e8820 3 L150T Explosion proof luminaire fixed mounting
Product image

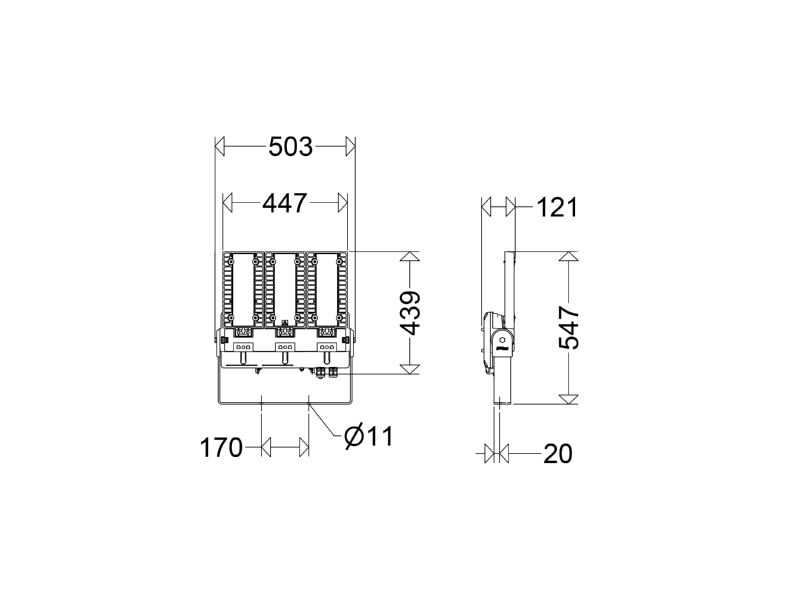

Dimensional drawing Schuch e8820 3 L150T Explosion proof luminaire fixed mounting
Dimensional drawing
