Switching relay DC 24V 6A RXM4AB1BDPVM

EAN/GTIN: 3606489563127
WEEE: DE 33842582
Manufacturer: Schneider Electric
Manufacturer no.: RXM4AB1BDPVM
Customs tariff no.: 85364190
Order level:
(minimum)
30 pce
Similar top items: Show now & compare
312,30 EUR Price incl. tax. 19,00%
(for 30 pce)
plus shipping
Delivery time:
11 days [EN] Items to be procured that can be ordered (no central warehouse item) - live request to the central warehouse directly in the cart or click the link below the price >Quantity available?<
This article is per 30 pce orderable.
pce

We always deliver the latest available article version.

Note:
The installation of electrical devices may only be carried out by an approved electrician and, in the case of high-voltage systems (> = 400V and country-specific nominal power), only with the consent of the respective electricity network operator.

Details

Accessory
bought
Useful
Interesting

Miniature relay 4W 6A 24VDC RXM4AB1BDPVM Electrical connection design Plug-in connection, With removable terminals, Rated current 6A, Rated control supply voltage Us at DC 24 ... 24V, Voltage type for actuation DC, Drive, Polarity unpolarized, Switching behavior of the drive monostable, Number of contacts as normally closed contacts 0, Number of contacts as make contacts 0, number of contacts as changeover contacts 4, type of switching contact other, complete device with base, material of contact coating other, material of contact insert other, material of contact other, protection class (IP) IP20, width 27mm, height 79mm, Depth 78mm, Zelio Relay. Pre-assembled and directly usable miniature relay RXM consisting of relay, base, retaining bracket and label. Number of contacts - 4, version - relay changer, contact load - 6 A each. Coil control voltage - 24 VDC. Mechanical position indicator - yes, LED indicator - no. Test button for testing the contacts - yes, test lever for permanent switching for test purposes - yes, operation - tool-free. Plug-in base with screw terminals in a combined arrangement for mounting on a top-hat rail or screwed onto a mounting plate. Plastic retaining bracket for fixing and easily removing the relay. Label for identification. All components are assembled ready for use and the pre-assembled relay can be used immediately.

More product images:

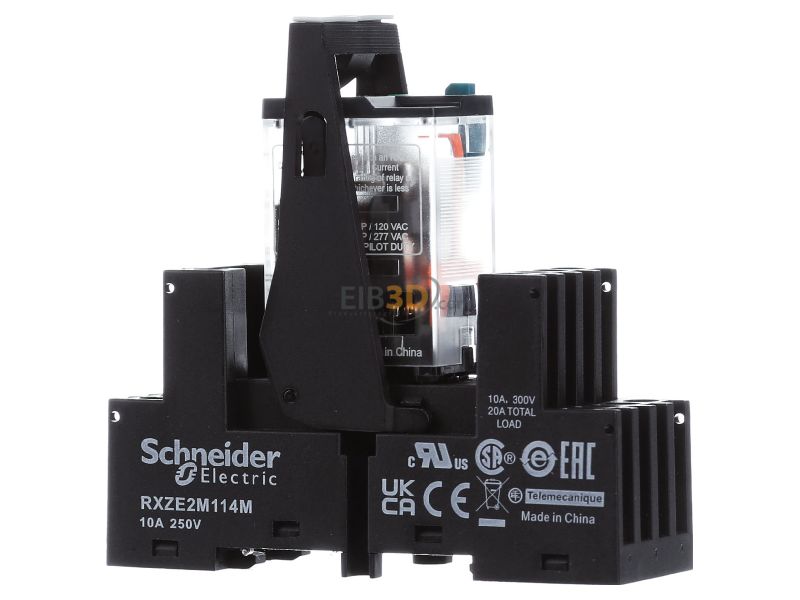

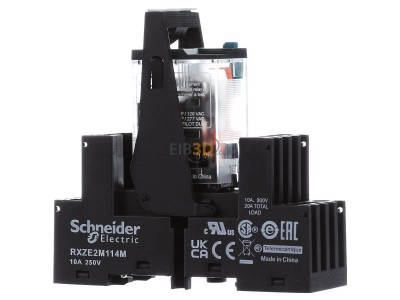

Front view Schneider Electric RXM4AB1BDPVM Switching relay DC 24V 6A
Front view

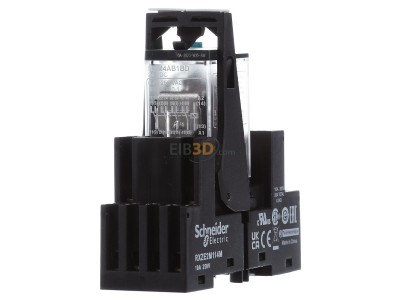

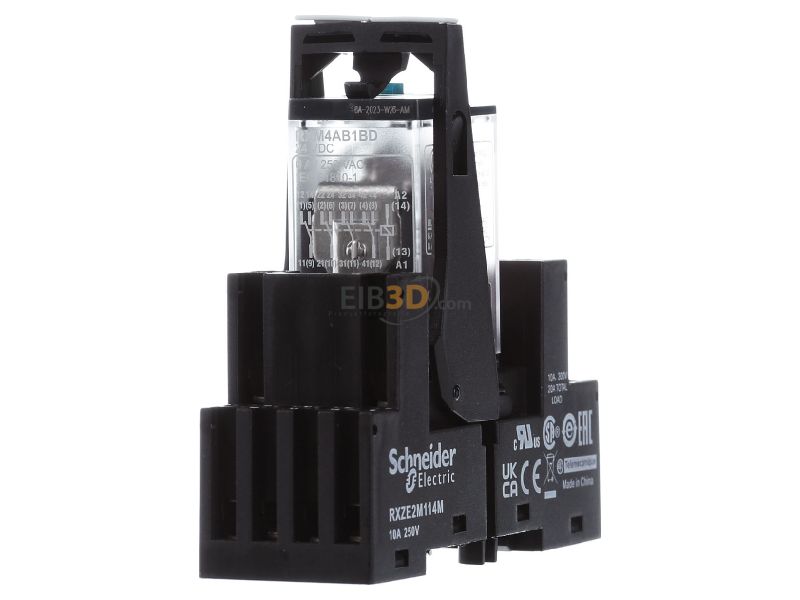

View on the left Schneider Electric RXM4AB1BDPVM Switching relay DC 24V 6A
View on the left
View on the right Schneider Electric RXM4AB1BDPVM Switching relay DC 24V 6A
View on the right
Back view Schneider Electric RXM4AB1BDPVM Switching relay DC 24V 6A
Back view
View up front Schneider Electric RXM4AB1BDPVM Switching relay DC 24V 6A
View up front
View top left Schneider Electric RXM4AB1BDPVM Switching relay DC 24V 6A
View top left

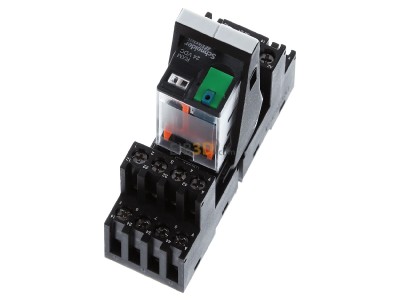

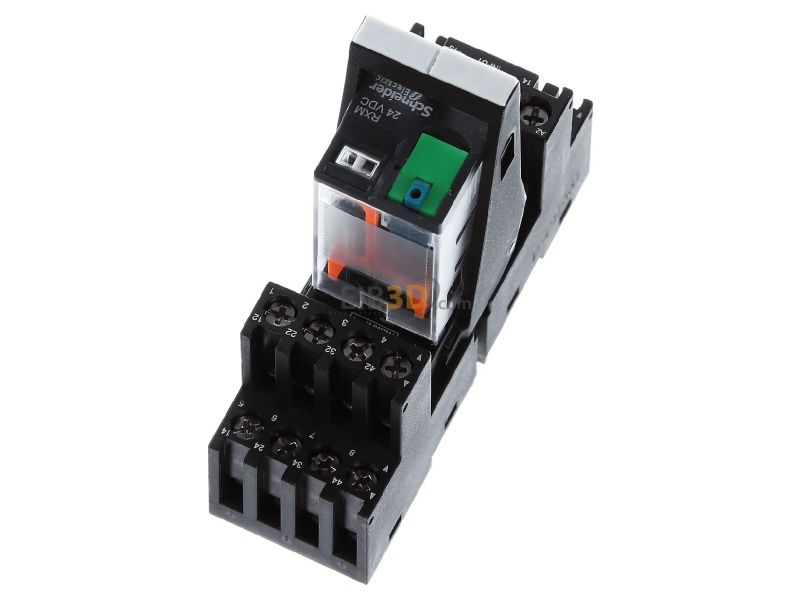

View top right Schneider Electric RXM4AB1BDPVM Switching relay DC 24V 6A
View top right

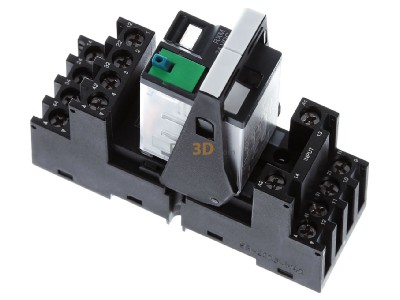

Top rear view Schneider Electric RXM4AB1BDPVM Switching relay DC 24V 6A
Top rear view
