Circuit-breaker 40A 3VA2140-5MQ32-0AA0
Source photo:
SIEMENS
(fig. might be different or similar)

Circuit-breaker 40A 3VA2140-5MQ32-0AA0

EAN/GTIN: 4042948830963
WEEE: DE 23691322
Manufacturer: SIEMENS
Manufacturer no.: 3VA2140-5MQ32-0AA0
Manufact.-SKU: 3VA21405MQ320AA0
Customs tariff no.: 85362010
Similar top items: Show now & compare
840,47 EUR Price incl. tax. 19,00%
plus shipping
Delivery time:
11 days [EN] Items to be procured that can be ordered (no central warehouse item) - live request to the central warehouse directly in the cart or click the link below the price >Quantity available?<
pce

We always deliver the latest available article version.

Note:
The installation of electrical devices may only be carried out by an approved electrician and, in the case of high-voltage systems (> = 400V and country-specific nominal power), only with the consent of the respective electricity network operator.

Details

Accessory
bought
Useful
Interesting

Rated permanent current Iu 40A, Rated voltage 690 ... 690V, Rated short-circuit breaking capacity lcu at 400 V, 50 Hz 55kA, Overload release current setting 16 ... 40A, Adjustment range short-term delayed short-circuit release 48 ... 600A, Adjustment range undelayed short-circuit release 120 ... 600A, Integrated earth fault protection, Type of electrical connection of main circuit Screw connection, Device construction Built-in device fixed built-in technique, Suitable for DIN rail (top hat rail) mounting, DIN rail (top hat rail) mounting optional, Number of auxiliary contacts as normally closed contact 0, Number of auxiliary contacts as normally open contact 0, Number of auxiliary contacts as change-over contact 0, Number of poles 3, Position of connection for main current circuit Front side, Type of control element Rocker lever, Complete device with protection unit, Motor drive optional, Degree of protection (IP) IP40

More product images:

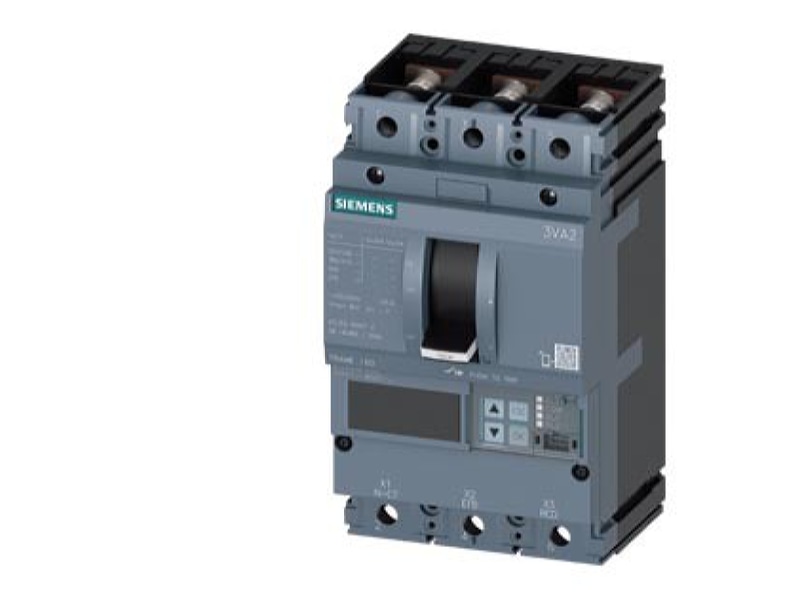

Product image 1 Siemens 3VA2140 5MQ32 0AA0 Circuit breaker 40A
Product image 1

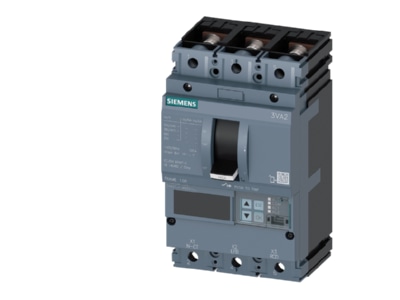

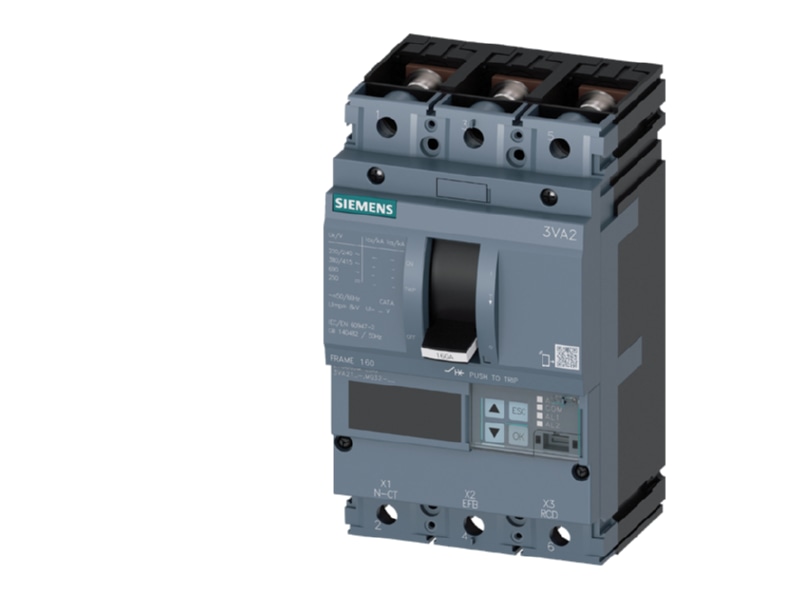

Product image 2 Siemens 3VA2140 5MQ32 0AA0 Circuit breaker 40A
Product image 2
