Gear tray for light-line system 1x27W VENICE-G-F1 0536109
Source photo:
Ridi-Leuchten
(fig. might be different or similar)

Gear tray for light-line system 1x27W VENICE-G-F1 0536109

EAN/GTIN: 4029299472837
WEEE: DE 70192297
Manufacturer: Ridi-Leuchten
Manufacturer no.: VENICE-G-F1 #0536109
Manufact.-SKU: 0536109
Customs tariff no.: 94051190
Similar top items: Show now & compare
239,44 EUR Price incl. tax. 19,00%
plus shipping
Delivery time:
11 days [EN] Items to be procured that can be ordered (no central warehouse item) - live request to the central warehouse directly in the cart or click the link below the price >Quantity available?<
Delivery takes place day-exactly. Article is very heavy and/or bulky! Article is >31kg and/or bulky | Package > 1.2m x 0.6m x 0.6m
pce

We always deliver the latest available article version.

Note:
The installation of electrical devices may only be carried out by an approved electrician and, in the case of high-voltage systems (> = 400V and country-specific nominal power), only with the consent of the respective electricity network operator.

Details

Accessory
bought
Useful
Interesting

Lamp LED interchangeable, With bulbs yes, Suitable for number of lamps 1, Version other, Material of the housing Aluminum, Housing Color white, Voltage AC/DC, Nominal voltage 220..240 V, Control gear LED operating device current-controlled, With operating device yes, Replaceable operating device yes, Dimming 0-10 V no, Dimming 1-10 V no, Dimming DALI yes, Dimming DMX no, Dimming manufacturer-specific no, Dimming DSI no, Dimming potentiometer (integrated in device) no, Dimming LineSwitch no, Dimming Mains voltage modulation no, Dimming Phase section no, Dimming Phase control no, Programmable dimming yes, Dimming RF no, Dimming Sine Wave Reduction no, Dimming Touch and Dim yes, Dimming Zigbee no, Dimming with push-button no, Without dimming function no, Light distributor Diffuser lens / optics / panel, Reflector without, Light distribution symmetrical, Light output directly, Beam angle extremely wide beam > 80 °, Colour consistency (McAdam ellipse) SDCM3, IP protection) IP20, Protection class I, Suitable for emergency light yes, Integrated emergency power supply no, Suitable for lamp power 27 W, Max. System performance 31 W, Rated luminous flux according to IEC 62722-2-1 4420 lm, Luminous efficacy 142 lm/W, Light color white, Color temperature 3000K, Color rendering index CRI 80-89, Constant luminous flux control yes, Beam angle adjustable no, Colour temperature adjustable no, Light current adjustable infinitely variable, Width 58 mm, Height / depth 78 mm, Length 1483 mm, Number of poles 7, Compatible with Casambi no

More product images:

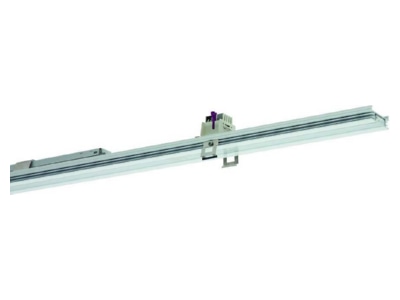

Product image Ridi Leuchten VENICE G F1  0536109 Gear tray for light line system 1x27W VENICE G F1 0536109
Product image
Dimensional drawing Ridi Leuchten VENICE G F1  0536109 Gear tray for light line system 1x27W VENICE G F1 0536109
Dimensional drawing
