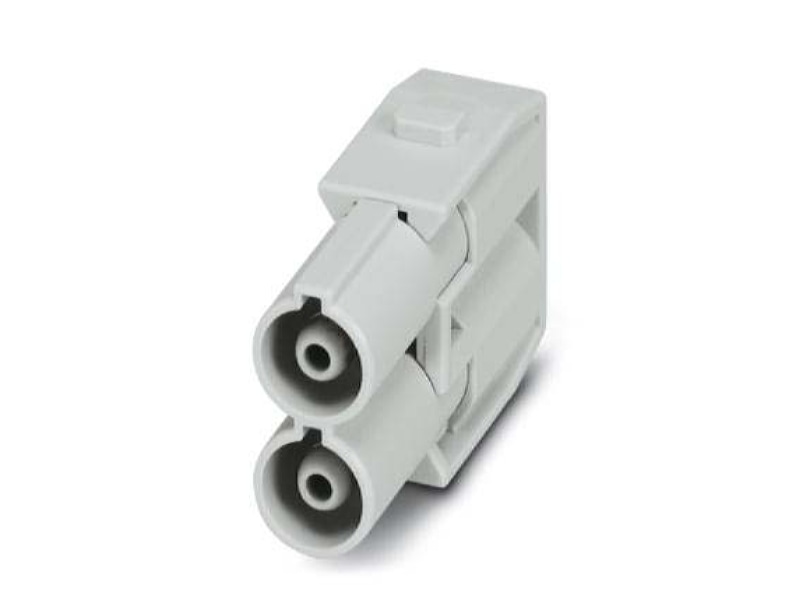

Pin insert for connector 2p HC-M-02-AT-M-16
Source photo:
Phoenix
(fig. might be different or similar)

Pin insert for connector 2p HC-M-02-AT-M-16

EAN/GTIN: 4055626112404
WEEE: DE 50738265
Manufacturer: Phoenix
Manufacturer no.: HC-M-02-AT-M-16
Manufact.-SKU: 1417297
Customs tariff no.: 85366990
Order level:
(minimum)
2 pce
Similar top items: Show now & compare
39,00 EUR Price incl. tax. 19,00%
(for 2 pce)
plus shipping
Delivery time:
11 days [EN] Items to be procured that can be ordered (no central warehouse item) - live request to the central warehouse directly in the cart or click the link below the price >Quantity available?<
This article is per 2 pce orderable.
pce

We always deliver the latest available article version.

Note:
The installation of electrical devices may only be carried out by an approved electrician and, in the case of high-voltage systems (> = 400V and country-specific nominal power), only with the consent of the respective electricity network operator.

Details

Accessory
bought
Useful
Interesting

Pin insert for connector 2p Contact type Pin, Number of poles 2, Material connector of connector insert Thermoplastic, Rated current In 70A, Ambient temperature -40 ... 125°C, Rated voltage 1000V, Rated surge voltage 8kV, Over voltage category III, Pollution degree 3, Type of electric connection Axial screw connection, Connectable conductor cross section fine-strand with cable end sleeve 25 ... 6mm², Connectable conductor cross section solid-core 6 ... 25mm², Material of contact surface Silver, Material contact Other copper alloys, Inflammability class of insulation material acc. with UL94 V0
