Ground terminal block 8-p 8,3mm PTRVB 8-FI /BK
Source photo:
Phoenix
(fig. might be different or similar)

Ground terminal block 8-p 8,3mm PTRVB 8-FI /BK

EAN/GTIN: 4046356796255
WEEE: DE 50738265
Manufacturer: Phoenix
Manufacturer no.: PTRVB 8-FI /BK
Manufact.-SKU: 3270160
Customs tariff no.: 85369010
Similar top items: Show now & compare
15,63 EUR Price incl. tax. 19,00%
plus shipping
Delivery time:
1 days [EN] 24 hour delivery, click here for more infoCentral warehouse item (regularly available) - live request to the central warehouse directly in the cart or click the link below the price >Quantity available?<
pce

We always deliver the latest available article version.

Note:
The installation of electrical devices may only be carried out by an approved electrician and, in the case of high-voltage systems (> = 400V and country-specific nominal power), only with the consent of the respective electricity network operator.

Details

Accessory
bought
Useful
Interesting

Ground terminal block 8-p 8,3mm Connectable conductor cross section fine-strand without cable end sleeve 0,14 ... 1,5mm², Connectable conductor cross section fine-strand with cable end sleeve 0,14 ... 1,5mm², Connectable conductor cross section solid-core 0,14 ... 2,5mm², Connectable conductor cross section multi-wired 0,14 ... 1,5mm², Type of electrical connection 1 Plug clamp connection, Type of electrical connection 2 Plug clamp connection, Number of levels 8, Number of clamp positions per level 4, Mounting method DIN rail (top hat rail) 35 mm, Material insulation body Thermoplastic, Inflammability class of insulation material acc. with UL94 V0, Width/grid dimension 8,3mm, Height at lowest possible mounting height 87,5mm, Length 100mm, Closing plate required, Colour Other

More product images:

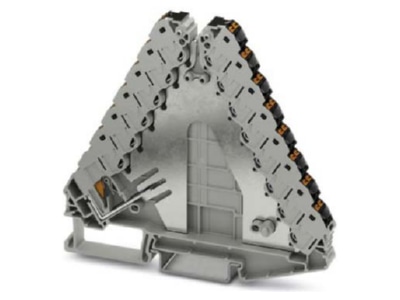

Product image 1 Phoenix PTRVB 8 FI  BK Ground terminal block 8 p 8 3mm
Product image 1
Product image 2 Phoenix PTRVB 8 FI  BK Ground terminal block 8 p 8 3mm
Product image 2
