Feed-through terminal block 28,6mm 24A PTFIX 18X2,5-NS35 BN
Source photo:
Phoenix
(fig. might be different or similar)

Feed-through terminal block 28,6mm 24A PTFIX 18X2,5-NS35 BN

EAN/GTIN: 4055626390826
WEEE: DE 50738265
Manufacturer: Phoenix
Manufacturer no.: PTFIX 18X2,5-NS35 BN
Manufact.-SKU: 3273054
Customs tariff no.: 85369010
Order level:
(minimum)
8 pce
Similar top items: Show now & compare
60,05 EUR Price incl. tax. 19,00%
(for 8 pce)
plus shipping
Delivery time:
11 days [EN] Items to be procured that can be ordered (no central warehouse item) - live request to the central warehouse directly in the cart or click the link below the price >Quantity available?<
This article is per 8 pce orderable.
pce

We always deliver the latest available article version.

Note:
The installation of electrical devices may only be carried out by an approved electrician and, in the case of high-voltage systems (> = 400V and country-specific nominal power), only with the consent of the respective electricity network operator.

Details

Accessory
bought
Useful
Interesting

Feed-through terminal block 28,6mm 24A Connectable conductor cross section fine-strand without cable end sleeve 0,14 ... 2,5mm², Connectable conductor cross section fine-strand with cable end sleeve 0,14 ... 2,5mm², Connectable conductor cross section solid-core 0,14 ... 2,5mm², Connectable conductor cross section multi-wired 0,14 ... 2,5mm², Rated current In 24A, Rated voltage 500V, Type of electrical connection 1 Spring clamp connection, Type of electrical connection 2 Spring clamp connection, Number of levels 1, Number of clamp positions per level 18, Mounting method DIN rail (top hat rail) 35 mm, Material insulation body Thermoplastic, Inflammability class of insulation material acc. with UL94 V0, Width/grid dimension 28,6mm, Height at lowest possible mounting height 28,7mm, Length 58,1mm, Colour Brown

More product images:

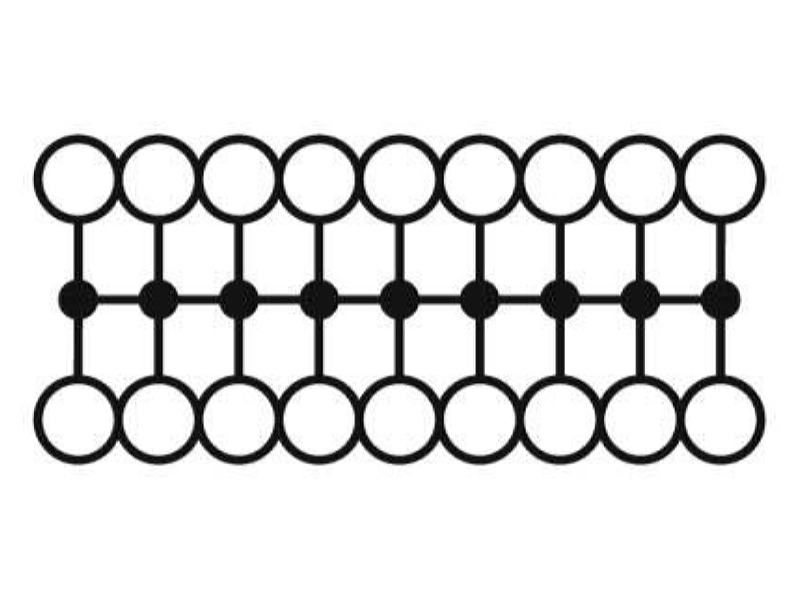

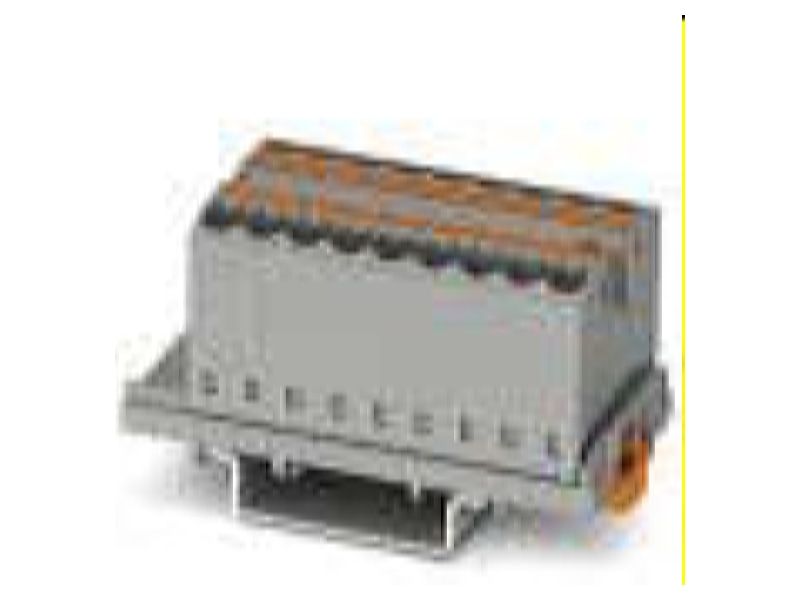

Product image 1 Phoenix PTFIX 18X2 5 NS35 BN Feed through terminal block 28 6mm 24A
Product image 1

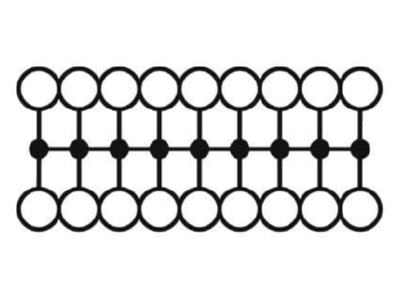

Product image 2 Phoenix PTFIX 18X2 5 NS35 BN Feed through terminal block 28 6mm 24A
Product image 2
