Safety relay 24V DC EN954-1 Cat 4 PSR-SCP-24UC/ESA4/3X

EAN/GTIN: 4017918878085
WEEE: DE 50738265
Manufacturer: Phoenix
Manufacturer no.: PSR-SCP-24UC/ESA4/3X
Manufact.-SKU: 2963763
Customs tariff no.: 85371098
Similar top items: Show now & compare
170,55 EUR Price incl. tax. 19,00%
plus shipping
Delivery time:
11 days [EN] Items to be procured that can be ordered (no central warehouse item) - live request to the central warehouse directly in the cart or click the link below the price >Quantity available?<
pce

We always deliver the latest available article version.

Note:
The installation of electrical devices may only be carried out by an approved electrician and, in the case of high-voltage systems (> = 400V and country-specific nominal power), only with the consent of the respective electricity network operator.

Details

Accessory
bought
Useful
Interesting

Safety relay 24V DC EN954-1 Cat 4 Model Basic device, Suitable for monitoring of emergency-stop circuits, Type of electric connection Screw connection, Rail mounting possible, Rated control supply voltage Us at AC 50HZ 24 ... 24V, Rated control supply voltage Us at DC 24 ... 24V, Voltage type for actuating DC, With detachable clamps, Evaluation inputs One- and two-channel, With start input, Number of outputs, safety related, instantaneous, with contact 3, Number of outputs, safety related, delayed, with contact 0, Number of outputs, safety related, instantaneous, semiconductors 0, Number of outputs, safety related, delayed, semiconductors 0, Number of outputs, signalling function, instantaneous, with contact 1, Number of outputs, signalling function, delayed, with contact 0, Number of outputs, signalling function, instantaneous, semiconductors 0, Number of outputs, signalling function, delayed, semiconductors 0, Category according to EN 954-1 4, Stop category acc. IEC 60204 0, Performance level acc. EN ISO 13849-1 Level e, With approval for TÜV, With approval for BG BIA, With approval according to UL, Width 22,5mm, Height 99mm, Depth 114,5mm

More product images:

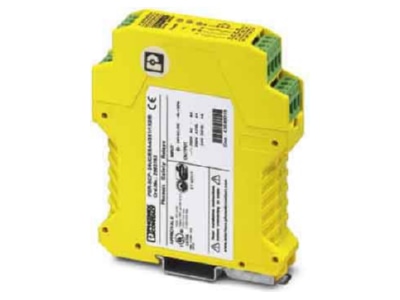

Front view Phoenix PSR-SCP-24UC/ESA4/3X Safety relay 24V DC EN954-1 Cat 4
Front view

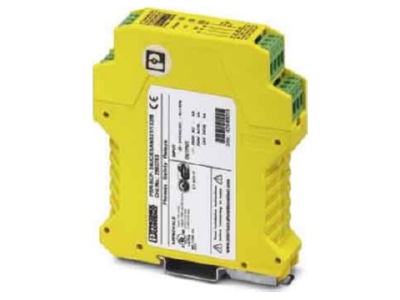

View on the left Phoenix PSR-SCP-24UC/ESA4/3X Safety relay 24V DC EN954-1 Cat 4
View on the left
View on the right Phoenix PSR-SCP-24UC/ESA4/3X Safety relay 24V DC EN954-1 Cat 4
View on the right
Back view Phoenix PSR-SCP-24UC/ESA4/3X Safety relay 24V DC EN954-1 Cat 4
Back view
View up front Phoenix PSR-SCP-24UC/ESA4/3X Safety relay 24V DC EN954-1 Cat 4
View up front
View top left Phoenix PSR-SCP-24UC/ESA4/3X Safety relay 24V DC EN954-1 Cat 4
View top left
View top right Phoenix PSR-SCP-24UC/ESA4/3X Safety relay 24V DC EN954-1 Cat 4
View top right
Top rear view Phoenix PSR-SCP-24UC/ESA4/3X Safety relay 24V DC EN954-1 Cat 4
Top rear view
Product image 1 Phoenix PSR SCP 24UC ESA4 3X Safety relay 24V DC EN954 1 Cat 4
Product image 1
Product image 2 Phoenix PSR SCP 24UC ESA4 3X Safety relay 24V DC EN954 1 Cat 4
Product image 2
