Source photo: www.EIB3D.com

Installation floor terminal, 0,2-4mm² 5,2mm, gray, UTI 2,5-PE/L/NT

EAN/GTIN: 4046356644013
WEEE: DE 50738265
Manufacturer: Phoenix
Manufacturer no.: UTI 2,5-PE/L/NT
Manufact.-SKU: 3076028
Customs tariff no.: 85369010
Similar top items: Show now & compare
2,53 EUR Price incl. tax. 19,00%
plus shipping
Delivery time:
1 days [EN] 24 hour delivery, click here for more infoCentral warehouse item (regularly available) - live request to the central warehouse directly in the cart or click the link below the price >Quantity available?<
pce

We always deliver the latest available article version.

Note:
The installation of electrical devices may only be carried out by an approved electrician and, in the case of high-voltage systems (> = 400V and country-specific nominal power), only with the consent of the respective electricity network operator.

Details

Accessory
bought
Useful
Interesting

Installation terminal block 5,2mm 24A Connectable conductor cross section fine-strand without cable end sleeve 0,2 ... 4mm², Connectable conductor cross section fine-strand with cable end sleeve 0,25 ... 2,5mm², Connectable conductor cross section solid-core 0,2 ... 4mm², Connectable conductor cross section multi-wired 0,2 ... 4mm², Rated current In 24A, Rated voltage 400V, Type of electrical connection 1 Screw connection, Type of electrical connection 2 Screw connection, Connection position Sideways, Number of potentials 3, Mounting method DIN rail (top hat rail) 35 mm, Material insulation body Thermoplastic, Inflammability class of insulation material acc. with UL94 V0, Width/grid dimension 5,2mm, Height at lowest possible mounting height 51,5mm, Length 93,5mm, Closing plate required, Basic colour Grey, ProtectiveEarth-function (PE), With N-disconnect slide, N function possible

More product images:

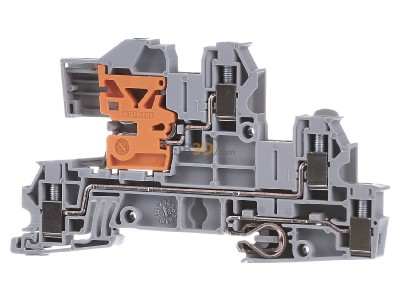

Front view Phoenix UTI 2,5-PE/L/NT Installation floor terminal, 0,2-4mm² 5,2mm, gray,
Front view

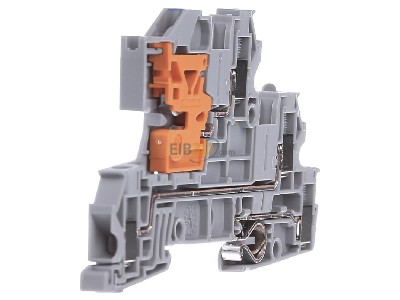

View on the left Phoenix UTI 2,5-PE/L/NT Installation floor terminal, 0,2-4mm² 5,2mm, gray,
View on the left

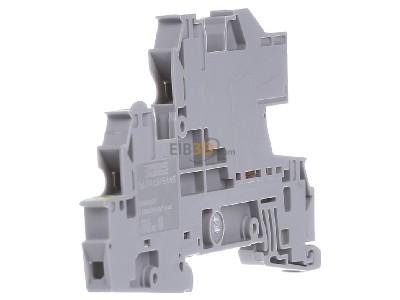

View on the right Phoenix UTI 2,5-PE/L/NT Installation floor terminal, 0,2-4mm² 5,2mm, gray,
View on the right

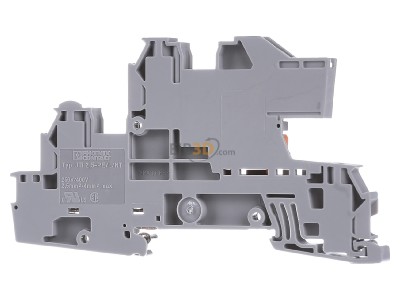

Back view Phoenix UTI 2,5-PE/L/NT Installation floor terminal, 0,2-4mm² 5,2mm, gray,
Back view

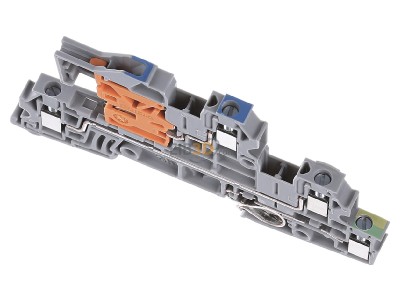

View up front Phoenix UTI 2,5-PE/L/NT Installation floor terminal, 0,2-4mm² 5,2mm, gray,
View up front

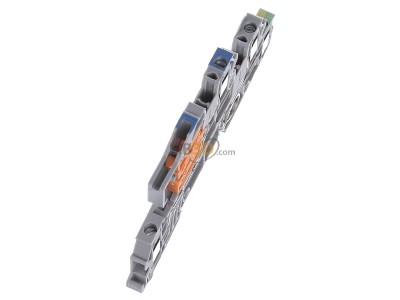

View top left Phoenix UTI 2,5-PE/L/NT Installation floor terminal, 0,2-4mm² 5,2mm, gray,
View top left

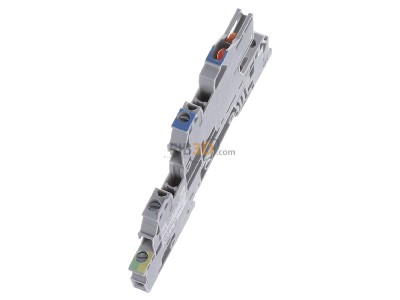

View top right Phoenix UTI 2,5-PE/L/NT Installation floor terminal, 0,2-4mm² 5,2mm, gray,
View top right

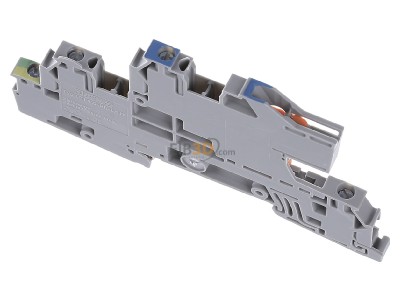

Top rear view Phoenix UTI 2,5-PE/L/NT Installation floor terminal, 0,2-4mm² 5,2mm, gray,
Top rear view
