Feed-through terminal block 6,2mm 40A UHK4-FS/FS(12-2,8-0)
Source photo:
Phoenix
(fig. might be different or similar)

Feed-through terminal block 6,2mm 40A UHK4-FS/FS(12-2,8-0)

EAN/GTIN: 4017918052683
WEEE: DE 50738265
Manufacturer: Phoenix
Manufacturer no.: UHK4-FS/FS(12-2,8-0)
Manufact.-SKU: 2017224
Customs tariff no.: 85369010
Order level:
(minimum)
50 pce
Similar top items: Show now & compare
100,84 EUR Price incl. tax. 19,00%
(for 50 pce)
plus shipping
Delivery time:
11 days [EN] Items to be procured that can be ordered (no central warehouse item) - live request to the central warehouse directly in the cart or click the link below the price >Quantity available?<
This article is per 50 pce orderable.
pce

We always deliver the latest available article version.

Note:
The installation of electrical devices may only be carried out by an approved electrician and, in the case of high-voltage systems (> = 400V and country-specific nominal power), only with the consent of the respective electricity network operator.

Details

Accessory
bought
Useful
Interesting

Feed-through terminal block 6,2mm 40A Connectable conductor cross section fine-strand without cable end sleeve 0,5 ... 6mm², Connectable conductor cross section solid-core 0,5 ... 6mm², Connectable conductor cross section multi-wired 0,5 ... 6mm², Rated current In 40A, Rated voltage 800V, Type of electrical connection 1 Flat plug-in connection, Type of electrical connection 2 Flat plug-in connection, Connection position Sideways, Number of levels 1, Number of clamp positions per level 12, Mounting method DIN rail (top hat rail) 35 mm, Material insulation body Thermoplastic, Inflammability class of insulation material acc. with UL94 V2, Width/grid dimension 6,2mm, Height at lowest possible mounting height 51,5mm, Length 54mm, Closing plate required, Colour Grey

More product images:

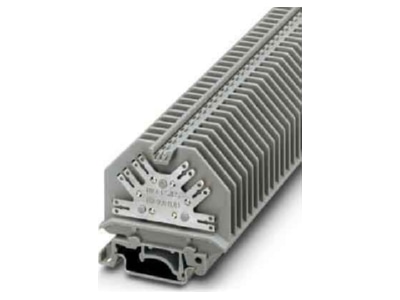

Product image 1 Phoenix UHK4 FS FS 12 2 8 0  Feed through terminal block 6 2mm 40A
Product image 1
Product image 2 Phoenix UHK4 FS FS 12 2 8 0  Feed through terminal block 6 2mm 40A
Product image 2
