Feed-through terminal block 10,2mm 41A UHSK/S 2000
Source photo:
Phoenix
(fig. might be different or similar)

Feed-through terminal block 10,2mm 41A UHSK/S 2000

EAN/GTIN: 4017918003661
WEEE: DE 50738265
Manufacturer: Phoenix
Manufacturer no.: UHSK/S 2000
Manufact.-SKU: 0704076
Customs tariff no.: 85369010
Similar top items: Show now & compare
4,72 EUR Price incl. tax. 19,00%
plus shipping
Delivery time:
11 days [EN] Items to be procured that can be ordered (no central warehouse item) - live request to the central warehouse directly in the cart or click the link below the price >Quantity available?<
pce

We always deliver the latest available article version.

Note:
The installation of electrical devices may only be carried out by an approved electrician and, in the case of high-voltage systems (> = 400V and country-specific nominal power), only with the consent of the respective electricity network operator.

Details

Accessory
bought
Useful
Interesting

Connectable conductor cross section fine-strand without cable end sleeve=0,5..6 mm², Connectable conductor cross section fine-strand with cable end sleeve=0,5..6 mm², Connectable conductor cross section solid-core=0,5..10 mm², Connectable conductor cross section multi-wired=0,5..6 mm², Rated current In=41 A, Rated voltage=2000 V, Type of electrical connection 1=Screw connection, Type of electrical connection 2=Screw connection, Number of levels=1, Number of clamp positions per level=2, Mounting method=DIN rail (top hat rail) 35 mm, Material insulation body=Other, Operating temperature=-60..105 °C, Inflammability class of insulation material according to with UL94=V0, Width=10,2 mm, Depth=52 mm, Explosion-tested version ´Ex e´=yes, Closing plate required=yes, Colour=Grey, Internally connected stages=no

More product images:

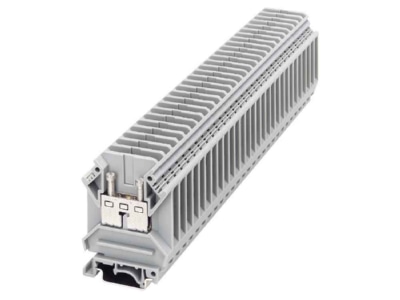

Product image 1 Phoenix UHSK S 2000 Feed through terminal block 10 2mm 41A
Product image 1

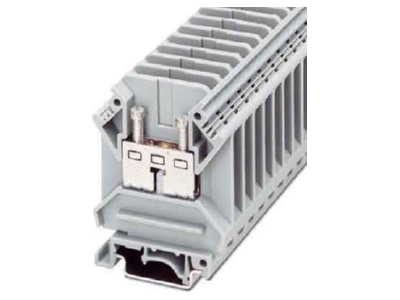

Product image 2 Phoenix UHSK S 2000 Feed through terminal block 10 2mm 41A
Product image 2
