Source photo: www.EIB3D.com

DC-power supply 85...264V/24V 12W STEP-PS/1AC/24DC/0.5

EAN/GTIN: 4046356519953
Manufacturer: Phoenix
Manufacturer no.: STEP-PS/1AC/24DC/0.5
Manufact.-SKU: 2868596
Customs tariff no.: 85044030
Similar top items: Show now & compare
31,68 €
Select local currency
Price incl. tax. 19,00%
plus shipping
Delivery time:
1-2 days [DE] 24 hour delivery, click here for more infoCentral warehouse item (regularly available) - live request to the central warehouse directly in the cart or click the link below the price >Quantity available?<
pce

We always deliver the latest available article version.

Note:
The installation of electrical devices may only be carried out by an approved electrician and, in the case of high-voltage systems (> = 400V and country-specific nominal power), only with the consent of the respective electricity network operator.

Details

Accessory
bought
Useful
Interesting

DC-power supply 85...264V/24V 12W Voltage type of supply voltage AC/DC, 1st secondary output voltage 24 ... 24V, Max. output current 1 0,5A, Max. output current 2 0,55A, Max. output current 3 1A, Short-circuit-proof, Rated supply voltage at AC 50 Hz 85 ... 264V, Rated supply voltage at AC 60 Hz 85 ... 264V, Rated supply voltage at DC 95 ... 250V, Output voltage stabilized, Power consumption 0,13VA, Power output 12W, Stabilized, Type of electric connection Screw connection, Rail mounting possible, Suitable for DIN installation panels, Width in number of modular spacings 1, Built-in height 90mm, Width 18mm, Height 90mm, Depth 61mm, Suitable for safety functions, Degree of protection (IP) IP20

More product images:

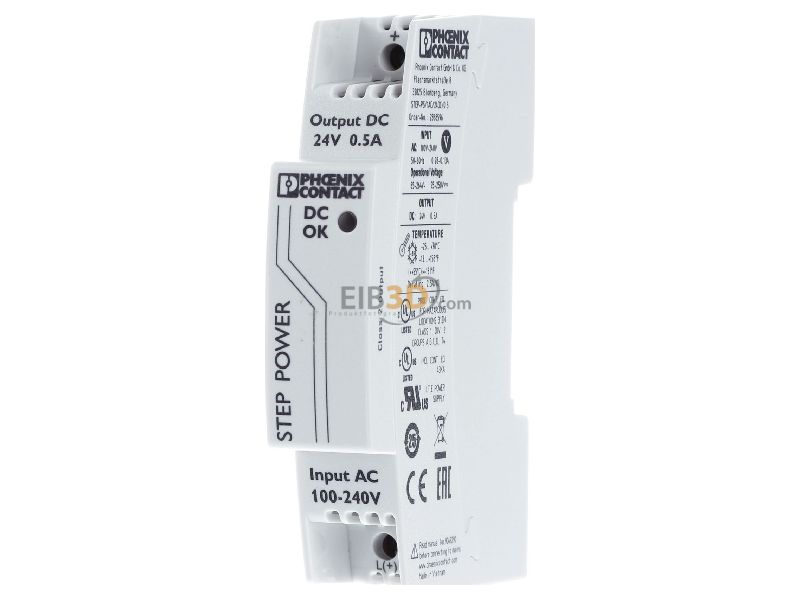

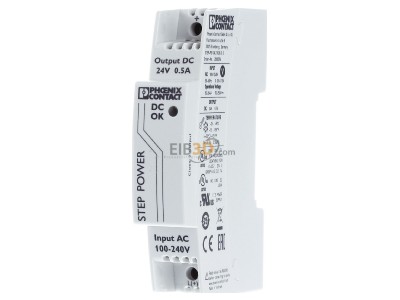

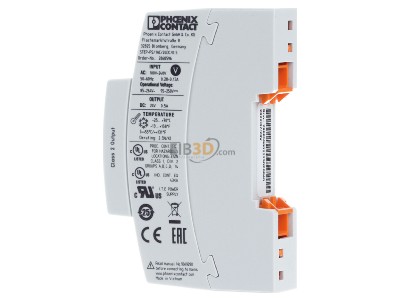

Front view Phoenix Contact STEP-PS/1AC/24DC/0.5 DC-power supply 100...240V/24V 12W
Front view

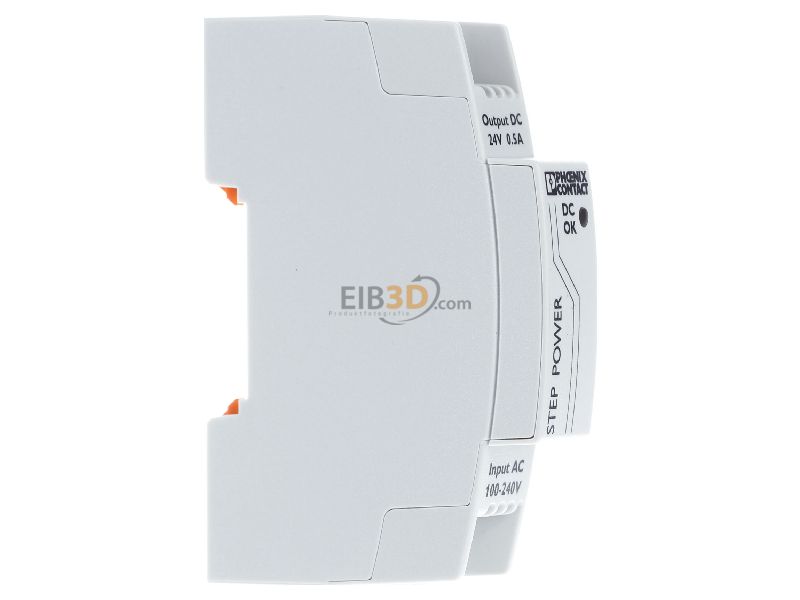

View on the left Phoenix Contact STEP-PS/1AC/24DC/0.5 DC-power supply 100...240V/24V 12W
View on the left
View on the right Phoenix Contact STEP-PS/1AC/24DC/0.5 DC-power supply 100...240V/24V 12W
View on the right

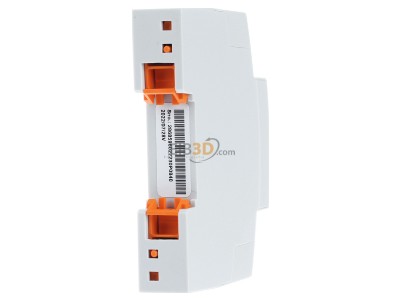

Back view Phoenix Contact STEP-PS/1AC/24DC/0.5 DC-power supply 100...240V/24V 12W
Back view

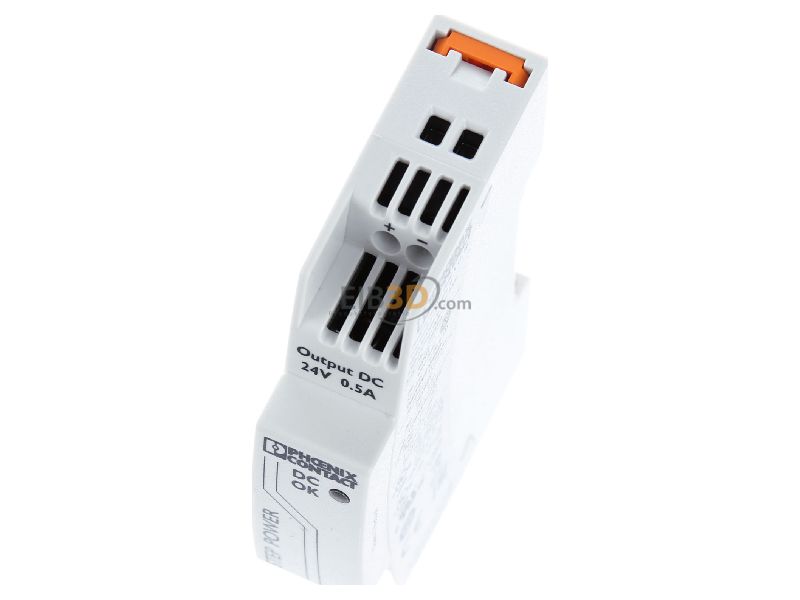

View up front Phoenix Contact STEP-PS/1AC/24DC/0.5 DC-power supply 100...240V/24V 12W
View up front

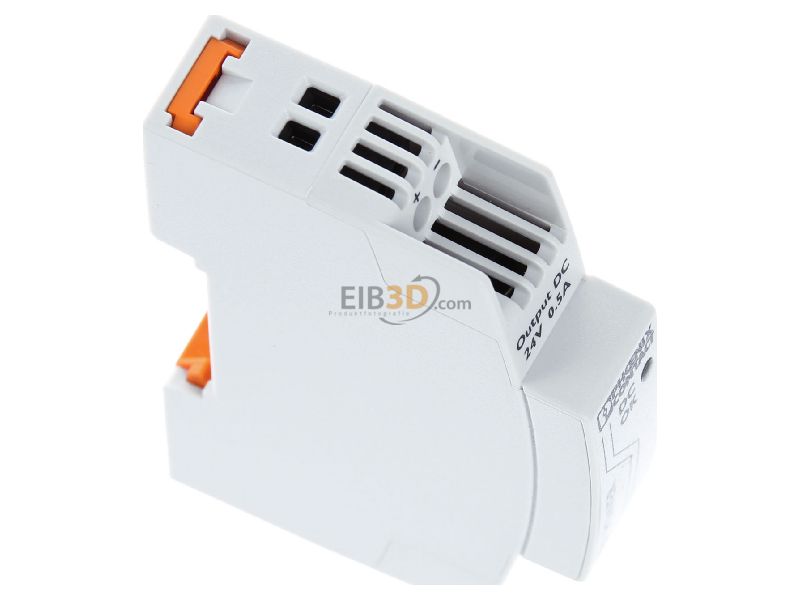

View top left Phoenix Contact STEP-PS/1AC/24DC/0.5 DC-power supply 100...240V/24V 12W
View top left

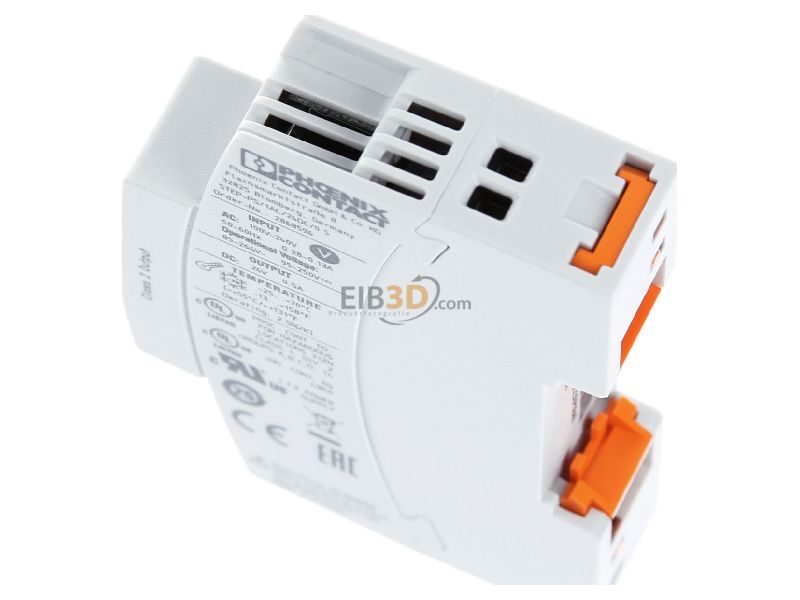

View top right Phoenix Contact STEP-PS/1AC/24DC/0.5 DC-power supply 100...240V/24V 12W
View top right

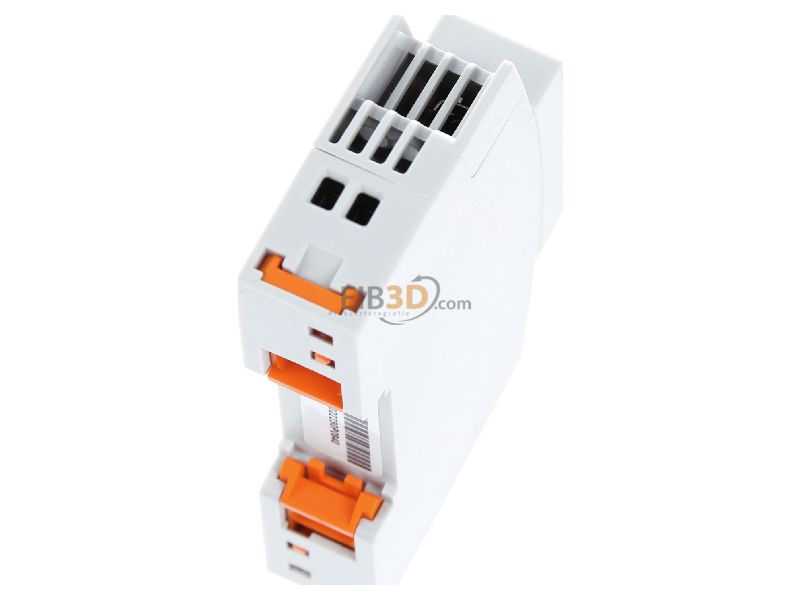

Top rear view Phoenix Contact STEP-PS/1AC/24DC/0.5 DC-power supply 100...240V/24V 12W
Top rear view
