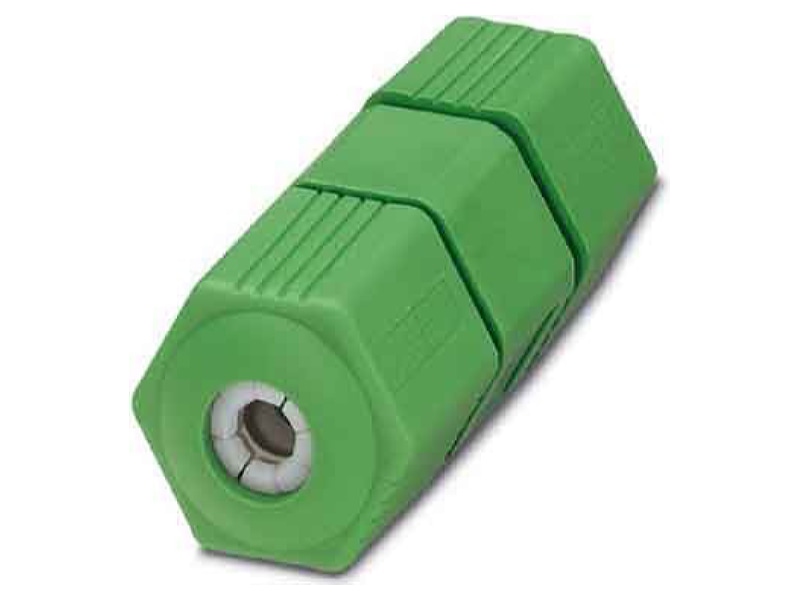

Connector plug-in installation Q1,5/3IDC13-13KU-KU
Source photo:
Phoenix
(fig. might be different or similar)

Connector plug-in installation Q1,5/3IDC13-13KU-KU

EAN/GTIN: 4017918146504
WEEE: DE 50738265
Manufacturer: Phoenix
Manufacturer no.: Q1,5/3IDC13-13KU-KU
Manufact.-SKU: 1670248
Customs tariff no.: 85369010
Similar top items: Show now & compare
10,66 EUR Price incl. tax. 19,00%
plus shipping
Delivery time:
11 days [EN] Items to be procured that can be ordered (no central warehouse item) - live request to the central warehouse directly in the cart or click the link below the price >Quantity available?<
pce

We always deliver the latest available article version.

Note:
The installation of electrical devices may only be carried out by an approved electrician and, in the case of high-voltage systems (> = 400V and country-specific nominal power), only with the consent of the respective electricity network operator.

Details

Accessory
bought
Useful
Interesting

Rated voltage=500 V, Rated current=17,5 A, Number of poles=3, Degree of protection (IP)=IP65, Number of connections per pole=1, Pole codification=1, 2, 3, Mechanical coding=no, Colour coding/contact insert=Green, Locking mechanism=None, With strain relief=yes, Halogen free=no, Continuity resistor=0,005 mOhm, Rated surge voltage=6 kV, Length=62,2 mm, Height=24 mm, Width=24 mm

More product images:

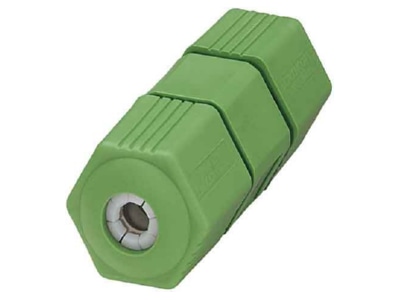

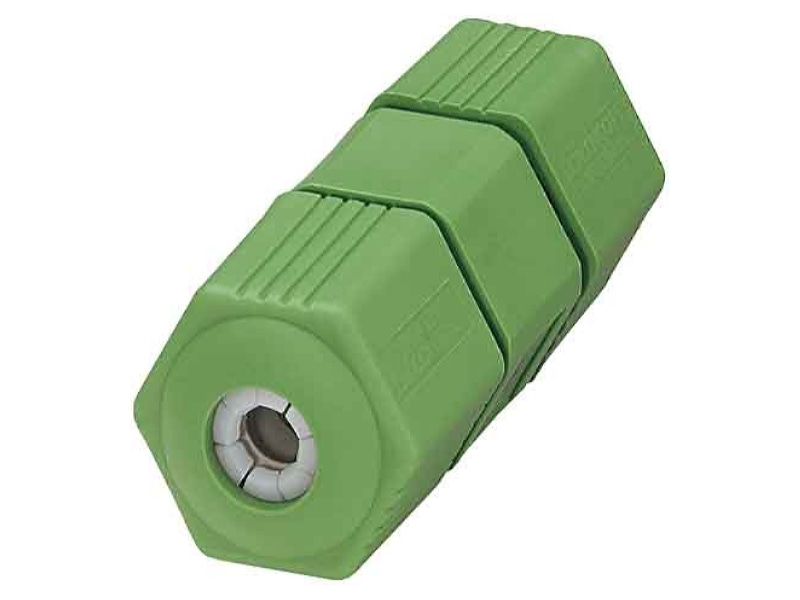

Product image 1 Phoenix Q1 5 3IDC13 13KU KU Connector plug in installation
Product image 1

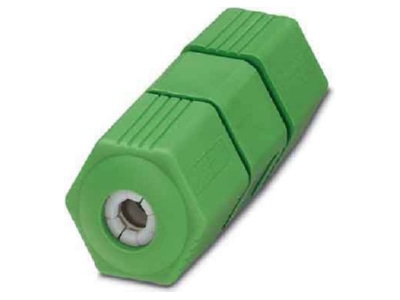

Product image 2 Phoenix Q1 5 3IDC13 13KU KU Connector plug in installation
Product image 2
