LED downlight 830/840 DN065B G4 #30397300
Source photo:
Philips Licht
(fig. might be different or similar)

LED downlight 830/840 DN065B G4 #30397300

EAN/GTIN: 8720169303973
WEEE: DE 57797264
Manufacturer: Philips Licht
Manufacturer no.: DN065B G4 #30397300
Manufact.-SKU: 30397300
Customs tariff no.: 94051190
Illuminants: included
Similar top items: Show now & compare
18,98 EUR Price incl. tax. 19,00%
plus shipping
Delivery time:
11 days [EN] Items to be procured that can be ordered (no central warehouse item) - live request to the central warehouse directly in the cart or click the link below the price >Quantity available?<
pce

We always deliver the latest available article version.

Note:
The installation of electrical devices may only be carried out by an approved electrician and, in the case of high-voltage systems (> = 400V and country-specific nominal power), only with the consent of the respective electricity network operator.

Details

Accessory
bought
Useful
Interesting

Energy efficiency class of the light source according to EU regulation 2019/2015=E, Suitable for surface mounting=no, Suitable for built-in mounting=yes, Suitable for wall mounting=no, Suitable for suspended mounting=no, Suitable for ceiling mounting=yes, Suitable for traverse mounting=no, Suitable for pedestal/floor mounting=no, Suitable for light-track mounting=no, Suitable for clamp-mounting=no, Suitable for low voltage cable system=no, Adjustability=Not adjustable, With movement sensor=no, With light sensor=no, Lamp type=LED not exchangeable, With light source=yes, Suitable for number of light sources=1, Lamp holder=None, Housing material=Other, Surface protection=Powder coating, Housing colour=White, Material cover=Plastic, opal, Surface brushed=no, Voltage type=AC, Nominal voltage=220..240 V, Nominal current=91 mA, Type of control gear=LED operating device current-controlled, With control gear=yes, Exchangeable control gear=no, Dimming 0-10 V=no, Dimming 1-10 V=no, Dimming DALI-2=no, Dimming DALI=no, Dimming DMX=no, Dimming DSI=no, Dimming potentiometer (integrated)=no, Dimming LineSwitch=no, Dimming manufacturer΄s proprietary system=no, Dimming mains voltage modulation=no, Dimming phase cut-off=no, Dimming phase cut-on=no, Dimming programmable=no, Dimming RF=no, Dimming Sine Wave Reduction=no, Dimming Touch and Dim=no, Dimming Zigbee=no, Dimming with push-button=no, No dim function=yes, Reflector=None, Light distributor=Diffuser lens/optic/panel, Light sharing=Symmetric, Reflector colour=Other, Beam angle=Extreme wide beam >80°, Light outlet=Direct, Total harmonic distortion=0,2, Rated life time L70/B50 at 25 °C=50000 h, Constant light output (CLO)=no, Degree of protection (IP)=IP20, Impact strength=IK03, Protection class=II, Rated ambient temperature according to IEC 62722-2-1=-20..40 °C, Suitable for lamp power=17,1..20,9 W, Max. system power=19 W, Colour of light=White, Colour temperature=3000..6500 K, Colour rendering index CRI=80-89, Luminous flux=2000 lm, Rated luminous flux according to IEC 62722-2-1=2000 lm, Power factor=0,9, Flickering value Pst LM=0,9, Colour of light adjustable=No, Luminous flux adjustable=No, Beam angle adjustable=No, Stroboscope effect value SVM=0,3, Height/depth=25 mm, Outer diameter=218 mm, Built-in height/depth=23 mm, Built-in diameter=203..208 mm, Type of wiring=Ending, Number of poles=2, Conductor cross section=0,75 mm², Connectable conductor cross section=0,75 mm², Connection type=Insulation displacement connector, Luminaire with limited surface temperature, sign ΄΄D according to EN 60598-2-24=no, Max. number of luminaires per miniature circuit breaker B16 (MCB)=126, Max. number of luminaires per miniature circuit breaker C16 (MCB)=154, Emergency power supply integrated=no, Filament test according to IEC 60695-2-11=650 °C - 30 s, Luminaire efficacy=105 lm/W, Photobiological safety according to EN 62471=RG1, Suitable for workplace according to EN 12464-1=yes, Covering of the luminaire with thermally insulating material possible=yes, IFTTT support available=no, Colour consistency (McAdam ellipse)=SDCM5, Unified Glare Ratio (UGR)=28, Compatible with Apple HomeKit=no, Operation by Bluetooth=no, Compatible with Google Assistant=no, Compatible with Amazon Alexa=no

More product images:

Product image Philips Licht DN065B G4  30397300 LED downlight 830 840
Product image

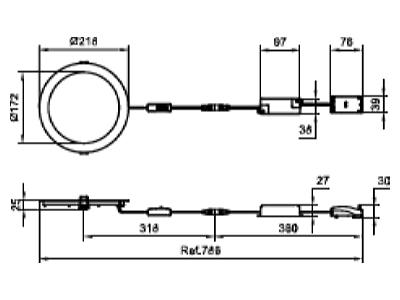

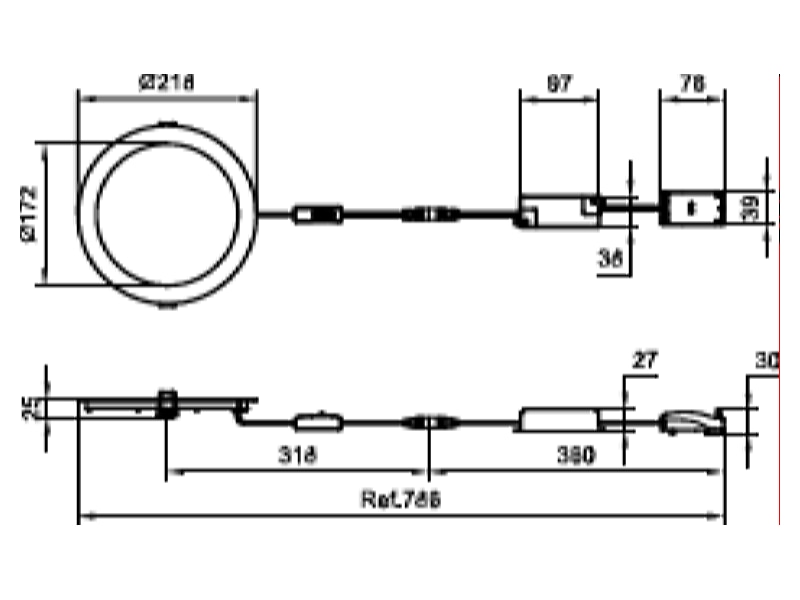

Dimensional drawing Philips Licht DN065B G4  30397300 LED downlight 830 840
Dimensional drawing
