Wall- and profile console AW G 15 51 FT
Source photo:
OBO
(fig. might be different or similar)

Wall- and profile console AW G 15 51 FT

EAN/GTIN: 4012196662715
WEEE: DE 64419409
Manufacturer: OBO
Manufacturer no.: AW G 15 51 FT
Manufact.-SKU: 6420614
Customs tariff no.: 73089059
Similar top items: Show now & compare
37,41 EUR Price incl. tax. 19,00%
plus shipping
Delivery time:
1 days [EN] 24 hour delivery, click here for more infoCentral warehouse item (regularly available) - live request to the central warehouse directly in the cart or click the link below the price >Quantity available?<
pce

We always deliver the latest available article version.

Note:
The installation of electrical devices may only be carried out by an approved electrician and, in the case of high-voltage systems (> = 400V and country-specific nominal power), only with the consent of the respective electricity network operator.

Details

Accessory
bought
Useful
Interesting

Length=510 mm, Width=510 mm, Height=75 mm, Suitable for cable management system width=500 mm, Model=Wall- and profile console, Angle=90 °, Load bearing capacity=1,5 kN, Suitable for circuit integrity=no, Material=Steel, Material quality=Other, Surface protection=Hot dip galvanized

More product images:

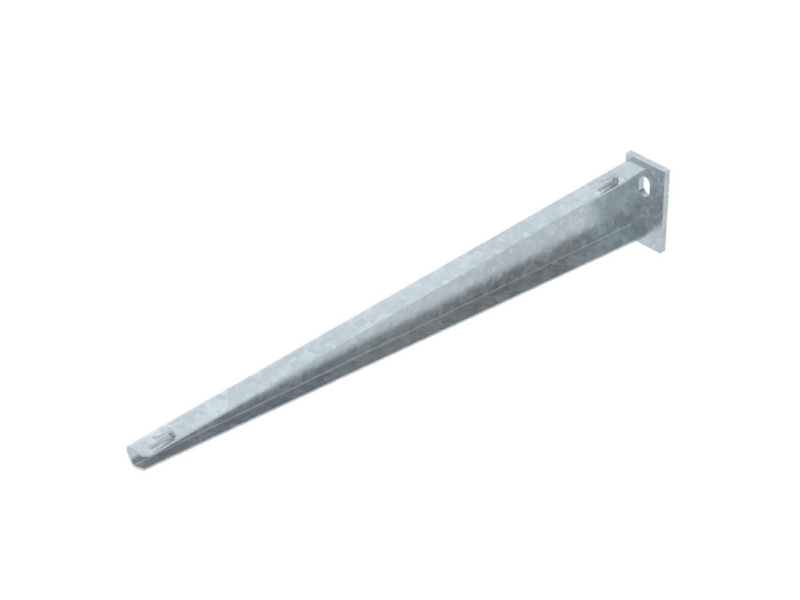

Product image OBO AW G 15 51 FT Wall  and profile console
Product image

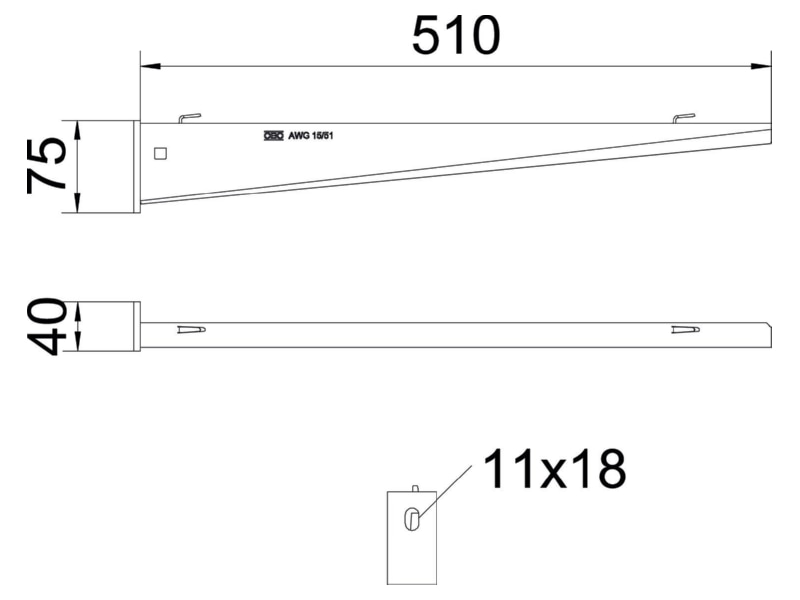

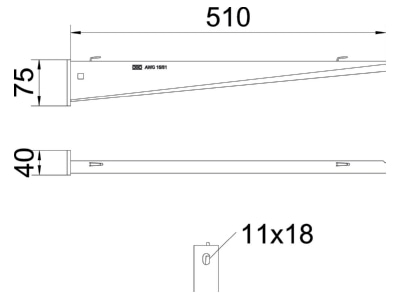

Dimensional drawing 1 OBO AW G 15 51 FT Wall  and profile console
Dimensional drawing 1

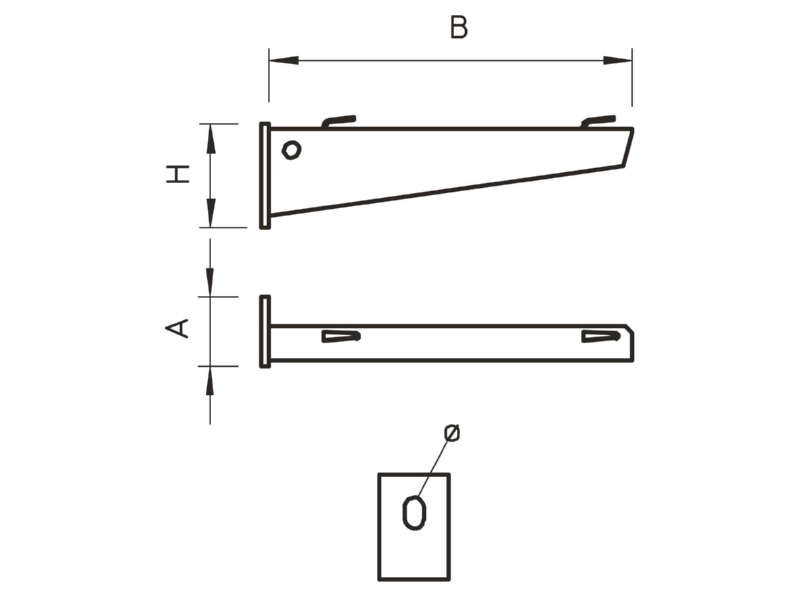

Dimensional drawing 2 OBO AW G 15 51 FT Wall  and profile console
Dimensional drawing 2
