Photovoltaics mounting system VT 30S FT
Source photo:
OBO
(fig. might be different or similar)

Photovoltaics mounting system VT 30S FT

EAN/GTIN: 4012197394684
WEEE: DE 64419409
Manufacturer: OBO
Manufacturer no.: VT 30S FT
Manufact.-SKU: 5901562
Customs tariff no.: 73269098
Similar top items: Show now & compare
189,27 EUR Price incl. tax. 19,00%
plus shipping
Delivery time:
11 days [EN] Items to be procured that can be ordered (no central warehouse item) - live request to the central warehouse directly in the cart or click the link below the price >Quantity available?<
Delivery takes place day-exactly. Article is very heavy and/or bulky! Article is >31kg and/or bulky | Package > 1.2m x 0.6m x 0.6m
pce

We always deliver the latest available article version.

Note:
The installation of electrical devices may only be carried out by an approved electrician and, in the case of high-voltage systems (> = 400V and country-specific nominal power), only with the consent of the respective electricity network operator.

Details

Accessory

Mounting Ground, Material Steel, Surface protection galvanized, Module width 1310 mm, Height at upper edge 2,188 m, Adjustable no, Tilt angle 30 °, Integrated cable duct no, Cable duct optional yes, Roof covering other, Roof penetration required no, Alignment vertical, Anchoring detached, Mass 34 kg

More product images:

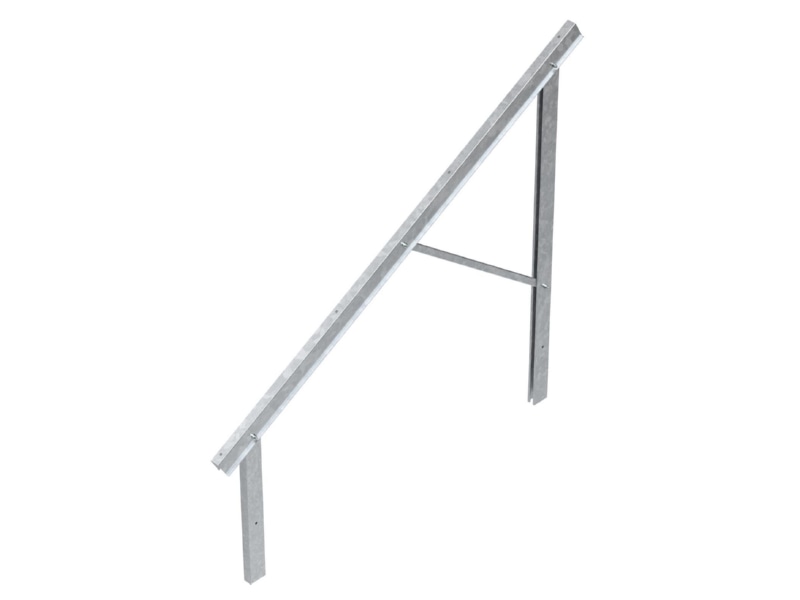

Product image OBO VT 30S FT Photovoltaics mounting system
Product image

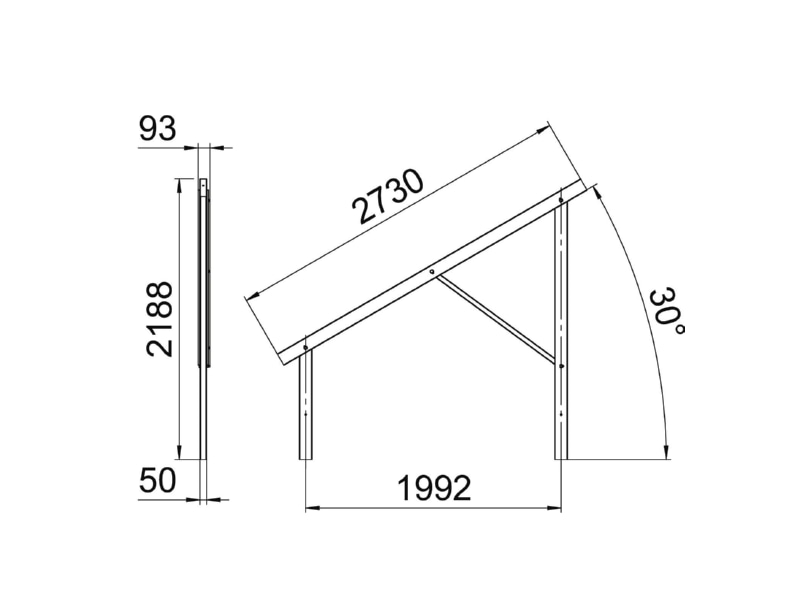

Dimensional drawing 1 OBO VT 30S FT Photovoltaics mounting system
Dimensional drawing 1

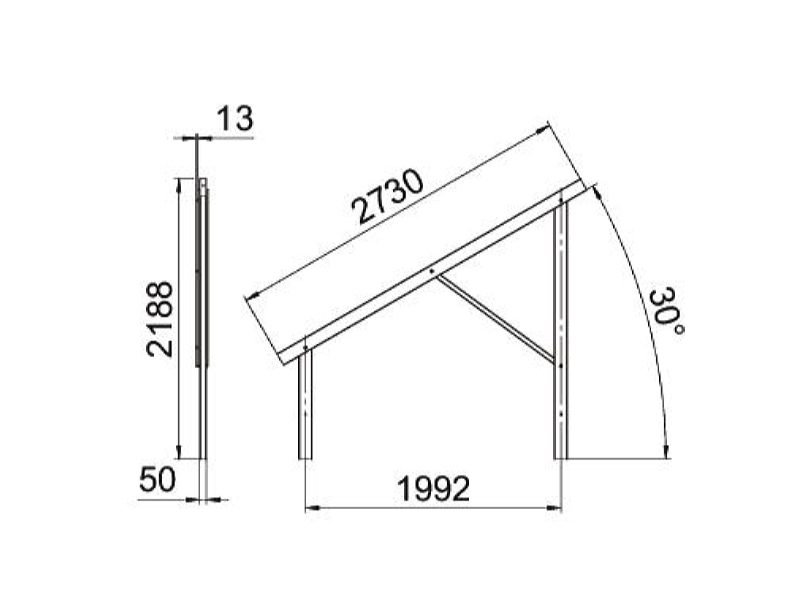

Dimensional drawing 2 OBO VT 30S FT Photovoltaics mounting system
Dimensional drawing 2
