I-profile 2000x80x42mm IS 8 200 FT
Source photo:
OBO
(fig. might be different or similar)

I-profile 2000x80x42mm IS 8 200 FT

EAN/GTIN: 4012196183791
WEEE: DE 64419409
Manufacturer: OBO
Manufacturer no.: IS 8 200 FT
Manufact.-SKU: 6337236
Customs tariff no.: 73089059
Similar top items: Show now & compare
125,87 EUR Price incl. tax. 19,00%
plus shipping
Delivery time:
11 days [EN] Items to be procured that can be ordered (no central warehouse item) - live request to the central warehouse directly in the cart or click the link below the price >Quantity available?<
Delivery takes place day-exactly. Article is very heavy and/or bulky! Article is >31kg and/or bulky | Package > 1.2m x 0.6m x 0.6m
pce

We always deliver the latest available article version.

Note:
The installation of electrical devices may only be carried out by an approved electrician and, in the case of high-voltage systems (> = 400V and country-specific nominal power), only with the consent of the respective electricity network operator.

Details

Accessory
bought
Useful
Interesting

Length=2000 mm, Width=80 mm, Height=42 mm, Slit width=70 mm, Profile shape=I-profile, Model=Singular profile, Type of perforation=Rim perforated, Hole width=14 mm, With toothing=no, Snap-off=no, Area moment of inertia Iy=6,26315 cm4, Area of inertia Iz=77,52929 cm4, Moment of resistance Wy=2,98245 cm³, Moment of resistance Wz=19,38232 cm³, Suitable for circuit integrity=no, Material=Steel, Material quality=Other, Surface protection=Hot dip galvanized

More product images:

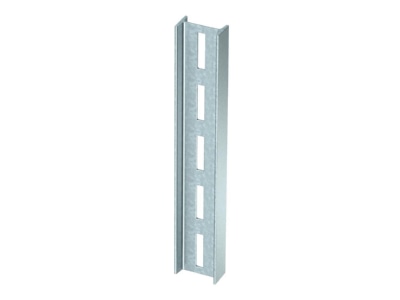

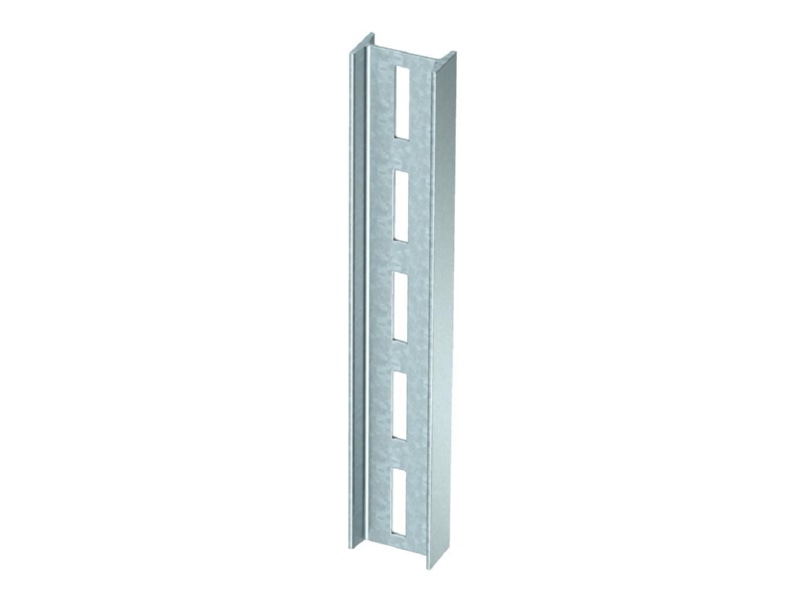

Product image OBO IS 8 200 FT I profile 2000x80x42mm
Product image

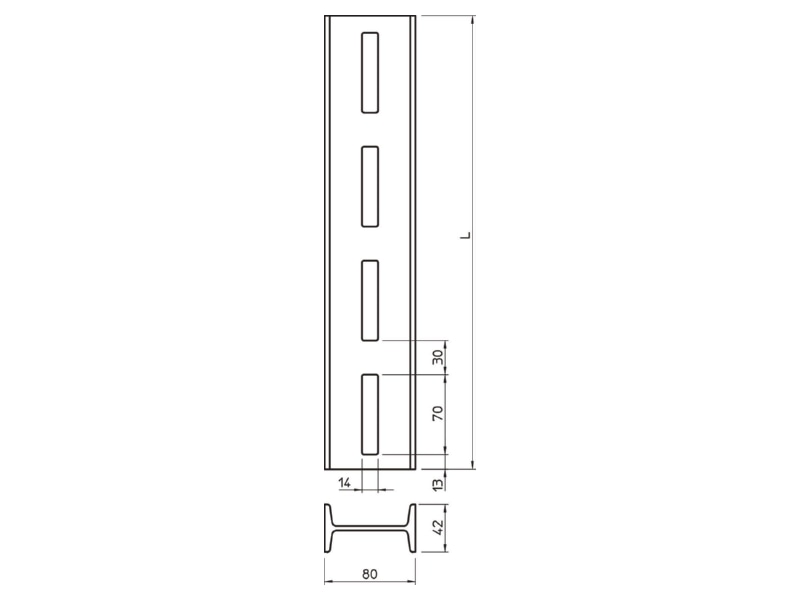

Dimensional drawing 1 OBO IS 8 200 FT I profile 2000x80x42mm
Dimensional drawing 1

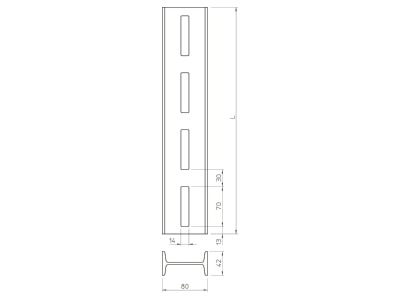

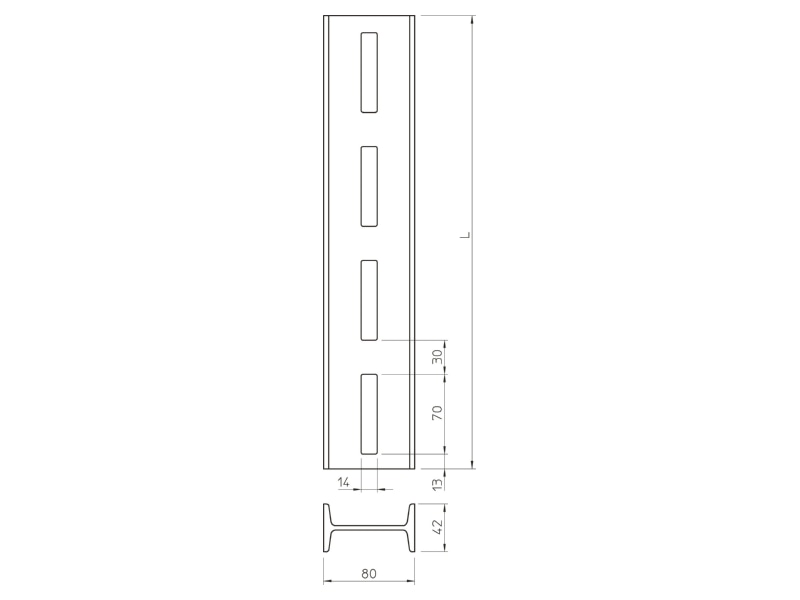

Dimensional drawing 2 OBO IS 8 200 FT I profile 2000x80x42mm
Dimensional drawing 2
