Equipotential bonding bar 1802 DC 5+1 CU
Source photo:
OBO
(fig. might be different or similar)

Equipotential bonding bar 1802 DC 5+1 CU

EAN/GTIN: 4012196681921
WEEE: DE 64419409
Manufacturer: OBO
Manufacturer no.: 1802 DC 5+1 CU
Manufact.-SKU: 5015870
Customs tariff no.: 85369010
Similar top items: Show now & compare
108,98 EUR Price incl. tax. 19,00%
plus shipping
Delivery time:
11 days [EN] Items to be procured that can be ordered (no central warehouse item) - live request to the central warehouse directly in the cart or click the link below the price >Quantity available?<
pce

We always deliver the latest available article version.

Note:
The installation of electrical devices may only be carried out by an approved electrician and, in the case of high-voltage systems (> = 400V and country-specific nominal power), only with the consent of the respective electricity network operator.

Details

Accessory
bought
Useful
Interesting

Potential equalization rail BigBar/5+1 conn. 1802 DC 5+1 CU design fixed structure, version only terminal, insulator, height 85mm, width 40mm, length 505mm, number of connections round conductor 8 mm 0, number of connections round conductor 10 mm 0, number of connections round conductor 8-10 mm 0 , number of connections flat conductor up to 30 mm 0, number of connections flat conductor up to 40 mm 0, number of connections cable up to 6 mm² rigid 0, number of connections cable up to 16 mm² rigid 0, number of connections cable up to 25 mm² rigid 0, number of the connections cable up to 95 mm² rigid 0, material of the contact rail copper, material of the terminal copper, main equipotential bonding rail for potential equalization according to DIN VDE 0100-410/-540 and lightning protection equipotential bonding according to DIN VDE 0185-305 (IEC 62305) • with separation point (Disconnect - DC) • for flexible wall mounting • complete with profile rail (FT) and screws • quick and easy installation of the connecting cable using carriage screws M10 • with spring washer (DIN137) to secure the screws against self-loosening

More product images:

Product image OBO 1802 DC 5 1 CU Equipotential bonding bar
Product image

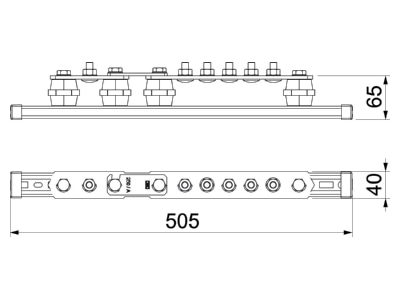

Dimensional drawing OBO 1802 DC 5 1 CU Equipotential bonding bar
Dimensional drawing
