Wall duct 165x53mm RAL9010 GA-53165RW
Source photo:
OBO
(fig. might be different or similar)

Wall duct 165x53mm RAL9010 GA-53165RW

EAN/GTIN: 4012196418503
WEEE: DE 64419409
Manufacturer: OBO
Manufacturer no.: GA-53165RW
Manufact.-SKU: 6112600
Customs tariff no.: 76109090
Order level:
(minimum)
2 meter
Similar top items: Show now & compare
278,56 EUR Price incl. tax. 19,00%
(for 2 meter)
plus shipping
Delivery time:
11 days [EN] Items to be procured that can be ordered (no central warehouse item) - live request to the central warehouse directly in the cart or click the link below the price >Quantity available?<
This article is per 2 meter orderable.
Delivery takes place day-exactly. Article is very heavy and/or bulky! Article is >31kg and/or bulky | Package > 1.2m x 0.6m x 0.6m
meter

We always deliver the latest available article version.

Note:
The installation of electrical devices may only be carried out by an approved electrician and, in the case of high-voltage systems (> = 400V and country-specific nominal power), only with the consent of the respective electricity network operator.

Details

Accessory
bought
Useful
Interesting

Wall duct 165x53mm RAL9010 Width 165mm, Depth 53mm, Length 2000mm, Number of covers 2, Covers supplied with the product, Cover width 1 45mm, Cover width 2 45mm, Cover width 3 0mm, Symmetric, Construction type rectangular, Material Aluminium, Material quality Other, Halogen free, Surface protection Untreated, Colour Clear white, RAL-number 9010, Construction rear wall (inner side) Continuous C-profile, With protection film, Number of plug-in partitions 2, Mounting method covers Inner lying

More product images:

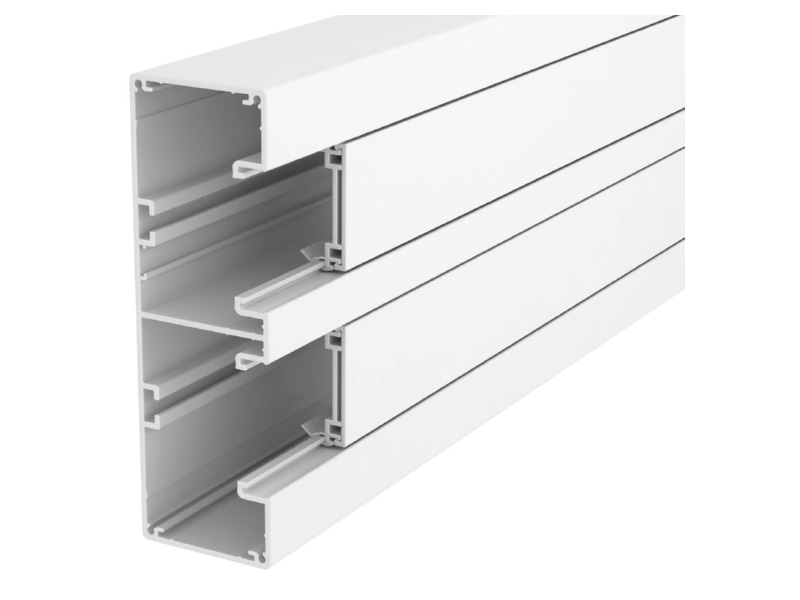

Product image OBO GA 53165RW Wall duct 165x53mm RAL9010
Product image

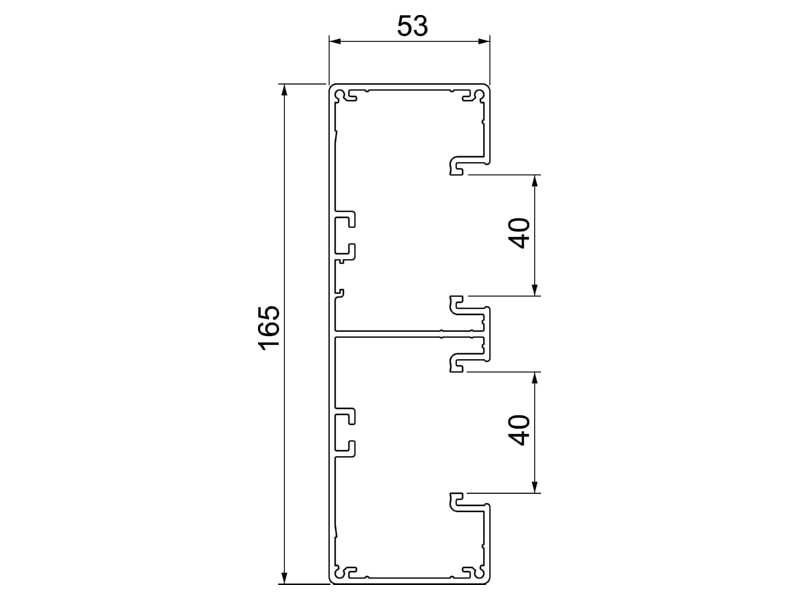

Dimensional drawing 1 OBO GA 53165RW Wall duct 165x53mm RAL9010
Dimensional drawing 1

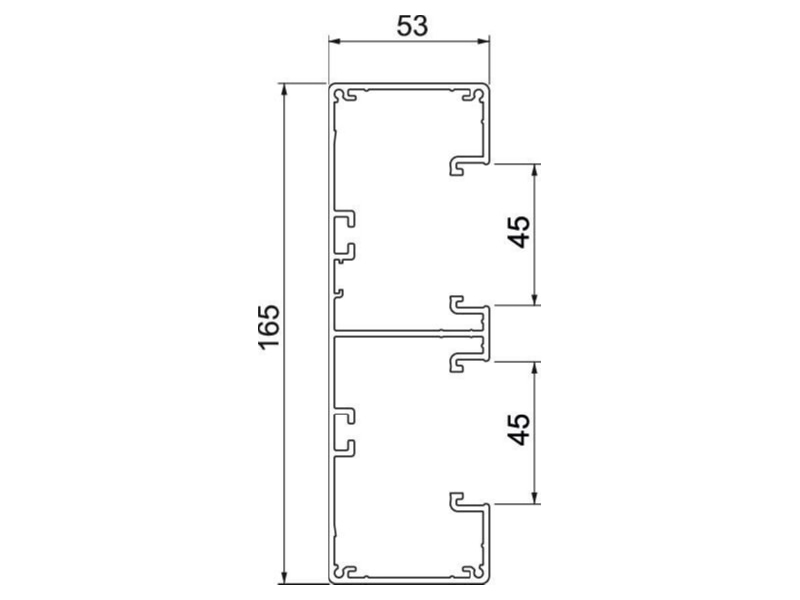

Dimensional drawing 2 OBO GA 53165RW Wall duct 165x53mm RAL9010
Dimensional drawing 2
