U-profile 600x50x50mm US 5 60 FT
Source photo:
OBO
(fig. might be different or similar)

U-profile 600x50x50mm US 5 60 FT

EAN/GTIN: 4012196601752
WEEE: DE 64419409
Manufacturer: OBO
Manufacturer no.: US 5 60 FT
Manufact.-SKU: 6340946
Customs tariff no.: 73089059
Similar top items: Show now & compare
27,94 EUR Price incl. tax. 19,00%
plus shipping
Delivery time:
11 days [EN] Items to be procured that can be ordered (no central warehouse item) - live request to the central warehouse directly in the cart or click the link below the price >Quantity available?<
pce

We always deliver the latest available article version.

Note:
The installation of electrical devices may only be carried out by an approved electrician and, in the case of high-voltage systems (> = 400V and country-specific nominal power), only with the consent of the respective electricity network operator.

Details

Accessory
bought
Useful
Interesting

Length=600 mm, Width=50 mm, Height=50 mm, Slit width=45 mm, Material thickness=2,5 mm, Profile shape=U-profile, Model=Singular profile, Type of perforation=3 sides punched, Hole width=11 mm, With toothing=no, Snap-off=no, Area moment of inertia Iy=8,31775 cm4, Area of inertia Iz=12,52808 cm4, Moment of resistance Wy=2,61242 cm³, Moment of resistance Wz=5,01123 cm³, Suitable for circuit integrity=yes, Material=Steel, Material quality=Other, Surface protection=Hot dip galvanized

More product images:

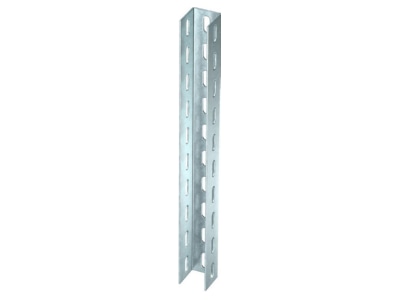

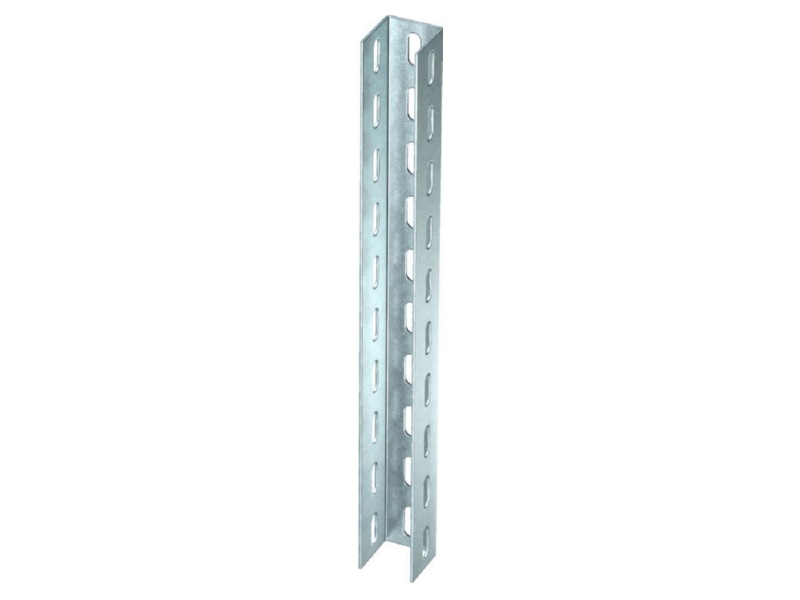

Product image OBO US 5 60 FT U profile 600x50x50mm
Product image

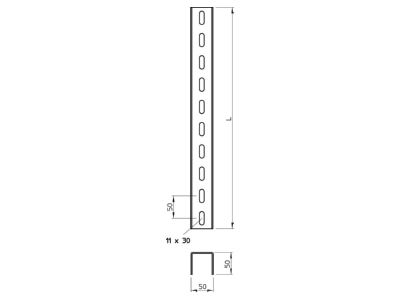

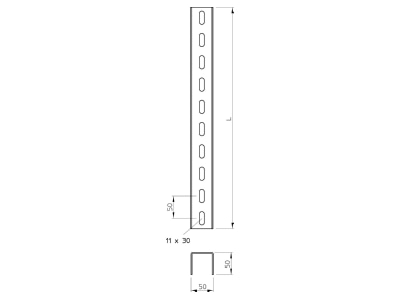

Dimensional drawing 1 OBO US 5 60 FT U profile 600x50x50mm
Dimensional drawing 1

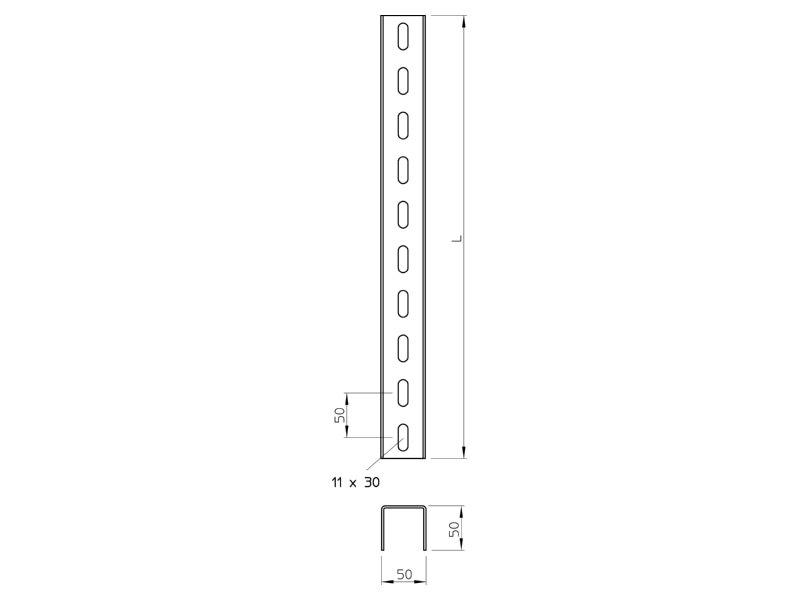

Dimensional drawing 2 OBO US 5 60 FT U profile 600x50x50mm
Dimensional drawing 2
