Terminal strip 5-p 0,8...2,5mm² 689
Source photo:
OBO
(fig. might be different or similar)

Terminal strip 5-p 0,8...2,5mm² 689

EAN/GTIN: 4012195159377
WEEE: DE 64419409
Manufacturer: OBO
Manufacturer no.: 689
Manufact.-SKU: 2017342
Customs tariff no.: 85369010
Order level:
(minimum)
50 pce
Similar top items: Show now & compare
130,71 EUR Price incl. tax. 19,00%
(for 50 pce)
plus shipping
Delivery time:
11 days [EN] Items to be procured that can be ordered (no central warehouse item) - live request to the central warehouse directly in the cart or click the link below the price >Quantity available?<
This article is per 50 pce orderable.
pce

We always deliver the latest available article version.

Note:
The installation of electrical devices may only be carried out by an approved electrician and, in the case of high-voltage systems (> = 400V and country-specific nominal power), only with the consent of the respective electricity network operator.

Details

Accessory
bought
Useful
Interesting

Terminal strip 5-p 0,8...2,5mm² Connectable conductor cross section fine-strand without cable end sleeve 0,8 ... 2,5mm², Rated voltage 660V, Type of electrical connection 1 Screw connection, Connection position Sideways, Number of poles 5, Number of clamp positions per pole 1, Mounting method Other, Material insulation body Other, Width/grid dimension 11mm, Height at lowest possible mounting height 21,8mm, Length 61,75mm, Colour Grey

More product images:

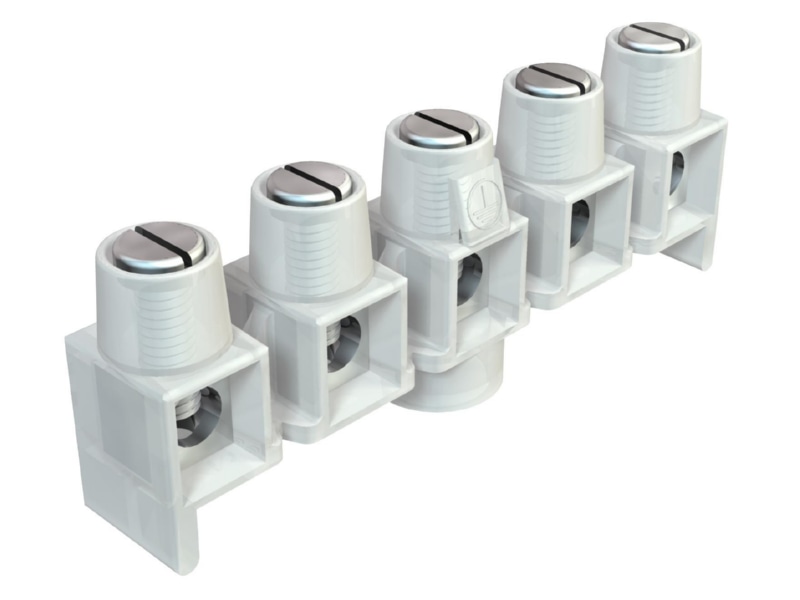

Product image OBO 689 Terminal strip 5 p 0 8   2 5mm
Product image

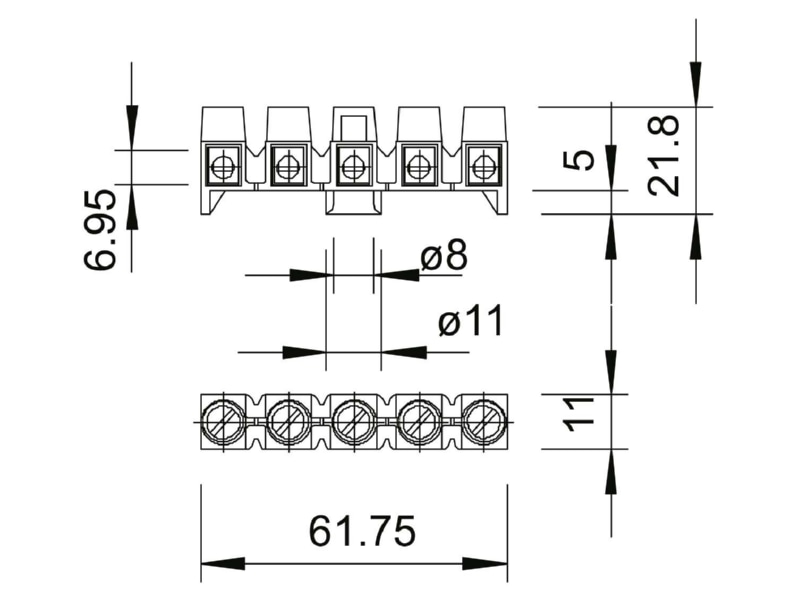

Dimensional drawing 1 OBO 689 Terminal strip 5 p 0 8   2 5mm
Dimensional drawing 1

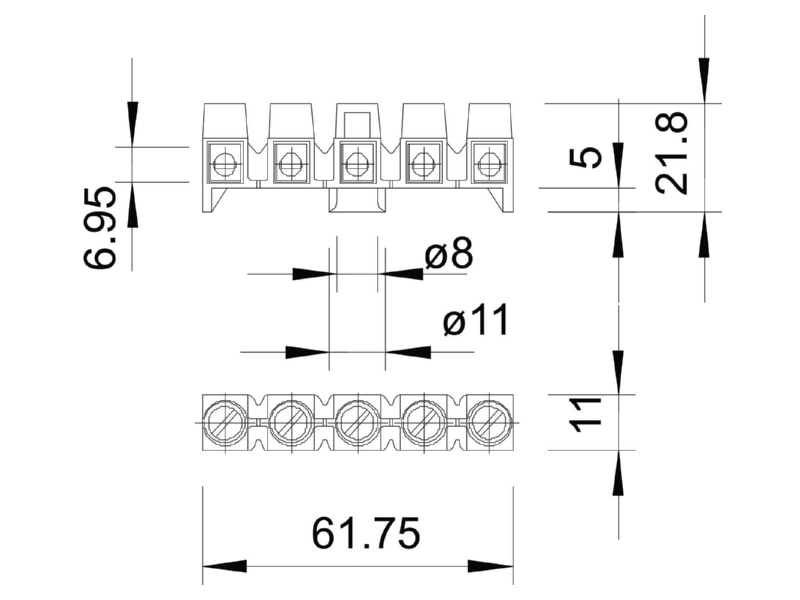

Dimensional drawing 2 OBO 689 Terminal strip 5 p 0 8   2 5mm
Dimensional drawing 2
