Surge protection for signal systems VF48-AC/DC-FS
Source photo:
OBO
(fig. might be different or similar)

Surge protection for signal systems VF48-AC/DC-FS

EAN/GTIN: 4012195812258
WEEE: DE 64419409
Manufacturer: OBO
Manufacturer no.: VF48-AC/DC-FS
Manufact.-SKU: 5097822
Customs tariff no.: 85363030
Similar top items: Show now & compare
79,88 EUR Price incl. tax. 19,00%
plus shipping
Delivery time:
11 days [EN] Items to be procured that can be ordered (no central warehouse item) - live request to the central warehouse directly in the cart or click the link below the price >Quantity available?<
pce

We always deliver the latest available article version.

Note:
The installation of electrical devices may only be carried out by an approved electrician and, in the case of high-voltage systems (> = 400V and country-specific nominal power), only with the consent of the respective electricity network operator.

Details

Accessory
bought
Useful
Interesting

Surge protection for signal systems Nominal voltage AC 48V, Nominal voltage DC 48V, Max. continuous voltage AC 60V, Nominal load current 20A, Nominal discharge surge current (8/20) (L-N) 0,7kA, Total discharge current (8/20) (L+N-PE) 2kA, With remote signalling contact, Signalling at the device Optic, Category type 3, Degree of protection (IP) IP20

More product images:

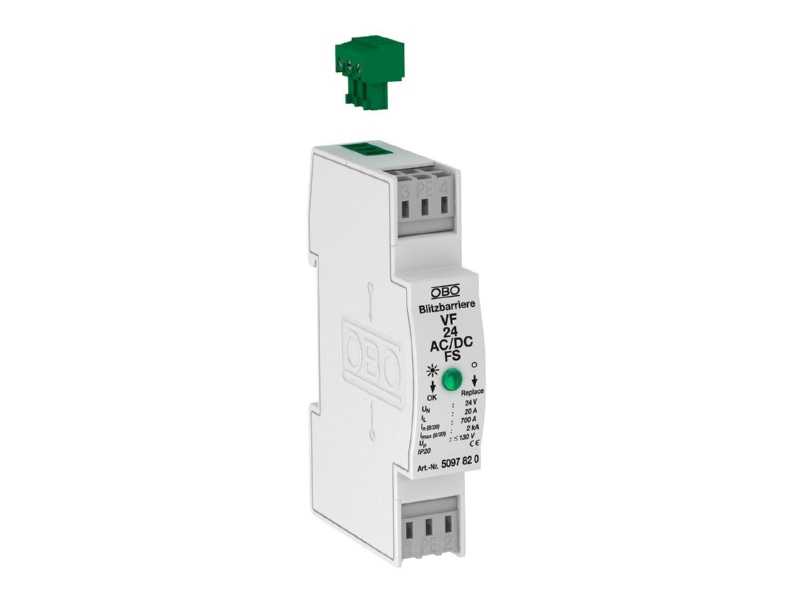

Product image OBO VF48 AC DC FS Surge protection for signal systems
Product image

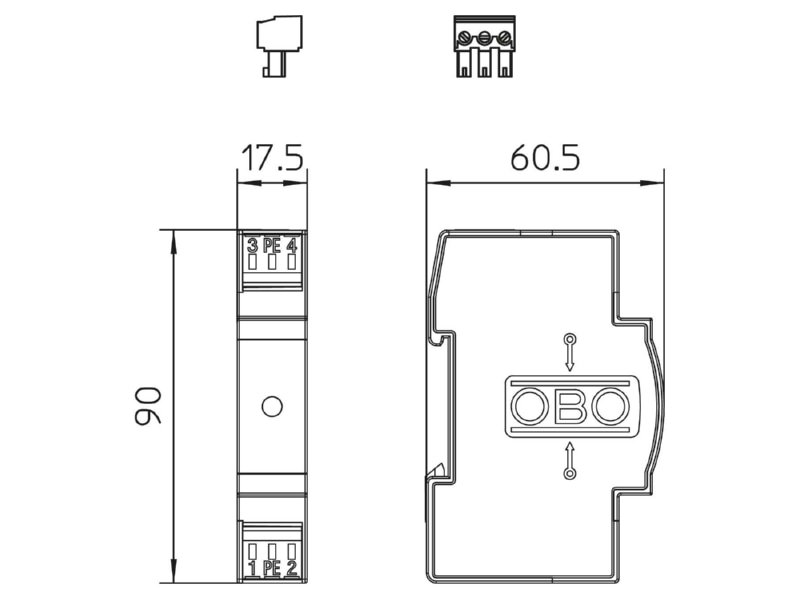

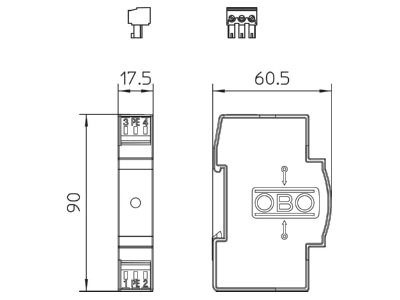

Dimensional drawing 1 OBO VF48 AC DC FS Surge protection for signal systems
Dimensional drawing 1

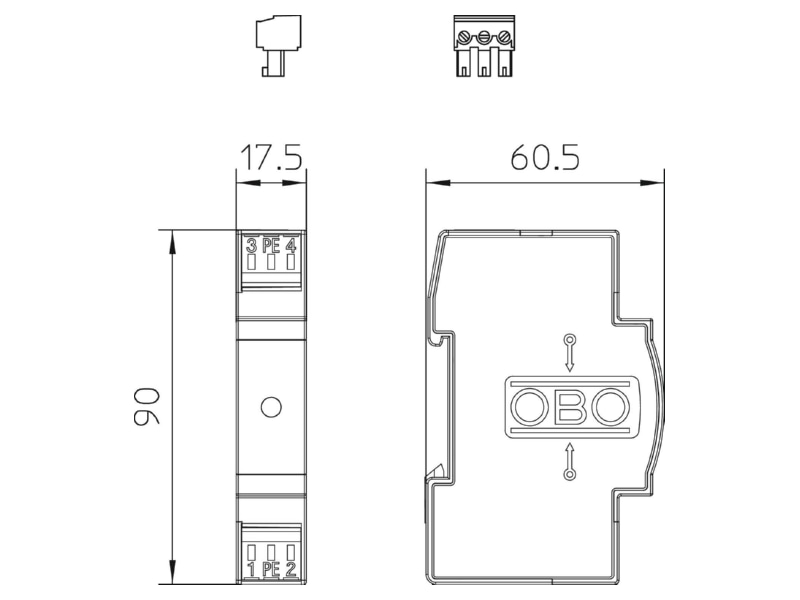

Dimensional drawing 2 OBO VF48 AC DC FS Surge protection for signal systems
Dimensional drawing 2
