C-profile 1000x30x15mm CM3015P1000FT
Source photo:
OBO
(fig. might be different or similar)

C-profile 1000x30x15mm CM3015P1000FT

EAN/GTIN: 4012195037934
WEEE: DE 64419409
Manufacturer: OBO
Manufacturer no.: CM3015P1000FT
Manufact.-SKU: 1109863
Customs tariff no.: 72166110
Order level:
(minimum)
10 meter
Similar top items: Show now & compare
152,63 EUR Price incl. tax. 19,00%
(for 10 meter)
plus shipping
Delivery time:
11 days [EN] Items to be procured that can be ordered (no central warehouse item) - live request to the central warehouse directly in the cart or click the link below the price >Quantity available?<
This article is per 10 meter orderable.
meter

We always deliver the latest available article version.

Note:
The installation of electrical devices may only be carried out by an approved electrician and, in the case of high-voltage systems (> = 400V and country-specific nominal power), only with the consent of the respective electricity network operator.

Details

Accessory
bought
Useful
Interesting

Length=1000 mm, Width=30 mm, Height=15 mm, Slit width=16 mm, Material thickness=1,5 mm, Profile shape=C-profile, Model=Singular profile, Type of perforation=None, With toothing=no, Snap-off=no, Area moment of inertia Iy=0,2392 cm4, Area of inertia Iz=1,2156 cm4, Moment of resistance Wy=0,29189999 cm³, Moment of resistance Wz=0,8104 cm³, Suitable for circuit integrity=no, Material=Steel, Material quality=Other, Surface protection=Hot dip galvanized

More product images:

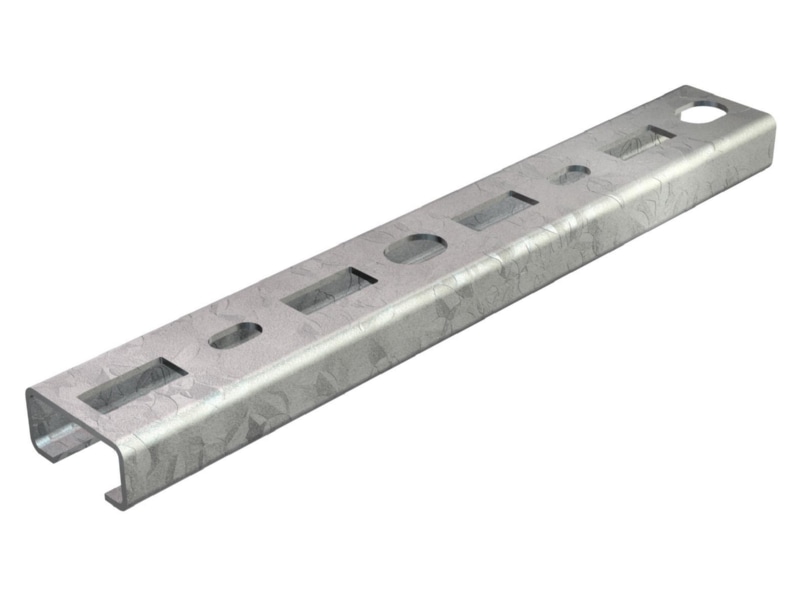

Product image OBO CM3015P1000FT C profile 1000x30x15mm
Product image

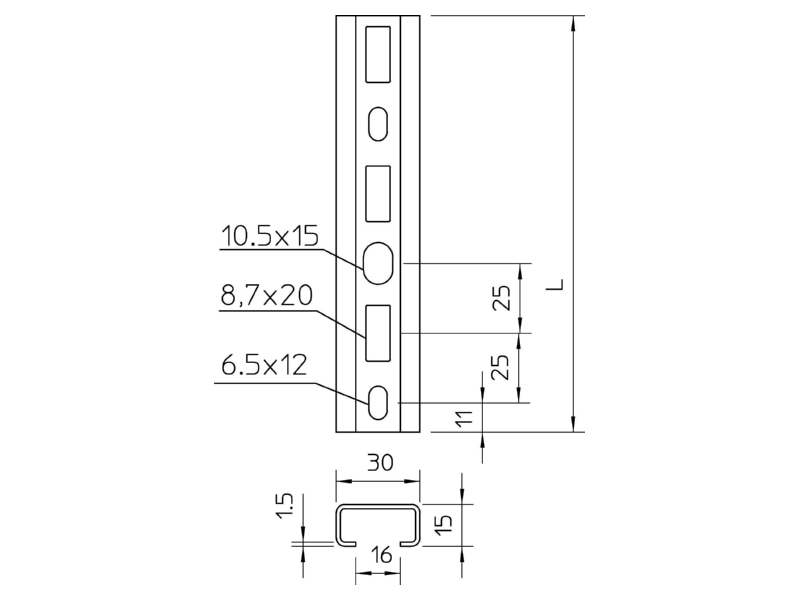

Dimensional drawing 1 OBO CM3015P1000FT C profile 1000x30x15mm
Dimensional drawing 1

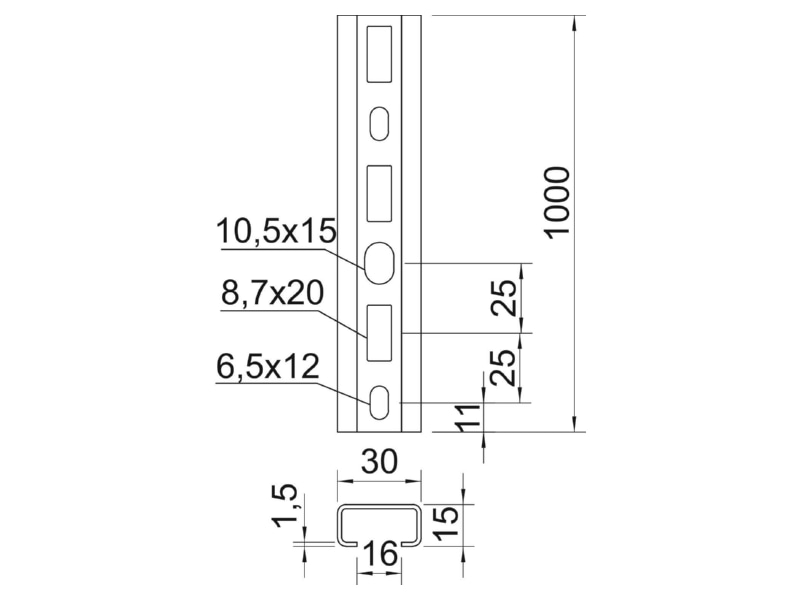

Dimensional drawing 2 OBO CM3015P1000FT C profile 1000x30x15mm
Dimensional drawing 2
Dimensional drawing 3 OBO CM3015P1000FT C profile 1000x30x15mm
Dimensional drawing 3
