Combined arrester for power systems VG-V50-1+NPE-280
Source photo:
OBO
(fig. might be different or similar)

Combined arrester for power systems VG-V50-1+NPE-280

EAN/GTIN: 4012196423217
WEEE: DE 64419409
Manufacturer: OBO
Manufacturer no.: VG-V50-1+NPE-280
Manufact.-SKU: 5093594
Customs tariff no.: 85363030
Similar top items: Show now & compare
237,44 EUR Price incl. tax. 19,00%
plus shipping
Delivery time:
11 days [EN] Items to be procured that can be ordered (no central warehouse item) - live request to the central warehouse directly in the cart or click the link below the price >Quantity available?<
pce

We always deliver the latest available article version.

Note:
The installation of electrical devices may only be carried out by an approved electrician and, in the case of high-voltage systems (> = 400V and country-specific nominal power), only with the consent of the respective electricity network operator.

Details

bought
Useful
Interesting

Combined arrester for power systems System configuration TN, System configuration TN-C, System configuration TN-C-S, System configuration TN-S, System configuration TT, Number of poles 1, Lightning impulse current (10/350 µs) 12,5kA, Max. continuous voltage AC 280V, Max. continuous voltage DC 350V, Nominal voltage AC 230V, Voltage protection level 1,3kV, Voltage protection level L-N 1,3kV, Voltage protection level N-PE 1,3kV, Follow current extinguishing capability 0,1kA, Max. conductor cross section solid (solid, stranded) 35mm², Max. conductor cross section flexible (fine-strand) 35mm², Mounting method Pre-mounted in housing, Construction size Other, Signalling at the device Optic, Test class Type 1 + 2

More product images:

Product image OBO VG V50 1 NPE 280 Combined arrester for power systems
Product image
Dimensional drawing 1 OBO VG V50 1 NPE 280 Combined arrester for power systems
Dimensional drawing 1

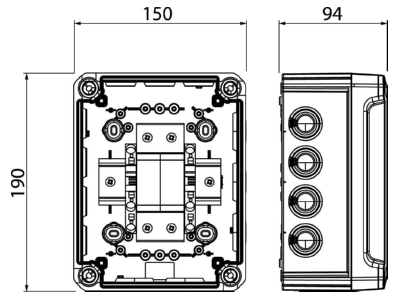

Dimensional drawing 2 OBO VG V50 1 NPE 280 Combined arrester for power systems
Dimensional drawing 2

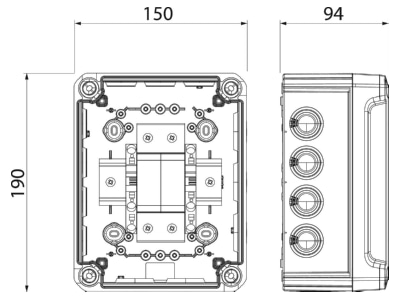

Dimensional drawing 3 OBO VG V50 1 NPE 280 Combined arrester for power systems
Dimensional drawing 3
