Combined arrester for power systems V50-1+NPE+FS-280
Source photo:
OBO
(fig. might be different or similar)

Combined arrester for power systems V50-1+NPE+FS-280

EAN/GTIN: 4012196159703
WEEE: DE 64419409
Manufacturer: OBO
Manufacturer no.: V50-1+NPE+FS-280
Manufact.-SKU: 5093531
Customs tariff no.: 85363030
Similar top items: Show now & compare
211,68 EUR Price incl. tax. 19,00%
plus shipping
Delivery time:
11 days [EN] Items to be procured that can be ordered (no central warehouse item) - live request to the central warehouse directly in the cart or click the link below the price >Quantity available?<
pce

We always deliver the latest available article version.

Note:
The installation of electrical devices may only be carried out by an approved electrician and, in the case of high-voltage systems (> = 400V and country-specific nominal power), only with the consent of the respective electricity network operator.

Details

Accessory
bought
Useful
Interesting

Combined arrester for power systems Number of poles 2, Lightning impulse current (10/350 µs) 12,5kA, Max. continuous voltage AC 280V, Nominal voltage AC 230V, Voltage protection level 1,3kV, Voltage protection level L-N 1,3kV, Max. conductor cross section solid (solid, stranded) 35mm², Max. conductor cross section flexible (fine-strand) 25mm², Mounting method DIN rail (top hat rail) 35 mm, Construction size 2 modular spacing, Remote signalling, Signalling at the device Optic, Test class Type 1 + 2

More product images:

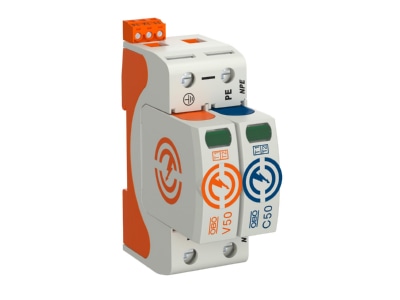

Product image OBO V50 1 NPE FS 280 Combined arrester for power systems
Product image

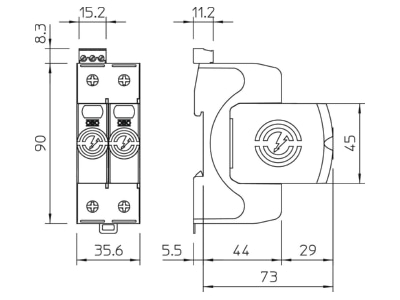

Dimensional drawing 1 OBO V50 1 NPE FS 280 Combined arrester for power systems
Dimensional drawing 1

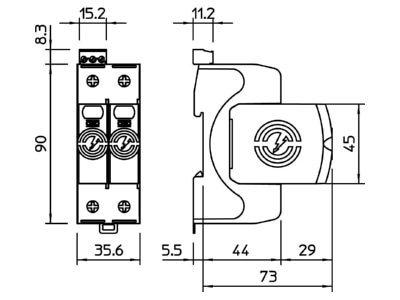

Dimensional drawing 2 OBO V50 1 NPE FS 280 Combined arrester for power systems
Dimensional drawing 2
