Underfloor device box insert with cover RKRN2UZD3R7VS25
Source photo:
OBO
(fig. might be different or similar)

Underfloor device box insert with cover RKRN2UZD3R7VS25

EAN/GTIN: 4012195868620
WEEE: DE 64419409
Manufacturer: OBO
Manufacturer no.: RKRN2UZD3R7VS25
Manufact.-SKU: 7409150
Customs tariff no.: 85381000
Similar top items: Show now & compare
417,31 EUR Price incl. tax. 19,00%
plus shipping
Delivery time:
11 days [EN] Items to be procured that can be ordered (no central warehouse item) - live request to the central warehouse directly in the cart or click the link below the price >Quantity available?<
pce

We always deliver the latest available article version.

Note:
The installation of electrical devices may only be carried out by an approved electrician and, in the case of high-voltage systems (> = 400V and country-specific nominal power), only with the consent of the respective electricity network operator.

Details

Accessory
bought
Useful
Interesting

Underfloor device box insert with cover Nominal dimension 274mm, Cassette height 94mm, Carpeting recess 25mm, Floor maintenance Wet, Model Round, Suitable for Sub-floor box surface mounting, Material Stainless steel, Number of conduit outlets 0, Colour conduit outlet Other, Chassis part for device cups, Number of device cups 3

More product images:

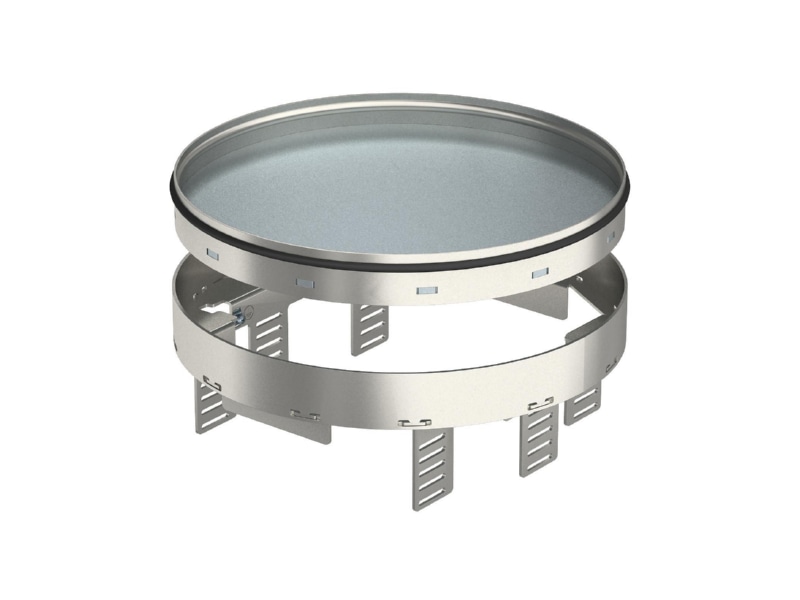

Product image OBO RKRN2UZD3R7VS25 Underfloor device box insert with cover
Product image

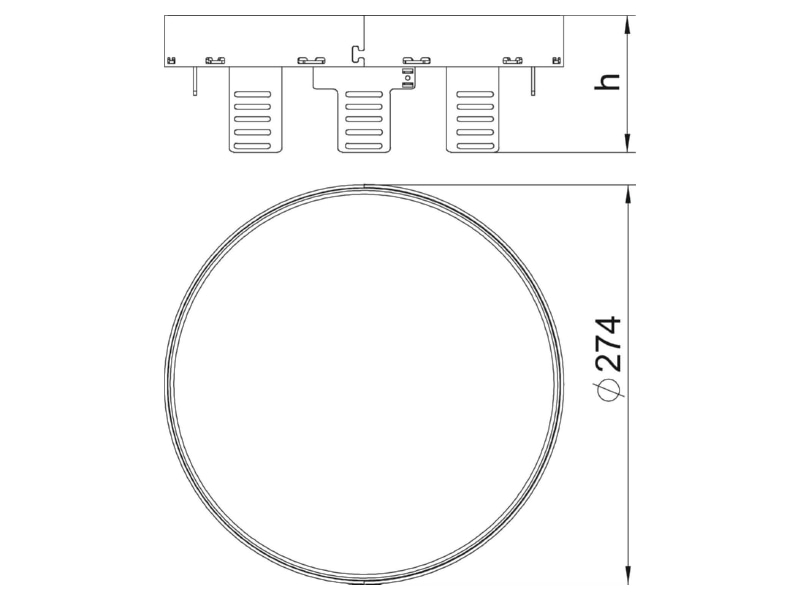

Dimensional drawing 1 OBO RKRN2UZD3R7VS25 Underfloor device box insert with cover
Dimensional drawing 1

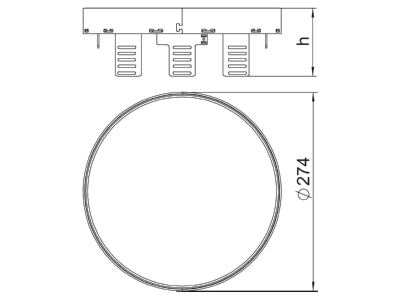

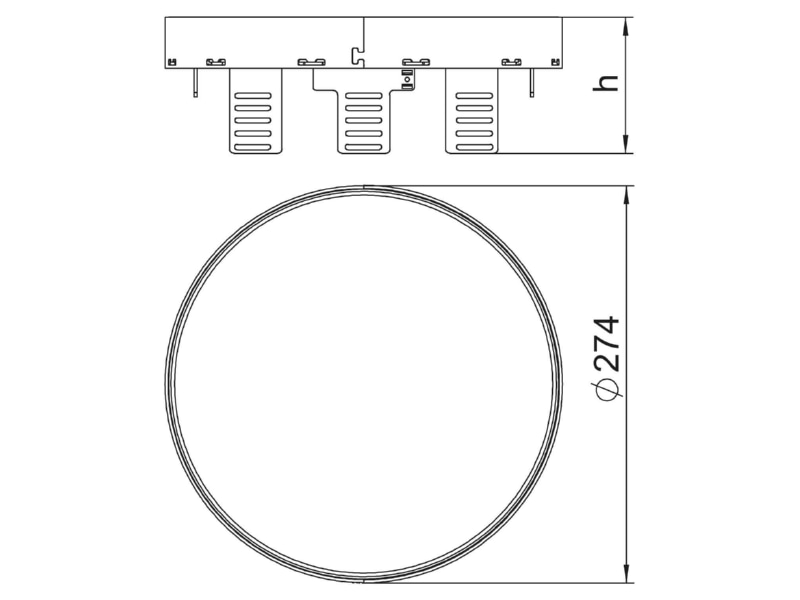

Dimensional drawing 2 OBO RKRN2UZD3R7VS25 Underfloor device box insert with cover
Dimensional drawing 2
