Underfloor device box insert with cover RKFR2 9 SL2V2 20
Source photo:
OBO
(fig. might be different or similar)

Underfloor device box insert with cover RKFR2 9 SL2V2 20

EAN/GTIN: 4012195869764
WEEE: DE 64419409
Manufacturer: OBO
Manufacturer no.: RKFR2 9 SL2V2 20
Manufact.-SKU: 7409470
Customs tariff no.: 85381000
Similar top items: Show now & compare
844,06 EUR Price incl. tax. 19,00%
plus shipping
Delivery time:
11 days [EN] Items to be procured that can be ordered (no central warehouse item) - live request to the central warehouse directly in the cart or click the link below the price >Quantity available?<
pce

We always deliver the latest available article version.

Note:
The installation of electrical devices may only be carried out by an approved electrician and, in the case of high-voltage systems (> = 400V and country-specific nominal power), only with the consent of the respective electricity network operator.

Details

Accessory
bought
Useful
Interesting

Underfloor device box insert with cover Nominal dimension 304mm, Cassette height 105mm, Carpeting recess 20mm, Floor maintenance Wet, Model Round, Suitable for Sub-floor box surface mounting, Material Stainless steel, Number of conduit outlets 1, Type of conduit outlet Tube cable outlet for floor duct, Material conduit outlet Stainless steel, Colour conduit outlet Natural colour, Chassis part for device cups, Number of appliances to build in 9, Number of device cups 3

More product images:

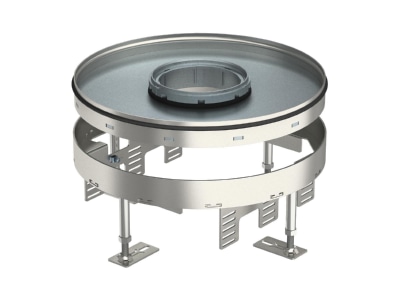

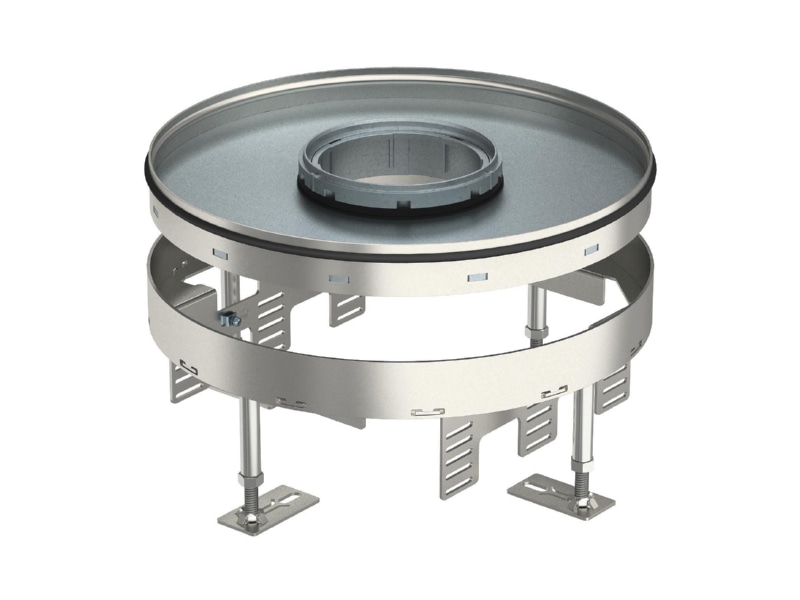

Product image OBO RKFR2 9 SL2V2 20 Underfloor device box insert with cover
Product image

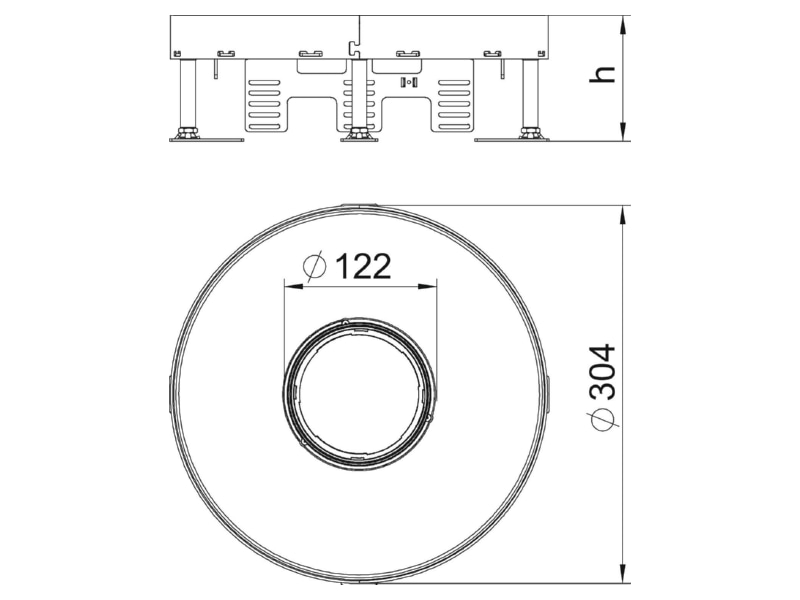

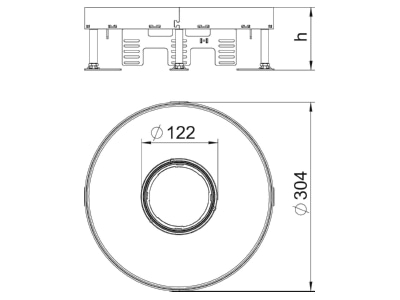

Dimensional drawing 1 OBO RKFR2 9 SL2V2 20 Underfloor device box insert with cover
Dimensional drawing 1

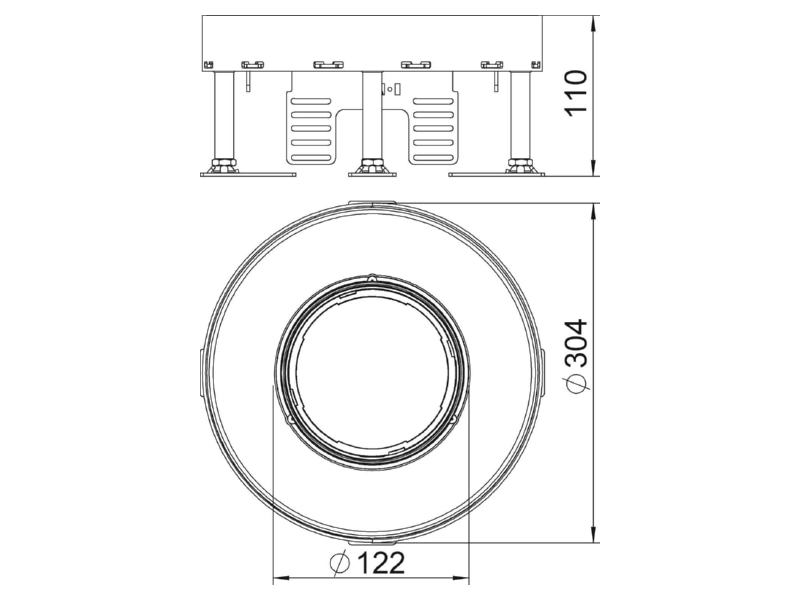

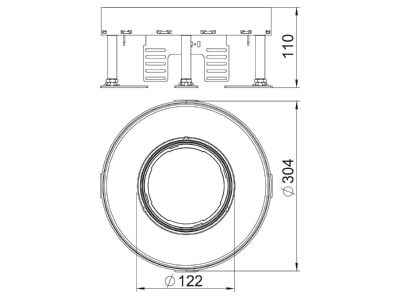

Dimensional drawing 2 OBO RKFR2 9 SL2V2 20 Underfloor device box insert with cover
Dimensional drawing 2

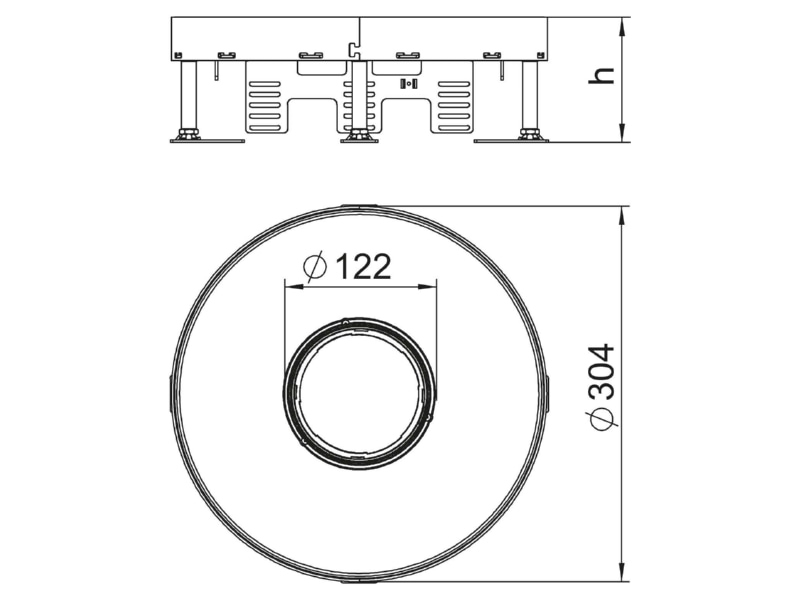

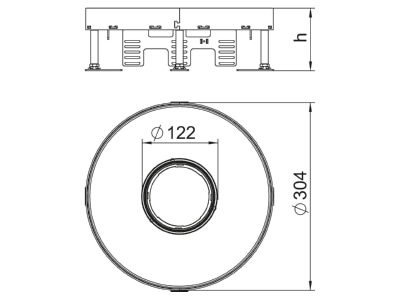

Dimensional drawing 3 OBO RKFR2 9 SL2V2 20 Underfloor device box insert with cover
Dimensional drawing 3
