Cable tray 60x500mm SKSM 650 FS
Source photo:
OBO
(fig. might be different or similar)

Cable tray 60x500mm SKSM 650 FS

EAN/GTIN: 4012195832560
WEEE: DE 64419409
Manufacturer: OBO
Manufacturer no.: SKSM 650 FS
Manufact.-SKU: 6059466
Customs tariff no.: 73089059
Order level:
(minimum)
3 meter
Similar top items: Show now & compare
220,20 EUR Price incl. tax. 19,00%
(for 3 meter)
plus shipping
Delivery time:
11 days [EN] Items to be procured that can be ordered (no central warehouse item) - live request to the central warehouse directly in the cart or click the link below the price >Quantity available?<
This article is per 3 meter orderable.
Delivery takes place day-exactly. Article is very heavy and/or bulky! Article is >31kg and/or bulky | Package > 1.2m x 0.6m x 0.6m
meter

We always deliver the latest available article version.

Note:
The installation of electrical devices may only be carried out by an approved electrician and, in the case of high-voltage systems (> = 400V and country-specific nominal power), only with the consent of the respective electricity network operator.

Details

Accessory
bought
Useful
Interesting

Height=60 mm, Width=500 mm, Material thickness=1,5 mm, Length=3050 mm, Useful cross section=29800 mm², With cover=no, Side wall perforation=yes, Mounting perforation in bottom=yes, NATO-mounting holes=no, Model=Integrated connector, Wide span model=no, Suitable for circuit integrity=no, Material=Steel, Stainless steel, pickled=no, Material quality=Other, Surface protection=Continuously galvanized

More product images:

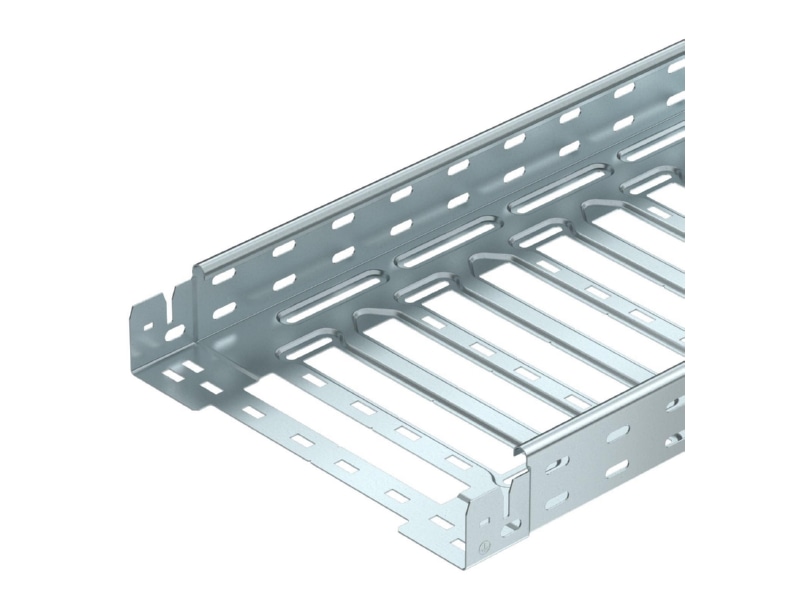

Product image OBO SKSM 650 FS Cable tray 60x500mm
Product image

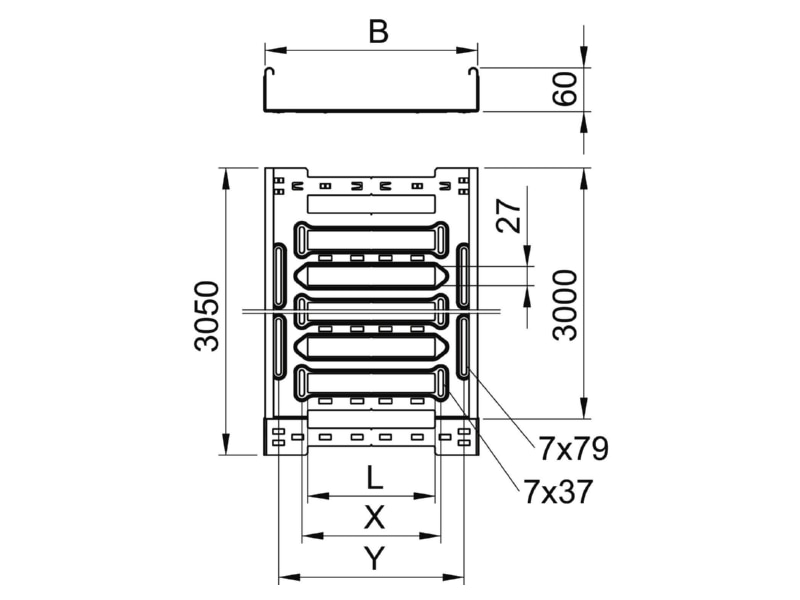

Dimensional drawing 1 OBO SKSM 650 FS Cable tray 60x500mm
Dimensional drawing 1

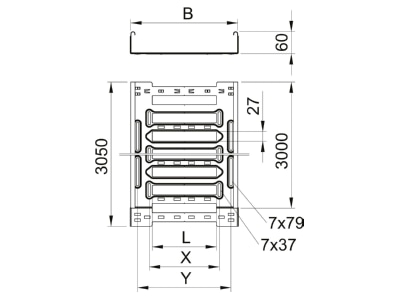

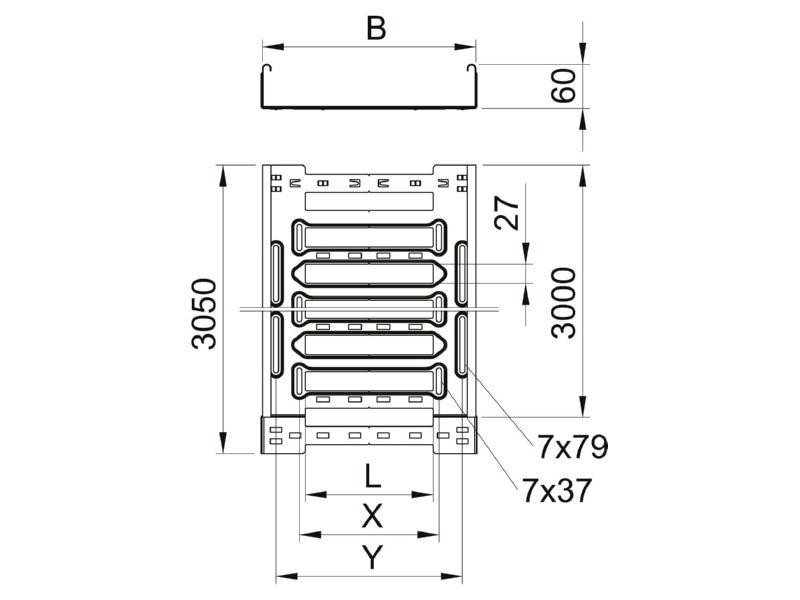

Dimensional drawing 2 OBO SKSM 650 FS Cable tray 60x500mm
Dimensional drawing 2
