Cable tray 50x50mm AZK 050 A2
Source photo:
OBO
(fig. might be different or similar)

Cable tray 50x50mm AZK 050 A2

EAN/GTIN: 4012196069071
WEEE: DE 64419409
Manufacturer: OBO
Manufacturer no.: AZK 050 A2
Manufact.-SKU: 6075150
Customs tariff no.: 73089059
Order level:
(minimum)
3 meter
Similar top items: Show now & compare
305,64 EUR Price incl. tax. 19,00%
(for 3 meter)
plus shipping
Delivery time:
11 days [EN] Items to be procured that can be ordered (no central warehouse item) - live request to the central warehouse directly in the cart or click the link below the price >Quantity available?<
This article is per 3 meter orderable.
Delivery takes place day-exactly. Article is very heavy and/or bulky! Article is >31kg and/or bulky | Package > 1.2m x 0.6m x 0.6m
meter

We always deliver the latest available article version.

Note:
The installation of electrical devices may only be carried out by an approved electrician and, in the case of high-voltage systems (> = 400V and country-specific nominal power), only with the consent of the respective electricity network operator.

Details

Accessory
bought
Useful
Interesting

Height=50 mm, Width=50 mm, Material thickness=1,5 mm, Length=3000 mm, Useful cross section=2500 mm², Side wall perforation=yes, Mounting perforation in bottom=yes, NATO-mounting holes=no, Model=Without connector, Wide span model=no, Suitable for circuit integrity=no, Material=Stainless steel, Stainless steel, pickled=no, Material quality=Stainless steel V2A, Surface protection=Other

More product images:

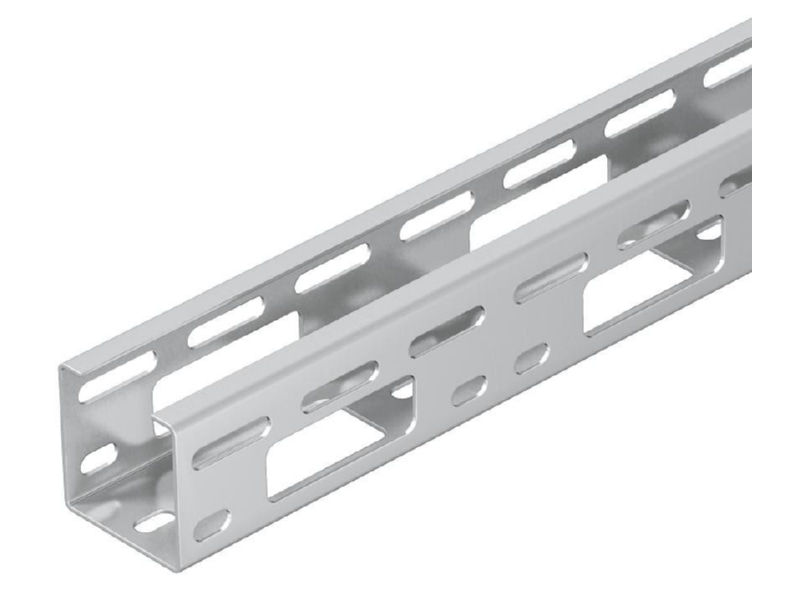

Product image OBO AZK 050 A2 Cable tray 50x50mm
Product image

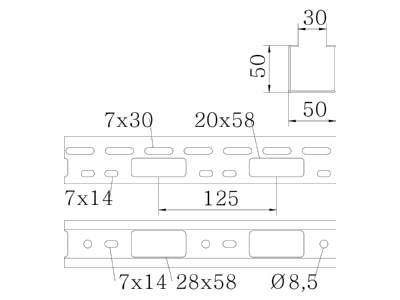

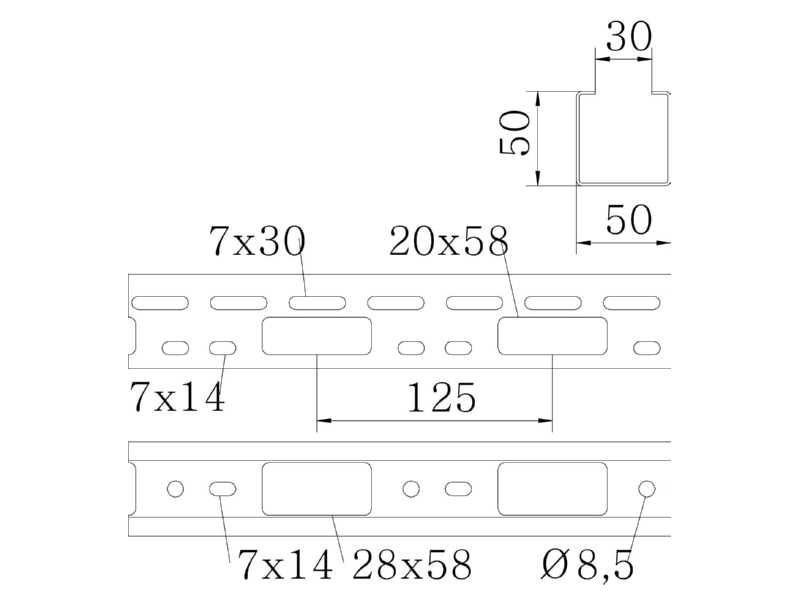

Dimensional drawing 1 OBO AZK 050 A2 Cable tray 50x50mm
Dimensional drawing 1

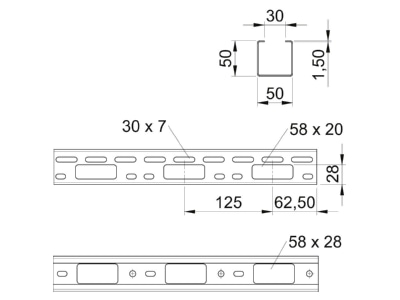

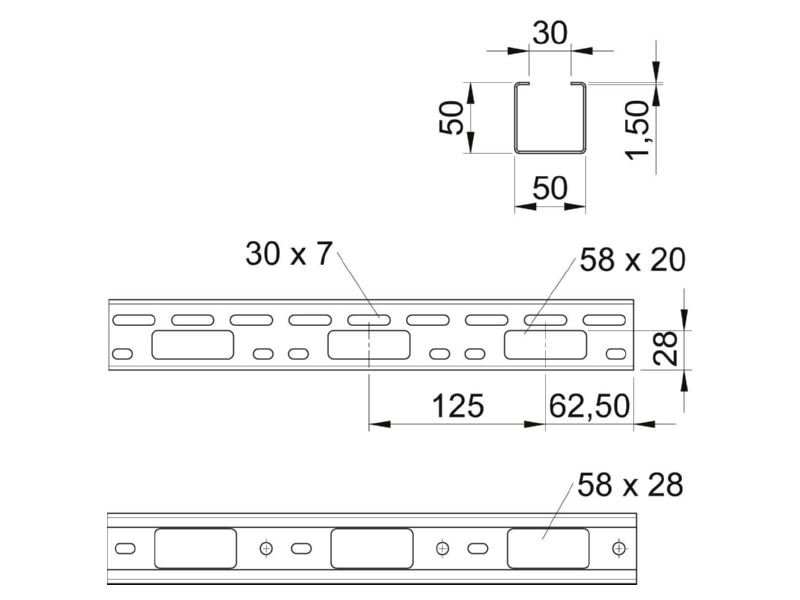

Dimensional drawing 2 OBO AZK 050 A2 Cable tray 50x50mm
Dimensional drawing 2
