Cable gland / core connector M50 V-TEC VM50 SW
Source photo:
OBO
(fig. might be different or similar)

Cable gland / core connector M50 V-TEC VM50 SW

EAN/GTIN: 4012195538455
WEEE: DE 64419409
Manufacturer: OBO
Manufacturer no.: V-TEC VM50 SW
Manufact.-SKU: 2022895
Customs tariff no.: 39269097
Similar top items: Show now & compare
4,55 EUR Price incl. tax. 19,00%
plus shipping
Delivery time:
11 days [EN] Items to be procured that can be ordered (no central warehouse item) - live request to the central warehouse directly in the cart or click the link below the price >Quantity available?<
pce

We always deliver the latest available article version.

Note:
The installation of electrical devices may only be carried out by an approved electrician and, in the case of high-voltage systems (> = 400V and country-specific nominal power), only with the consent of the respective electricity network operator.

Details

Accessory
bought
Useful
Interesting

Thread type=Metric, Nominal thread size metric/PG=50, Pitch thread=1,5 mm, Thread length=12 mm, Wrench width=54 mm, Hexagon angular dimension=60 mm, Suitable for cable diameter=23..35 mm, Material=Plastic, Material quality=Other, Surface protection=Untreated, Halogen free=yes, Glass-fibre reinforced=no, Degree of protection (IP)=IP68, Shock resistant=no, Colour=Black, Bend radius protection/trumpet flare=no, With locknut=no, Model=Straight, Multi seal area=no, Flat cable coupling=no, With strain relief=yes, Type of sealing=Sealing ring, Separable screw gland=no, Operating temperature=-20..65 °C, Explosion-tested version=no, For Ex-zone gas=None, For Ex-Zone dust=None

More product images:

Product image OBO V TEC VM50 SW Cable gland   core connector M50
Product image

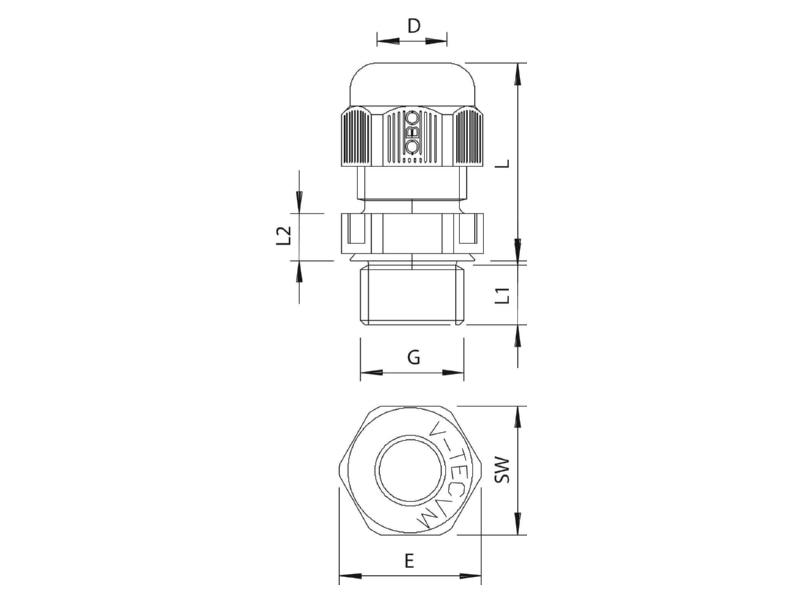

Dimensional drawing 1 OBO V TEC VM50 SW Cable gland   core connector M50
Dimensional drawing 1

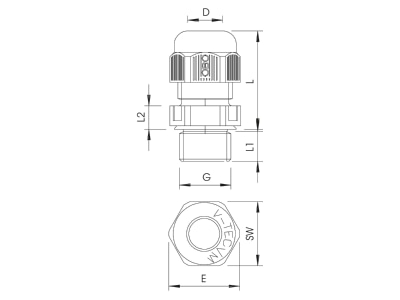

Dimensional drawing 2 OBO V TEC VM50 SW Cable gland   core connector M50
Dimensional drawing 2
