C-profile 800x41x21mm MS4121P0800FS
Source photo:
OBO
(fig. might be different or similar)

C-profile 800x41x21mm MS4121P0800FS

EAN/GTIN: 4012195848042
WEEE: DE 64419409
Manufacturer: OBO
Manufacturer no.: MS4121P0800FS
Manufact.-SKU: 1122957
Customs tariff no.: 72166110
Similar top items: Show now & compare
34,48 EUR Price incl. tax. 19,00%
plus shipping
Delivery time:
11 days [EN] Items to be procured that can be ordered (no central warehouse item) - live request to the central warehouse directly in the cart or click the link below the price >Quantity available?<
pce

We always deliver the latest available article version.

Note:
The installation of electrical devices may only be carried out by an approved electrician and, in the case of high-voltage systems (> = 400V and country-specific nominal power), only with the consent of the respective electricity network operator.

Details

Accessory
bought
Useful
Interesting

Length=800 mm, Width=41 mm, Height=21 mm, Slit width=22 mm, Material thickness=2 mm, Profile shape=C-profile, Model=Singular profile, Type of perforation=Back perforated, With toothing=yes, Snap-off=no, Area moment of inertia Iy=0,952339 cm4, Area of inertia Iz=4,5113 cm4, Moment of resistance Wy=0,888299 cm³, Moment of resistance Wz=2,20087 cm³, Suitable for circuit integrity=no, Material=Steel, Material quality=Other, Surface protection=Continuously galvanized

More product images:

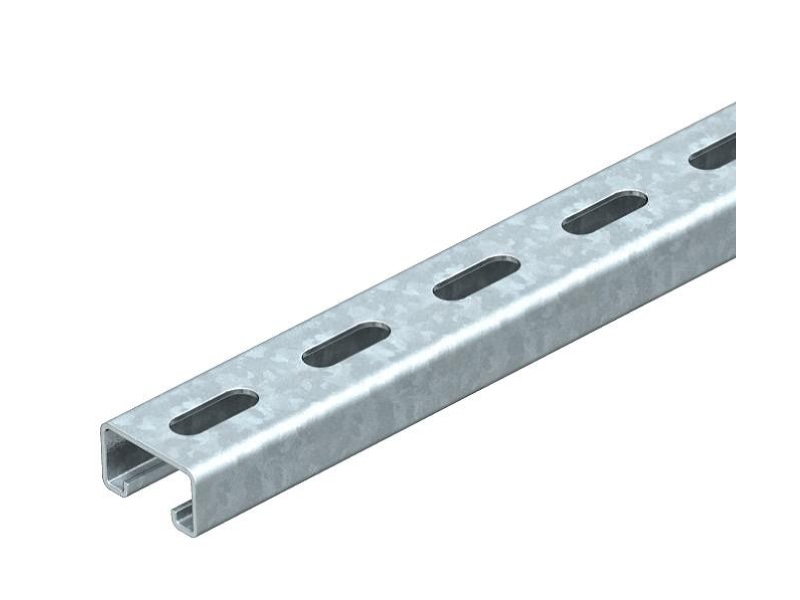

Product image OBO MS4121P0800FS C profile 800x41x21mm
Product image

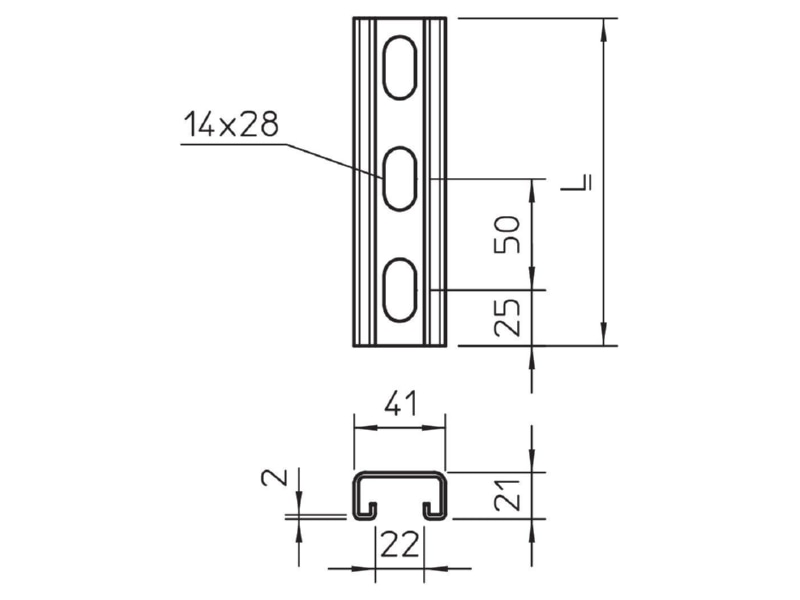

Dimensional drawing 1 OBO MS4121P0800FS C profile 800x41x21mm
Dimensional drawing 1
Dimensional drawing 2 OBO MS4121P0800FS C profile 800x41x21mm
Dimensional drawing 2
