Anchor bolt with External thread BZ312x180/30-105
Source photo:
OBO
(fig. might be different or similar)

Anchor bolt with External thread BZ312x180/30-105

EAN/GTIN: 4012197357634
WEEE: DE 64419409
Manufacturer: OBO
Manufacturer no.: BZ312x180/30-105
Manufact.-SKU: 3498705
Customs tariff no.: 73181900
Order level:
(minimum)
25 pce
Similar top items: Show now & compare
135,18 EUR Price incl. tax. 19,00%
(for 25 pce)
plus shipping
Delivery time:
11 days [EN] Items to be procured that can be ordered (no central warehouse item) - live request to the central warehouse directly in the cart or click the link below the price >Quantity available?<
This article is per 25 pce orderable.
pce

We always deliver the latest available article version.

Note:
The installation of electrical devices may only be carried out by an approved electrician and, in the case of high-voltage systems (> = 400V and country-specific nominal power), only with the consent of the respective electricity network operator.

Details

bought
Useful
Interesting

Bolt anchor BZ3 BZ312x180/30-105 Anchoring expansion anchor, anchor design external thread, fastening device nut, screw system external hexagon, anchor material steel, surface protection anchor galvanized/electrolytically galvanized, sleeve material steel, surface protection sleeve galvanized/electrolytically galvanized, thread type metric, thread dimension (metric ) 12, thread size (imperial) 7/16 inch, thread length 124mm, length 180mm, drill hole diameter 12mm, min. drill hole depth 83mm, pre-positioned installation, effective anchoring depth 70mm, max. clamping thickness 105mm, concrete type unbroken concrete, wrench size 19mm, number of nuts 1, number of panes 1, fireproof, fire protection class according to EN 13501-2 other, ETA earthquake rating C1 and C2, bolt anchor BZ3 for anchoring medium to heavy loads in cracked or non-cracked concrete. Suitable for high loads with small edge and center distances. To hit. European Technical Assessment ETA-19/0619, including characteristic values under fire exposure up to fire resistance period R 120. Proof of suitability for seismic effects, categories C1 and C2. Shock approval from the Federal Office for Civil Protection, Bern, Switzerland.

More product images:

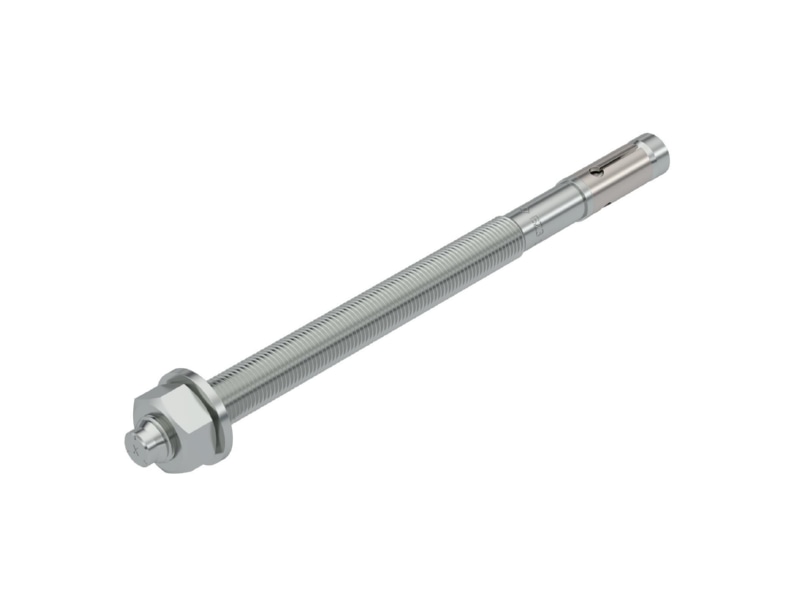

Product image OBO BZ312x180 30 105 Anchor bolt with External thread
Product image

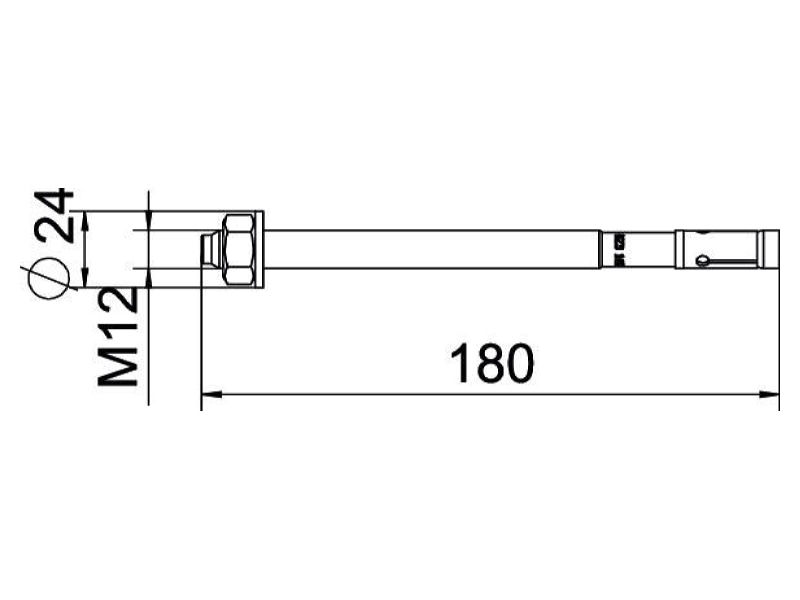

Dimensional drawing OBO BZ312x180 30 105 Anchor bolt with External thread
Dimensional drawing
