Anchor bolt with External thread 8x95mm BZ3 8x95/0-40A4
Source photo:
OBO
(fig. might be different or similar)

Anchor bolt with External thread 8x95mm BZ3 8x95/0-40A4

EAN/GTIN: 4012197357078
WEEE: DE 64419409
Manufacturer: OBO
Manufacturer no.: BZ3 8x95/0-40A4
Manufact.-SKU: 3498718
Customs tariff no.: 73181900
Order level:
(minimum)
50 pce
Similar top items: Show now & compare
408,21 EUR Price incl. tax. 19,00%
(for 50 pce)
plus shipping
Delivery time:
11 days [EN] Items to be procured that can be ordered (no central warehouse item) - live request to the central warehouse directly in the cart or click the link below the price >Quantity available?<
This article is per 50 pce orderable.
pce

We always deliver the latest available article version.

Note:
The installation of electrical devices may only be carried out by an approved electrician and, in the case of high-voltage systems (> = 400V and country-specific nominal power), only with the consent of the respective electricity network operator.

Details

Accessory
bought
Useful
Interesting

Bolt anchor BZ3 large washer BZ3 8x95/0-40A4 anchoring expansion anchor, anchor design external thread, fastening device nut, screw system external hexagon, material of the anchor stainless steel, surface protection anchor untreated, material of the sleeve stainless steel, surface protection sleeve untreated, thread type metric, thread dimension (metric) 8 , thread size (imperial) 5/16 inch, thread length 53mm, length 95mm, drill hole diameter 8mm, min. drill hole depth 55mm, pre-positioned installation, effective anchoring depth 35mm, max. clamping thickness 40mm, concrete type unbroken concrete, wrench size 13mm, number of nuts 1, number of washers 1, fireproof, fire protection class according to EN 13501-2 other, ETA earthquake rating C1 and C2, bolt anchor BZ3 for anchoring medium to heavy loads in cracked or non-cracked concrete. Suitable for high loads with small edge and center distances. To hit. European Technical Assessment ETA-19/0619, including characteristic values under fire exposure up to fire resistance period R 120. Proof of suitability for seismic effects, categories C1 and C2. Shock approval from the Federal Office for Civil Protection, Bern, Switzerland.

More product images:

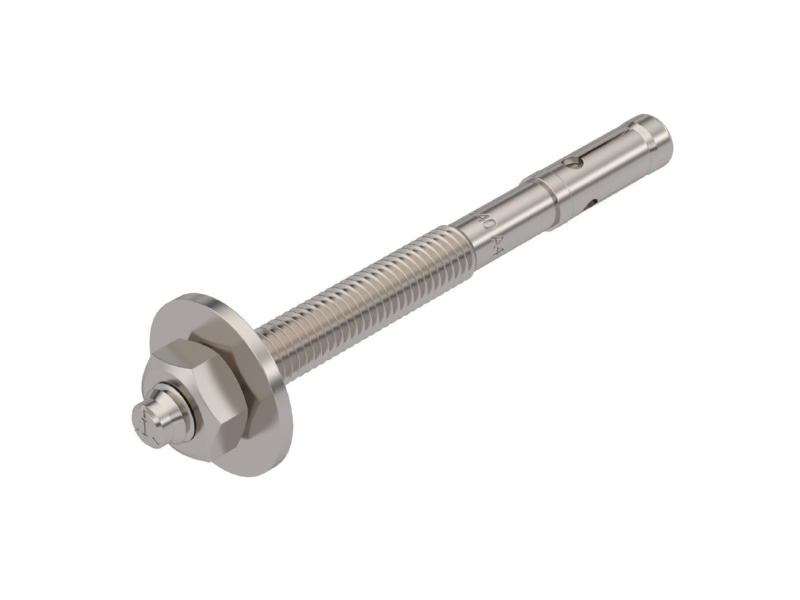

Product image OBO BZ3 8x95 0 40A4 Anchor bolt with External thread 8x95mm
Product image

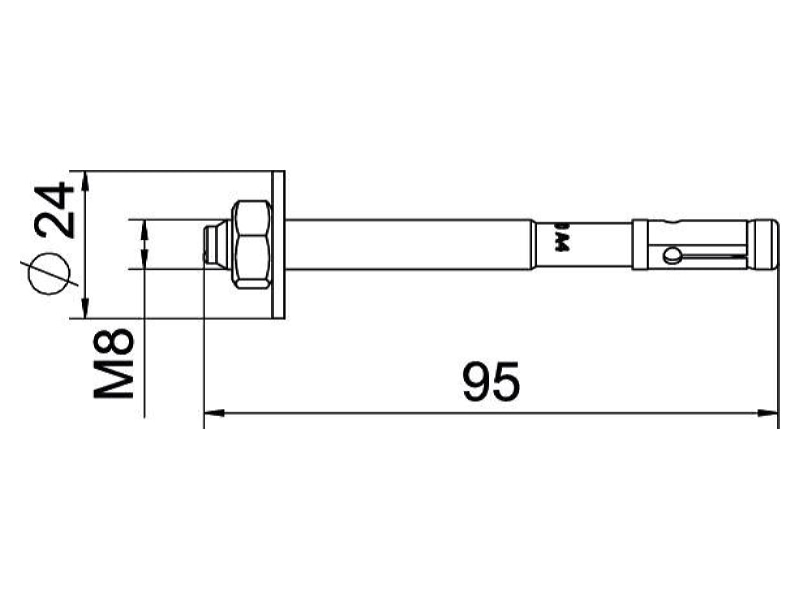

Dimensional drawing OBO BZ3 8x95 0 40A4 Anchor bolt with External thread 8x95mm
Dimensional drawing
