Anchor bolt with External thread 8x165mm BZ3 8x165/55-110
Source photo:
OBO
(fig. might be different or similar)

Anchor bolt with External thread 8x165mm BZ3 8x165/55-110

EAN/GTIN: 4012197357313
WEEE: DE 64419409
Manufacturer: OBO
Manufacturer no.: BZ3 8x165/55-110
Manufact.-SKU: 3498687
Customs tariff no.: 73181900
Order level:
(minimum)
50 pce
Similar top items: Show now & compare
220,65 EUR Price incl. tax. 19,00%
(for 50 pce)
plus shipping
Delivery time:
11 days [EN] Items to be procured that can be ordered (no central warehouse item) - live request to the central warehouse directly in the cart or click the link below the price >Quantity available?<
This article is per 50 pce orderable.
pce

We always deliver the latest available article version.

Note:
The installation of electrical devices may only be carried out by an approved electrician and, in the case of high-voltage systems (> = 400V and country-specific nominal power), only with the consent of the respective electricity network operator.

Details

bought
Useful
Interesting

Bolt anchor BZ3 large washer BZ3 8x165/55-110 Anchoring expansion anchor, anchor design external thread, fastening device nut, screw system external hexagon, anchor material steel, surface protection anchor galvanized/electrolytically galvanized, sleeve material steel, surface protection sleeve galvanized/electrolytically galvanized, thread type metric, thread size (metric) 8, thread size (imperial) 5/16 inch, thread length 123mm, length 165mm, drill hole diameter 8mm, pre-positioned installation, effective anchoring depth 45mm, max. clamping thickness 110mm, concrete type unbroken concrete, wrench size 13mm, number of nuts 1, number of washers 1 , fireproof, fire protection class according to EN 13501-2 other, ETA earthquake rating C1 and C2, bolt anchor BZ3 for anchoring medium to heavy loads in cracked or non-cracked concrete. Suitable for high loads with small edge and center distances. To hit. European Technical Assessment ETA-19/0619, including characteristic values under fire exposure up to fire resistance period R 120. Proof of suitability for seismic effects, categories C1 and C2. Shock approval from the Federal Office for Civil Protection, Bern, Switzerland.

More product images:

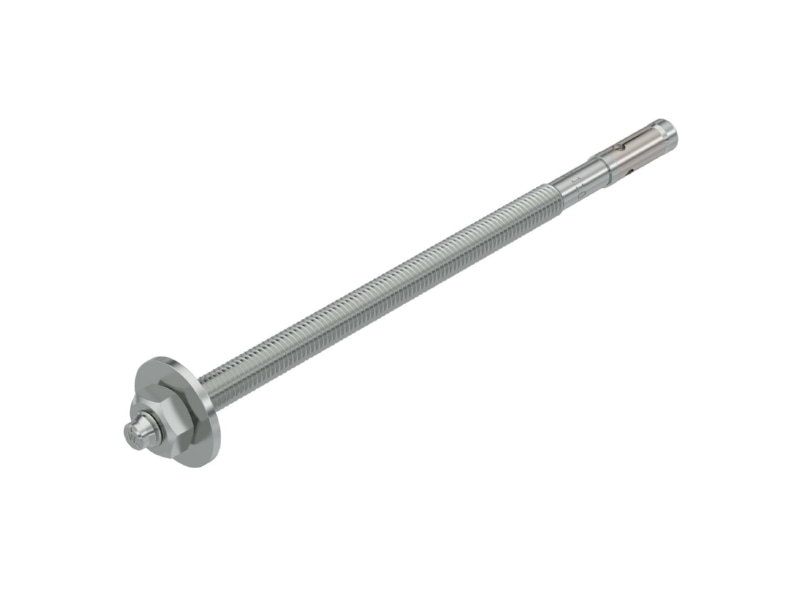

Product image OBO BZ3 8x165 55 110 Anchor bolt with External thread 8x165mm
Product image

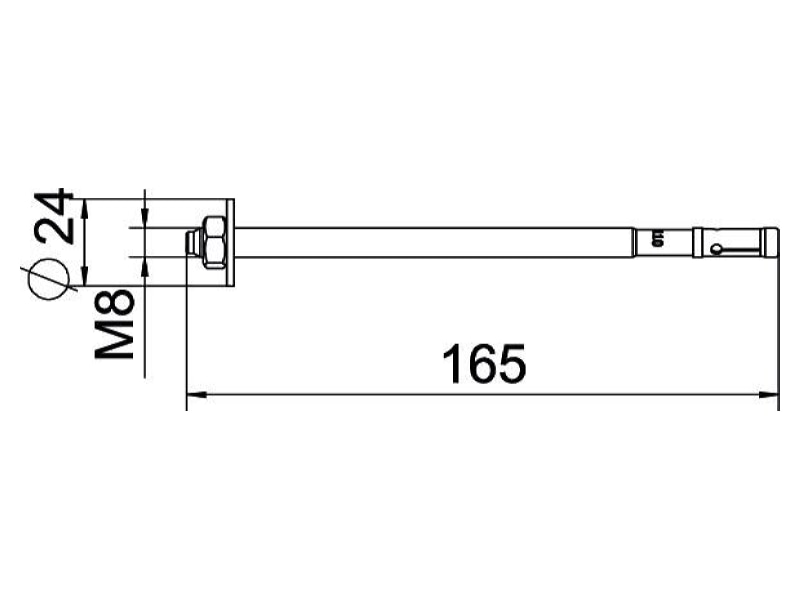

Dimensional drawing OBO BZ3 8x165 55 110 Anchor bolt with External thread 8x165mm
Dimensional drawing
