Downlight/spot/floodlight 440540371002
Source photo:
Lichtline
(fig. might be different or similar)

Downlight/spot/floodlight 440540371002

EAN/GTIN: 4260770230311
WEEE: DE 74965115
Manufacturer: Lichtline
Manufacturer no.: 440540371002
Customs tariff no.: 94054210
Similar top items: Show now & compare
135,52 EUR Price incl. tax. 19,00%
plus shipping
Delivery time:
11 days [EN] Items to be procured that can be ordered (no central warehouse item) - live request to the central warehouse directly in the cart or click the link below the price >Quantity available?<
pce

We always deliver the latest available article version.

Note:
The installation of electrical devices may only be carried out by an approved electrician and, in the case of high-voltage systems (> = 400V and country-specific nominal power), only with the consent of the respective electricity network operator.

Details

Accessory

Energy efficiency class of the light source according to EU regulation 2019/2015=D, Suitable for surface mounting=yes, Suitable for built-in mounting=no, Suitable for wall mounting=yes, Suitable for suspended mounting=yes, Suitable for ceiling mounting=yes, Suitable for traverse mounting=yes, Suitable for pedestal/floor mounting=yes, Suitable for clamp-mounting=yes, Adjustability=Swivelling, With movement sensor=no, With light sensor=no, Lamp type=LED exchangeable, With light source=yes, Suitable for number of light sources=1, Housing material=Aluminium, Surface protection=Powder coating, Housing colour=Anthracite, Material cover=Glass transparent, Voltage type=AC/DC, Nominal voltage=120..240 V, Nominal current=230 mA, Type of control gear=LED operating device current-controlled, With control gear=yes, Exchangeable control gear=no, Dimming 1-10 V=no, Dimming DALI-2=no, Dimming DALI=no, Dimming phase cut-off=no, Dimming phase cut-on=no, Dimming with push-button=no, No dim function=yes, Reflector=None, Light distributor=Refractor lens, Light sharing=Symmetric, Beam angle=Wide beam 41-80°, Light outlet=Direct, Rated life time L70/B50 at 25 °C=80000 h, Lumen maintenance at median useful life of 50,000 h at 25 °C ambient (tq)=90 %, Lumen maintenance at median useful life of 100,000 h at 25 °C ambient (tq)=80 %, Failure rate at median useful life of 50,000 h at 25 °C ambient (tq)=5 %, Failure rate at median useful life of 100,000 h at 25 °C ambient (tq)=5 %, Constant light output (CLO)=no, Degree of protection (IP)=IP66, Impact strength=IK08, Protection class=I, Rated ambient temperature according to IEC 62722-2-1=-40..50 °C, Max. system power=50 W, Colour of light=White, Colour temperature=4000 K, Colour rendering index CRI=80-89, Luminous flux=7200 lm, Rated luminous flux according to IEC 62722-2-1=7200 lm, Luminous intensity=7243 cd, Power factor=0,95, Colour of light adjustable=No, Luminous flux adjustable=No, Beam angle adjustable=No, Width=253 mm, Height/depth=63 mm, Length=255 mm, Type of wiring=Ending, Number of poles=3, Conductor cross section=1 mm², Connection type=Other, Luminaire with limited surface temperature, sign ´´D¿ according to EN 60598-2-24=yes, Max. number of luminaires per miniature circuit breaker B16 (MCB)=22, Max. number of luminaires per miniature circuit breaker C16 (MCB)=37, Luminaire efficacy=144 lm/W, Photobiological safety according to EN 62471=RG1, Suitable for workplace according to EN 12464-1=yes, Covering of the luminaire with thermally insulating material possible=no, Colour consistency (McAdam ellipse)=SDCM5, Unified Glare Ratio (UGR)=20

More product images:

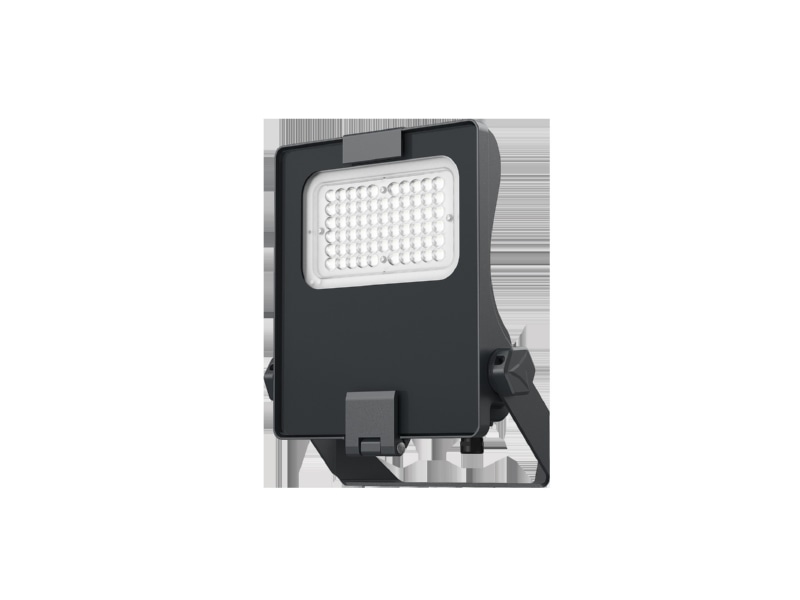

Product image Lichtline 440540371002 Downlight spot floodlight
Product image

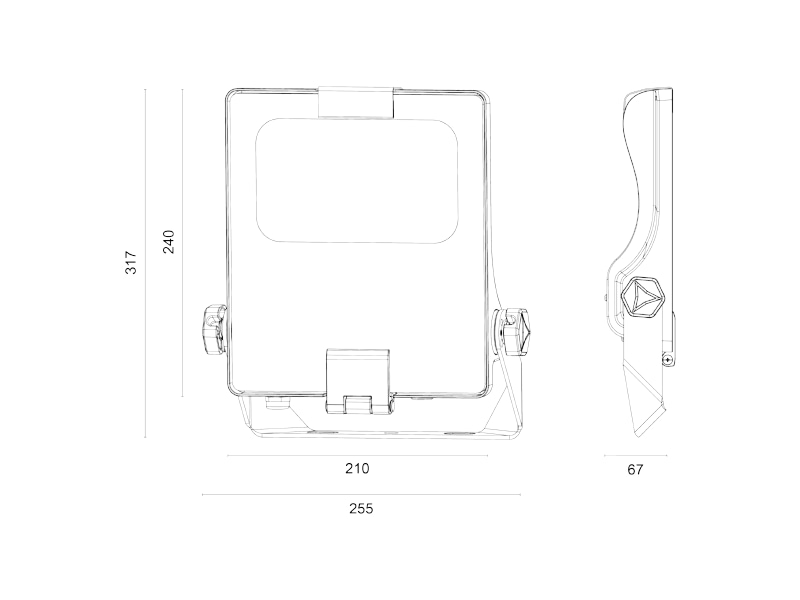

Dimensional drawing Lichtline 440540371002 Downlight spot floodlight
Dimensional drawing
