LED high bay spotlight 865, 110 degrees, HBP75W865110DEGI66PS
Source photo:
LEDVANCE
(fig. might be different or similar)

LED high bay spotlight 865, 110 degrees, HBP75W865110DEGI66PS

EAN/GTIN: 4058075844353
WEEE: DE 30638372
Manufacturer: LEDVANCE
Manufacturer no.: HBP75W865110DEGI66PS
Manufact.-SKU: 4058075844353
Customs tariff no.: 94051190
Illuminants: included
Similar top items: Show now & compare
154,64 EUR Price incl. tax. 19,00%
plus shipping
Delivery time:
11 days [EN] Items to be procured that can be ordered (no central warehouse item) - live request to the central warehouse directly in the cart or click the link below the price >Quantity available?<
pce

We always deliver the latest available article version.

Note:
The installation of electrical devices may only be carried out by an approved electrician and, in the case of high-voltage systems (> = 400V and country-specific nominal power), only with the consent of the respective electricity network operator.

Details

Accessory

Lamp type = LED not exchangeable, With light source = yes, Suitable for auxiliary lamp = no, Lamp holder = None, Housing material = Aluminium, Housing colour = Black, Voltage type = AC, Nominal voltage = 220..240 V, Type of control gear = Electronic ballast, Exchangeable control gear = no, With control gear = yes, Dimming 0-10 V = yes, Dimming 1-10 V = yes, Dimming DALI = no, Dimming DMX = no, Dimming DSI = no, Dimming phase cut-off = no, Dimming phase cut-on = no, Dimming potentiometer (integrated) = no, Dimming LineSwitch = no, Dimming manufacturer΄s proprietary system = no, Dimming mains voltage modulation = no, Dimming programmable = no, Dimming RF = no, Dimming Sine Wave Reduction = no, Dimming Touch and Dim = no, Dimming Zigbee = no, Dimming with push-button = no, No dim function = no, Light distributor = None, Light sharing = Symmetric, Reflector = None, Energy efficiency class of the light source according to EU regulation 2019/2015 = Not required, Colour consistency (McAdam ellipse) = SDCM4, Rated life time L70/B50 at 25 °C = 120000 h, Degree of protection (IP) = IP66, Degree of protection (NEMA) = Other, Impact strength = IK10, Ball-proof = no, Protection class = I, Luminaire with limited surface temperature, sign ΄΄DΏ according to EN 60598-2-24 = yes, Rated ambient temperature according to IEC 62722-2-1 = -30..50 °C, Emergency power supply integrated = no, Suitable for emergency lighting = no, Max. system power = 75 W / 53 W, Rated luminous flux according to IEC 62722-2-1 = 13350 lm, Luminaire efficacy = 178 lm/W, Colour temperature = 6500 K, Colour rendering index CRI = 80-89, Photobiological safety according to EN 62471 = RG1, Power factor = 0,95, Constant light output (CLO) = no, Colour of light adjustable = No, Beam angle adjustable = No, Luminous flux adjustable = 13350 lm / 9434 lm, Height/depth = 161 mm, Length = 280 mm, Outer diameter = 280 mm, Type of wiring = Ending, Number of poles = 3, Conductor cross section = 1 mm², Connection type = Other, With protective cover = yes, Max. number of luminaires per miniature circuit breaker B16 (MCB) = 15, Operation by Bluetooth = no, Max. number of luminaires per miniature circuit breaker C16 (MCB) = 19

More product images:

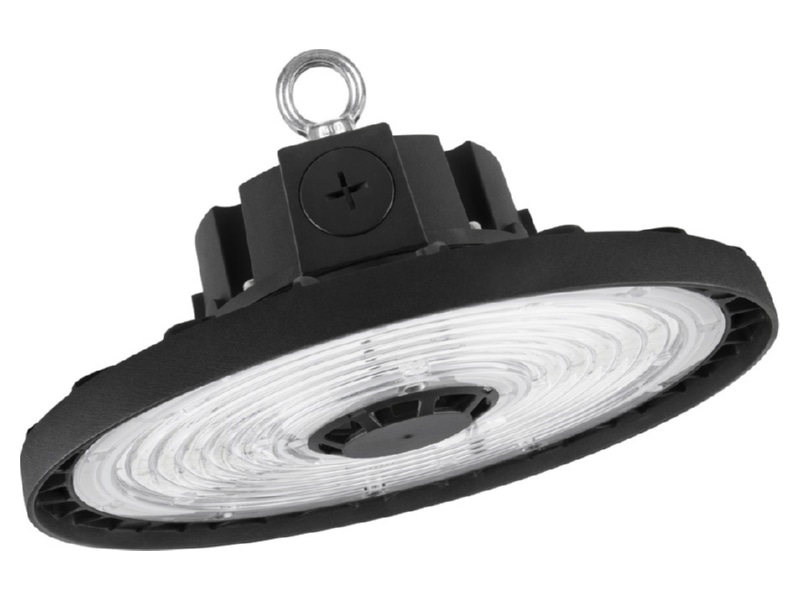

Product image Ledvance HBP75W865110DEGI66PS LED high bay spotlight 865  110 degrees
Product image

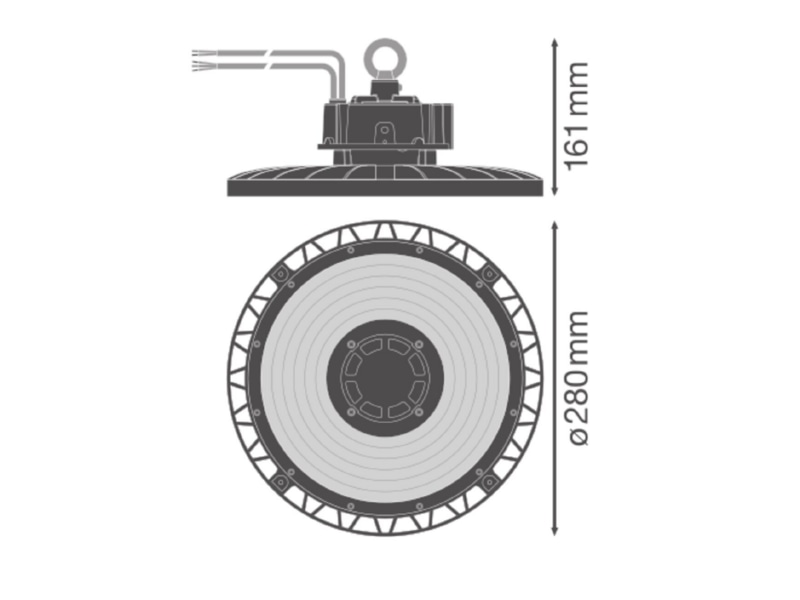

Dimensional drawing Ledvance HBP75W865110DEGI66PS LED high bay spotlight 865  110 degrees
Dimensional drawing

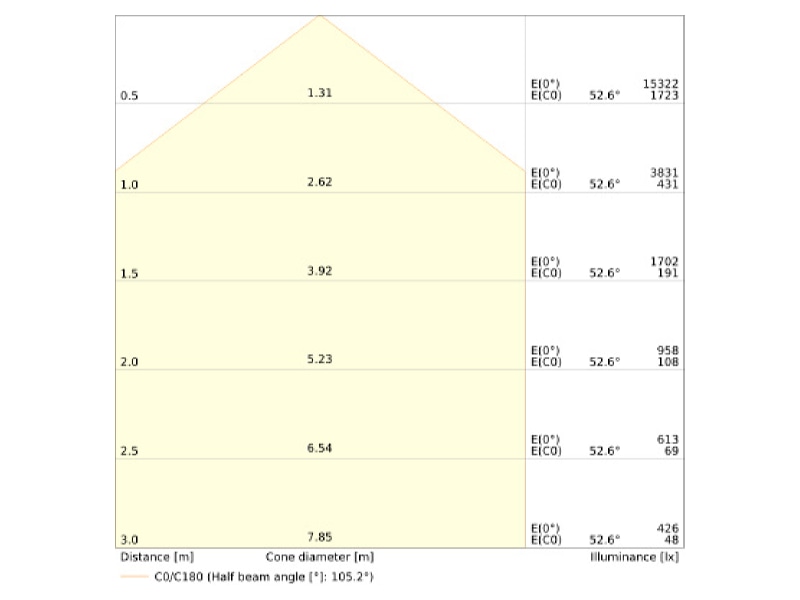

Cone diagram 1 Ledvance HBP75W865110DEGI66PS LED high bay spotlight 865  110 degrees
Cone diagram 1
Cone diagram 2 Ledvance HBP75W865110DEGI66PS LED high bay spotlight 865  110 degrees
Cone diagram 2
