Ceiling-/wall luminaire LNSF600P18W830 IP44
Source photo:
LEDVANCE
(fig. might be different or similar)

Ceiling-/wall luminaire LNSF600P18W830 IP44

EAN/GTIN: 4058075733152
WEEE: DE 30638372
Manufacturer: LEDVANCE
Manufacturer no.: LNSF600P18W830 IP44
Manufact.-SKU: 4058075733152
Customs tariff no.: 94051190
Similar top items: Show now & compare
89,54 EUR Price incl. tax. 19,00%
plus shipping
Delivery time:
11 days [EN] Items to be procured that can be ordered (no central warehouse item) - live request to the central warehouse directly in the cart or click the link below the price >Quantity available?<
pce

We always deliver the latest available article version.

Note:
The installation of electrical devices may only be carried out by an approved electrician and, in the case of high-voltage systems (> = 400V and country-specific nominal power), only with the consent of the respective electricity network operator.

Details

Accessory
bought
Useful
Interesting

LED surface-mounted light 830 LNSF600P18W830 IP44 Suitable for wall mounting, Suitable for pendant suspension, Suitable for ceiling mounting, Suitable for surface mounting, Suitable for number of lamps 0, Material of the housing: steel, surface protection of the housing: powder-coated, housing color: white, material of the cover: opal plastic, matt finish of the grid, Voltage type AC, nominal voltage 220 ... 240V, nominal current 90 ... 90mA, control gear ECG, with control gear, replaceable control gear, without dimming function, light distributor diffuser lens/optics/panel, beam angle extremely wide beam >80°, color consistency (McAdam ellipse ) SDCM3, direct light emission, rated service life L70/B50 at 25 °C 70,000h, rated service life L80/B10 at 25 °C 70,000h, rated service life L90/B10 at 25 °C 51,000h, max. number of lights, circuit breaker B16 49, max. number of lights Circuit breaker C16 49, protection class (IP) IP44, impact resistance IK08, protection class I, rated ambient temperature according to IEC62722-2-1 -20 ... 40°C, glow wire test according to IEC 60695-2-11 650 °C - 30 s, max. system power 18W, luminaire luminous efficacy 125lm/W, rated luminous flux according to IEC 62722-2-1 2250lm, light color white, color temperature 3000 ... 3000K, color rendering index CRI 80-89, power factor 0.9, width 166mm, height/depth 63mm, length 608mm, Art of wiring with through wiring, number of poles 3, connection type plug-in terminal, photobiological safety according to EN 62471 RG0, color temperature adjustable no, luminous flux adjustable no, beam angle adjustable no, IFTTT support available, LED bulbs not replaceable, with bulbs, robust IP44 luminaires with direct light emission and integrated driver for surface applications, up to 137 lm/W. Product features: Surface-mounted light with direct light emission. Protection class: IP44. Shock resistance: IK08. Available in 3 different lengths: 600mm, 1200mm and 1500mm. High luminous efficiency: up to 137 lm/W. Through-wiring cable already installed. Lifespan (L80/B10): 70,000 h (at 25 °C). White painted steel housing (similar to RAL: 9003). Diffuser material: UV-stable polycarbonate. End caps (made of polycarbonate) screwed to the housing. Product advantages: Low maintenance and low operating costs. Protection against cover falling, theft and vandalism with security screws. Cable entry at the back of the light and at the end caps for easy electrical connection. Easy and quick installation. Low-flicker light thanks to a special electronic ballast. Areas of application: Efficient replacement for traditional T8 and T5 light strips. Public buildings. General lighting. Libraries, schools. Technical equipment: Equipped with through-wiring cables and plugs. Including tool-free cable strain relief.

More product images:

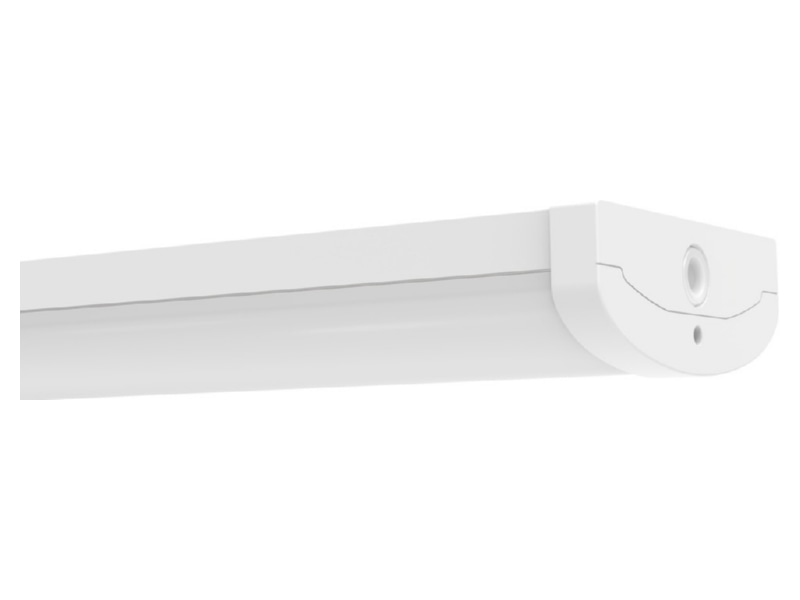

Product image Ledvance LNSF600P18W830 IP44 Ceiling  wall luminaire
Product image

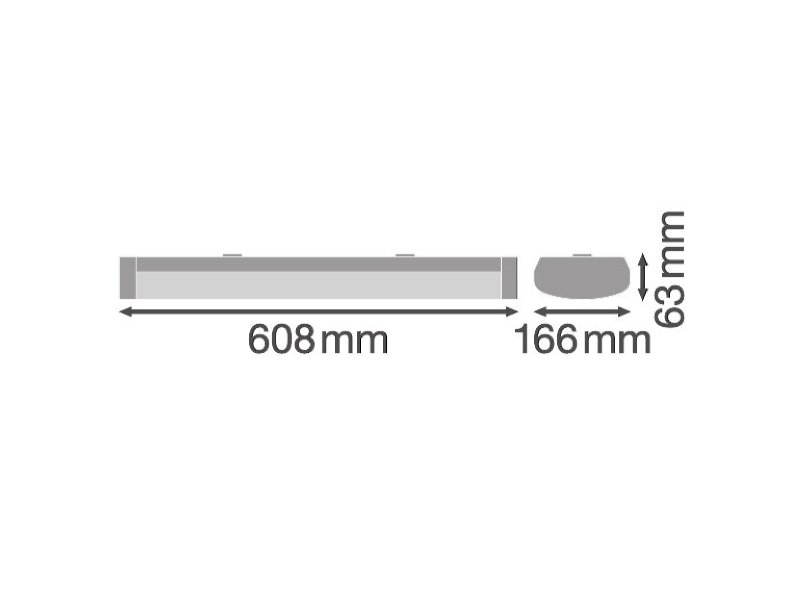

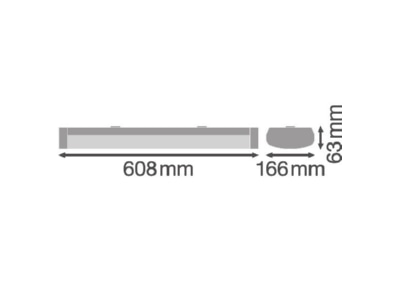

Dimensional drawing Ledvance LNSF600P18W830 IP44 Ceiling  wall luminaire
Dimensional drawing

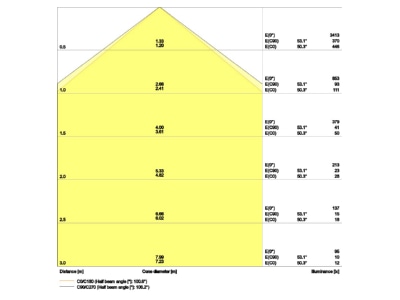

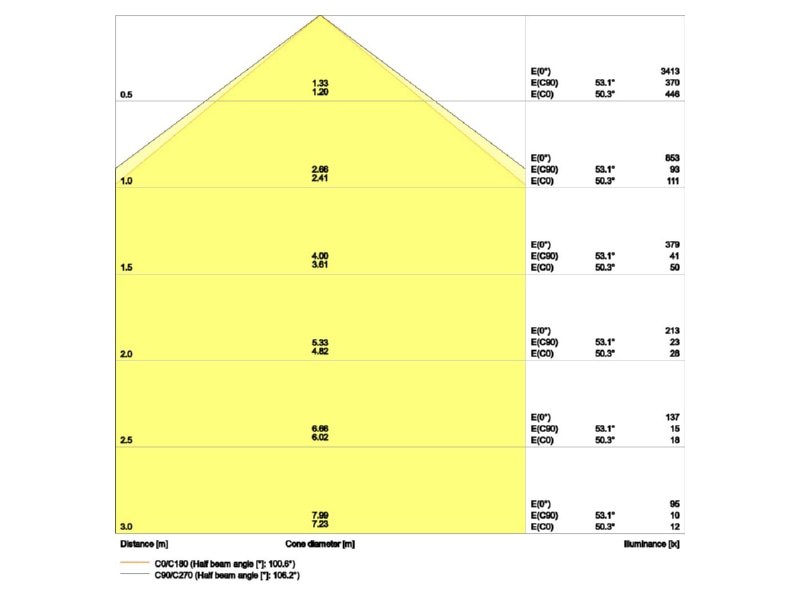

Cone diagram Ledvance LNSF600P18W830 IP44 Ceiling  wall luminaire
Cone diagram
