Photovoltaics roof-/facade fastener 2001928

EAN/GTIN: 4251786206964
WEEE: DE 96427492
Manufacturer: K2 Systems
Manufacturer no.: 2001928
Customs tariff no.: 76109090
Similar top items: Show now & compare
7,96 EUR Price incl. tax. 19,00%
plus shipping
Delivery time:
11 days [EN] Items to be procured that can be ordered (no central warehouse item) - live request to the central warehouse directly in the cart or click the link below the price >Quantity available?<
pce

We always deliver the latest available article version.

Note:
The installation of electrical devices may only be carried out by an approved electrician and, in the case of high-voltage systems (> = 400V and country-specific nominal power), only with the consent of the respective electricity network operator.

Details

Accessory
bought
Useful
Interesting

Roof hook SingleHook 1.1 2001928 Material aluminum, surface protection untreated, suitable for pitched roof fastening, roofing roof tile, with fastening material, with mounting plate, width of fastening plate 100mm, length of fastening plate 106.5mm, height of fastening plate 13.2mm, width of the hook 35mm, material thickness of hook 8.5mm, Roof penetration necessary, screw anchoring, for attaching the K2 system components to roofs with tile covering. Bracket with elongated hole for mounting and height adjustment of the SingleRail. Includes hammer head screw and locking nut for SingleRail assembly. Material: aluminum EN AW-6063 T66

More product images:

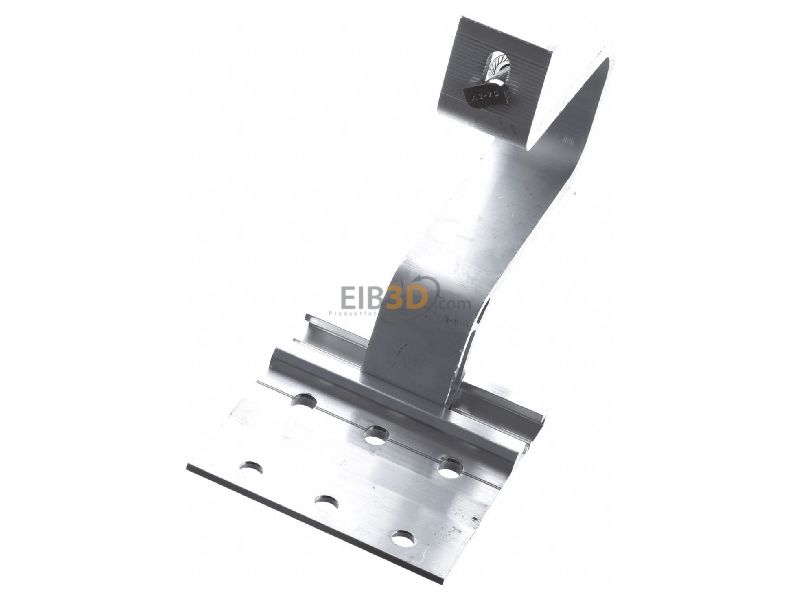

Front view K2 Systems 2001928 Photovoltaics roof-/facade fastener
Front view

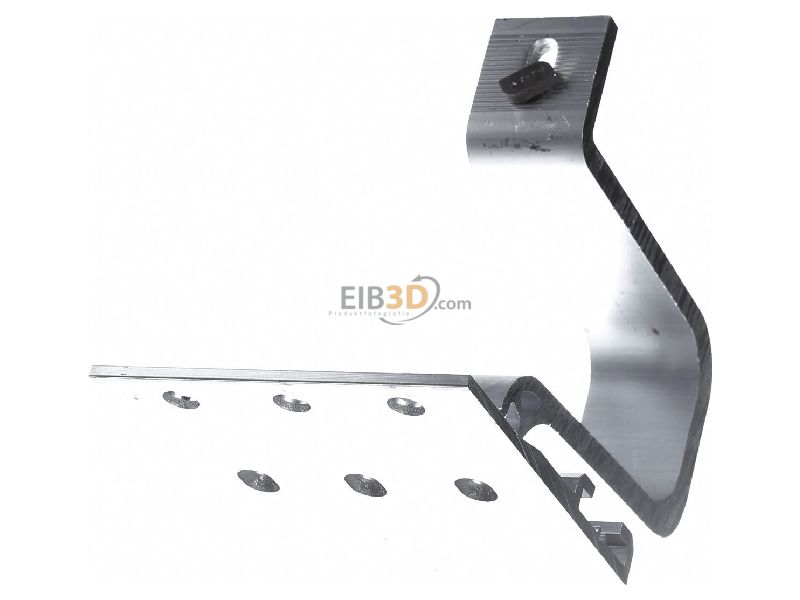

View on the left K2 Systems 2001928 Photovoltaics roof-/facade fastener
View on the left

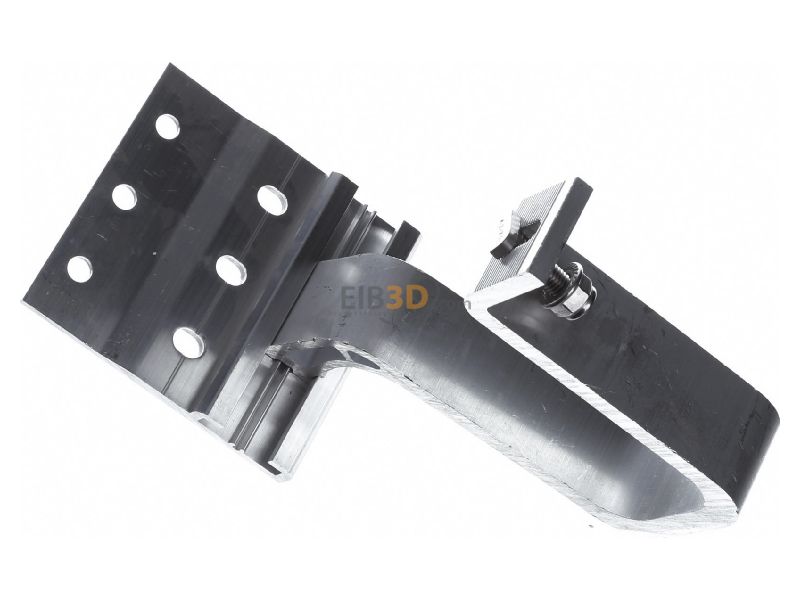

View on the right K2 Systems 2001928 Photovoltaics roof-/facade fastener
View on the right

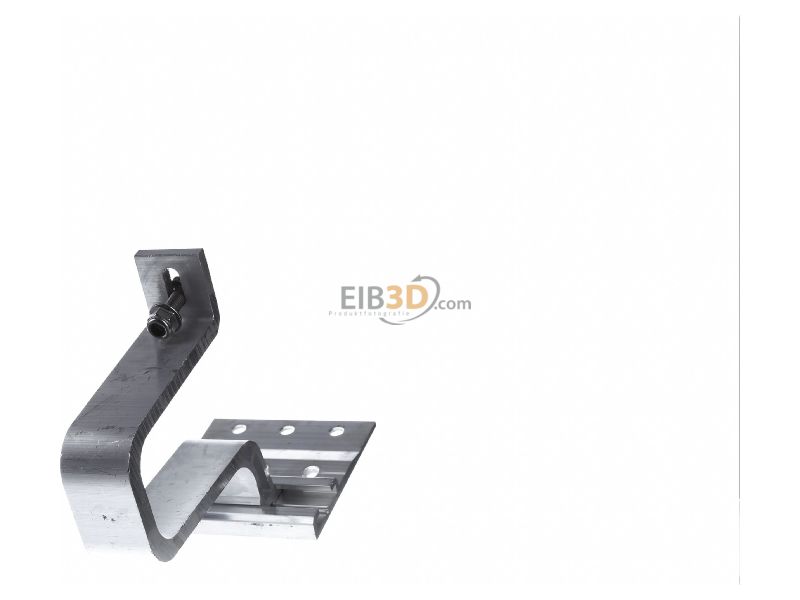

Back view K2 Systems 2001928 Photovoltaics roof-/facade fastener
Back view

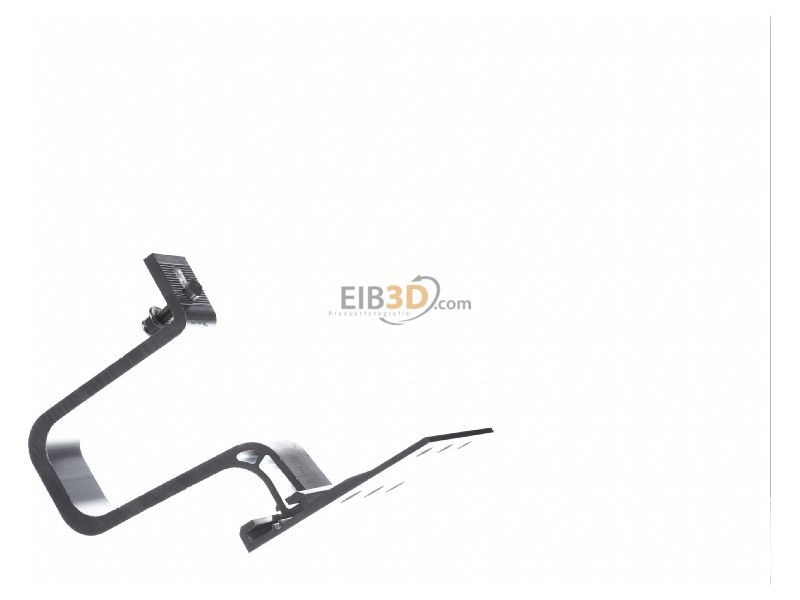

View up front K2 Systems 2001928 Photovoltaics roof-/facade fastener
View up front

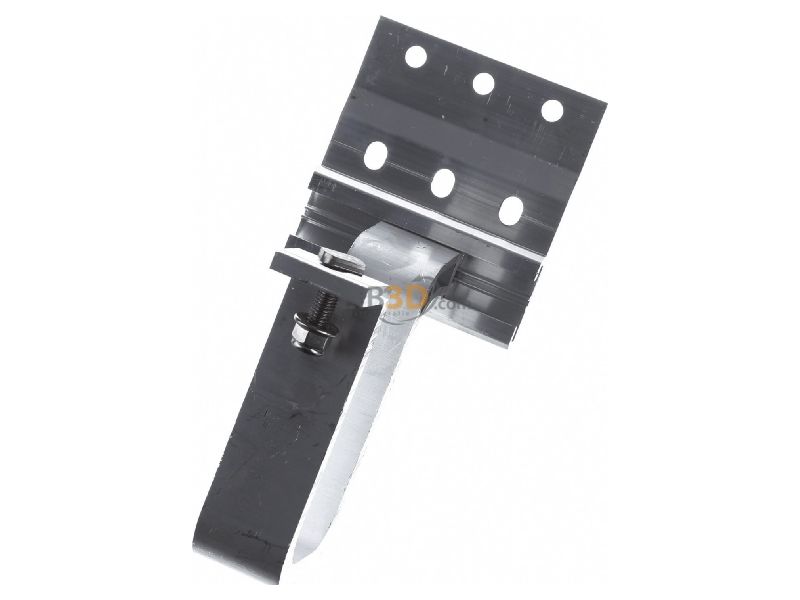

View top left K2 Systems 2001928 Photovoltaics roof-/facade fastener
View top left

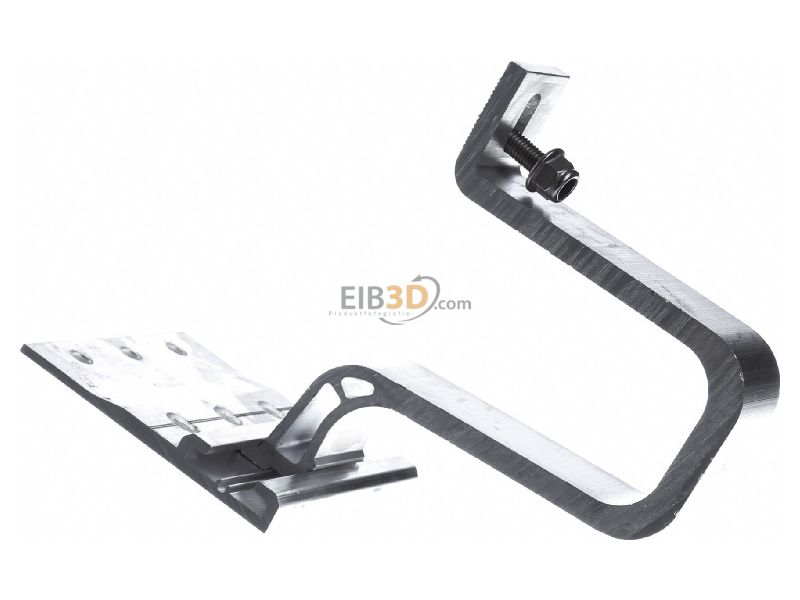

View top right K2 Systems 2001928 Photovoltaics roof-/facade fastener
View top right

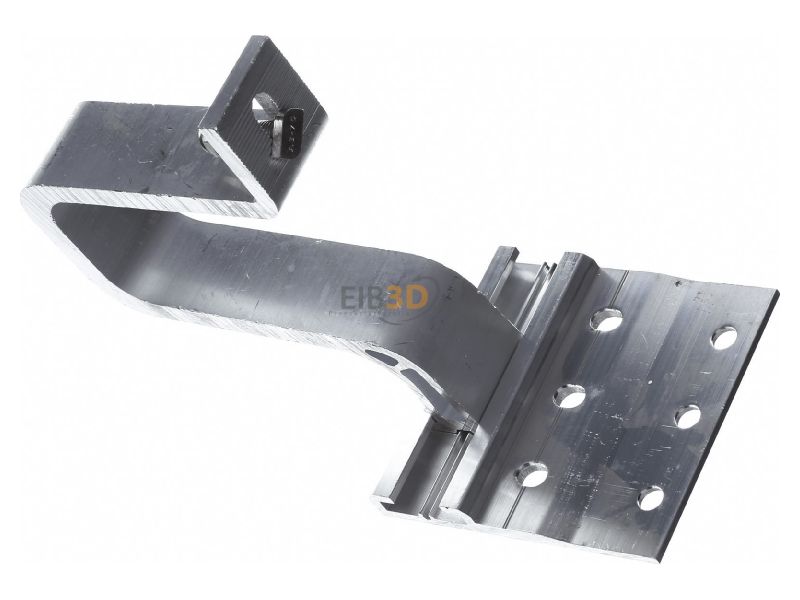

Top rear view K2 Systems 2001928 Photovoltaics roof-/facade fastener
Top rear view
Product image K2 Systems 2001928 Photovoltaics roof  facade fastener
Product image
Dimensional drawing K2 Systems 2001928 Photovoltaics roof  facade fastener
Dimensional drawing
